Product Details
Place of Origin: China
Brand Name: Jiayu Mechatronic
Certification: CE
Model Number: EPS2408-AD
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiate
Packaging Details: carton
Delivery Time: 3 days
Payment Terms: L/C, T/T
Supply Ability: 5000pcs/month
Power Consumption: |
100W |
Operating Temperature: |
-10℃~+55℃ |
Drive Dimension: |
150mm*72mm*29mm |
Driver Rated Current: |
8A |
Application: |
Swing Gate, Flap Gate |
Motor Protection Class: |
IP54 |
Type: |
DC Servo Driver |
Power Supply: |
DC24V |
Power Consumption: |
100W |
Operating Temperature: |
-10℃~+55℃ |
Drive Dimension: |
150mm*72mm*29mm |
Driver Rated Current: |
8A |
Application: |
Swing Gate, Flap Gate |
Motor Protection Class: |
IP54 |
Type: |
DC Servo Driver |
Power Supply: |
DC24V |

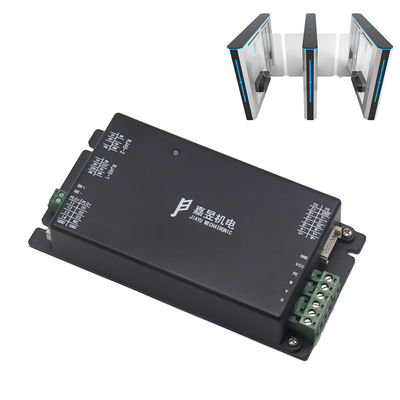

Speed Gate Drive is a DC servo driver suitable for swing gate and flap gate. It has a motor protection class of IP54 and a drive dimension of 150mm*72mm*29mm. This product is powered by a DC24V voltage and has an input voltage range of DC 15~30V. It is designed to be used with RS232, RS485, and CAN communication protocols, and also provides Modbus communication protocol. This makes it suitable for use with third-party controllers. Furthermore, it is designed to be easy to install and use, and provides a reliable and safe driving performance.
Parameters | Value |
---|---|
Power Consumption | 100W |
Operating Temperature | -10℃~+55℃ |
Communication Interface | RS485, RS232, CAN |
Drive Dimension | 150mm*72mm*29mm |
Motor Protection Class | IP54 |
Input Voltage | DC 15 ~ 30V |
Driver Rated Current | 8A |
Driver Peak Current | 24A |
Power Supply | DC24V |
Application | Swing Gate, Flap Gate |
Type | DC Servo Driver |
Jiayu Mechatronic's Speed Gate Drive, model EPS2408-AD, is designed for efficient and secure movement control in a variety of applications. This DC servo driver, made in China, features an integrated industry-leading channel movement control logic and real-time detection of the status of the movement to meet the requirements of safe passage. It has an input voltage of DC 15-30V, communication of RS232/RS485/CAN/Ethernet, output current of ≤7.5A, speed of ≤ 2000rpm, and position control accuracy of 0.1°. The power supply is DC24V and it has a dimension of 150mm*72mm*29mm. It also has an operating temperature range of -10℃~+55℃ and power consumption of 100W.
Brand Name: Jiayu Mechatronic
Model Number: EPS2408-AD
Place of Origin: China
Type: DC Servo Driver
Motor Protection Class: IP54
Driver Rated Current: 8A
Application: Swing Gate, Flap Gate
Communication Interface: RS485, RS232, CAN
Speed Gate Drive designed by Jiayu Mechatronic is a DC servo driver with IP54 motor protection class, 8A driver rated current and RS485, RS232, CAN communication interface. It is suitable for swing gate and flap gate and provides hardware protection low voltage, over voltage, over current, over heating. The driver is also with Feedback Incremental Encoder with HALL.
Speed Gate Drive offers a comprehensive technical support and service package in order to ensure the highest possible level of customer satisfaction. Our technical support team is available 24/7 and is able to help with any technical queries that may arise.
We will provide online customer support via email and telephone, as well as onsite technical support when necessary. Our team of experienced engineers are able to diagnose and resolve a wide range of technical issues quickly and efficiently in order to minimise disruption to the customer's operations.
We also offer regular maintenance services such as software and hardware updates, firmware upgrades and system checks. This helps to ensure that the customer's Speed Gate Drive system is always running at its optimum performance.
If you have any questions or queries about our technical support and service package, please do not hesitate to contact us.
