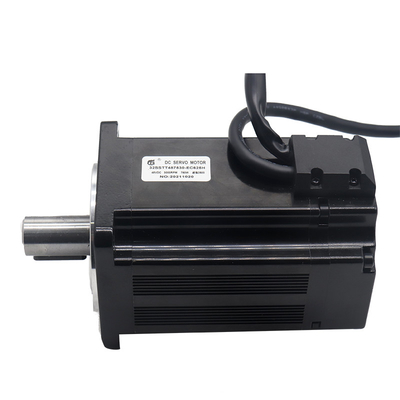

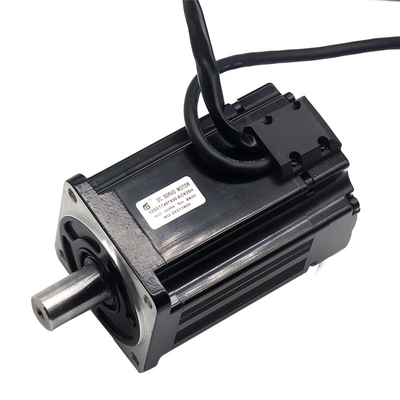

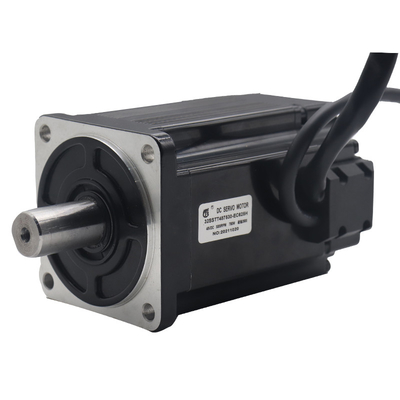

Round Shaft 48v Dc Servo Motor Rated Current 20a For Agv Robot

Product Description:

DC Servo Motor is a kind of motor with great performance. It is designed with protection level IP65, rated torque 2.4nm, round shaft, incremental encoder, rated speed 3000rpm and without brake. In addition, it also features working temperature from -25℃ to 55℃ and rated current 20A. DC Servo Motor is a great choice for your automation projects since it provides high torque and speed, and is reliable and durable.

Features:

• Product Name: DC Servo Motor
• Control: Open/Closed Loop
• Shaft: Round
• Protection: IP65
• Encoder: Incremental Encoder
• Rated Speed: 3000rpm
• Working temperature: -25℃~55℃

Technical Parameters:

Applications:

Jiayu Mechatronic's EBS80F-750C-30DG5Z-BEEL-ST-00 DC Servo Motor is an advanced motor solution designed to meet the highest standard of precision and performance. With its high power output of 750W and peak torque of 4.8nm, it is ideal for a wide range of industrial applications. It is also highly reliable, boasting a working temperature range of -25℃~55℃, a DC48V power supply, and features a flange mounting design and Class B/Class F insulation. Additionally, the motor is equipped with an incremental encoder for accurate speed and position feedback. All of these features make the EBS80F-750C-30DG5Z-BEEL-ST-00 DC Servo Motor an ideal choice for precise control in industries such as robotics, logistic sorting and medical devices.

Customization:

Jiayu Mechatronic DC Servo Motor is a custom-made product with the following attributes:

• Brand Name: Jiayu Mechatronic
• Model Number: EBS80F-750C-30DG5Z-BEEL-ST-00
• Place of Origin: China
• Mounting: Flange
• Weight: 1.3kg
• Shaft: Round
• Insulation: Class B/Class F
• Rated Torque: 2.4nm
• Rated current: 20A
• Rated speed: 3000rpm
• Incremental encoder

Support and Services:

DC Servo Motor technical support and services include:

• Installation and Setup Assistance
• On-Demand Troubleshooting
• Software and Firmware Updates
• Replacement Parts and Components
• On-site Maintenance and Repair
• Regularly Scheduled Maintenance
• Extended Warranty and Repair Programs

FAQ:
