24-80v Power Input Dc Servo Drive Support Rs485 Canopen Ethercat For Robotic

Product Details

Place of Origin: China

Brand Name: Jiayu Mechatronic

Model Number: L11-10630

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiate

Packaging Details: carton

Delivery Time: 7 working days

Payment Terms: L/C, T/T

Supply Ability: 5000pcs/month

Get Best Price
Highlight:

80v dc servo drive

,

rs485 dc servo drive

,

24Vdc servo motor drive

Drive Type:
DC Servo Drive
Communication Interface:
RS485/CANopen/EtherCAT
Speed Range:
3000RPM
Motor Type:
DC Servo Driver
Encoder Type:
Incremental Encoder
Weight:
0.5kg
Rated Current:
30A
Hardware Protection:
Under-voltage, Over-voltage, Over-current, Over-temperature Protection
Drive Type:
DC Servo Drive
Communication Interface:
RS485/CANopen/EtherCAT
Speed Range:
3000RPM
Motor Type:
DC Servo Driver
Encoder Type:
Incremental Encoder
Weight:
0.5kg
Rated Current:
30A
Hardware Protection:
Under-voltage, Over-voltage, Over-current, Over-temperature Protection
24-80v Power Input Dc Servo Drive Support Rs485 Canopen Ethercat For Robotic

Product Description:

DC Servo Drive is a compact and lightweight product that weighs only 0.5kg and measures 174.5*97.5*28.8mm. It features an IP20 protection level for reliable performance in harsh environments. This drive offers pulse input of 5V differential input from 0 to 500KHz and 24V single-ended input from 0 to 200KHz. It also supports Modbus serial communication protocol (RS485), RS485+RS232+CANopen, as well as support for incremental and absolutely encoder servo motor. This DC servo drive is suitable for applications in various industries, such as factory automation, automotive, robotics and more.

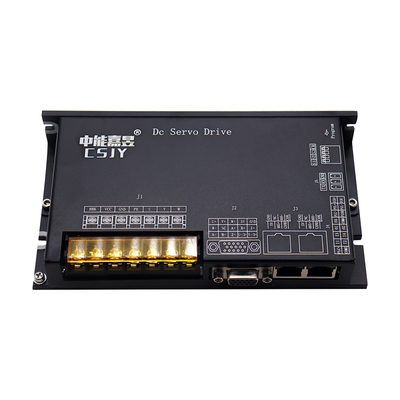

24-80v Power Input Dc Servo Drive Support Rs485 Canopen Ethercat For Robotic 024-80v Power Input Dc Servo Drive Support Rs485 Canopen Ethercat For Robotic 1

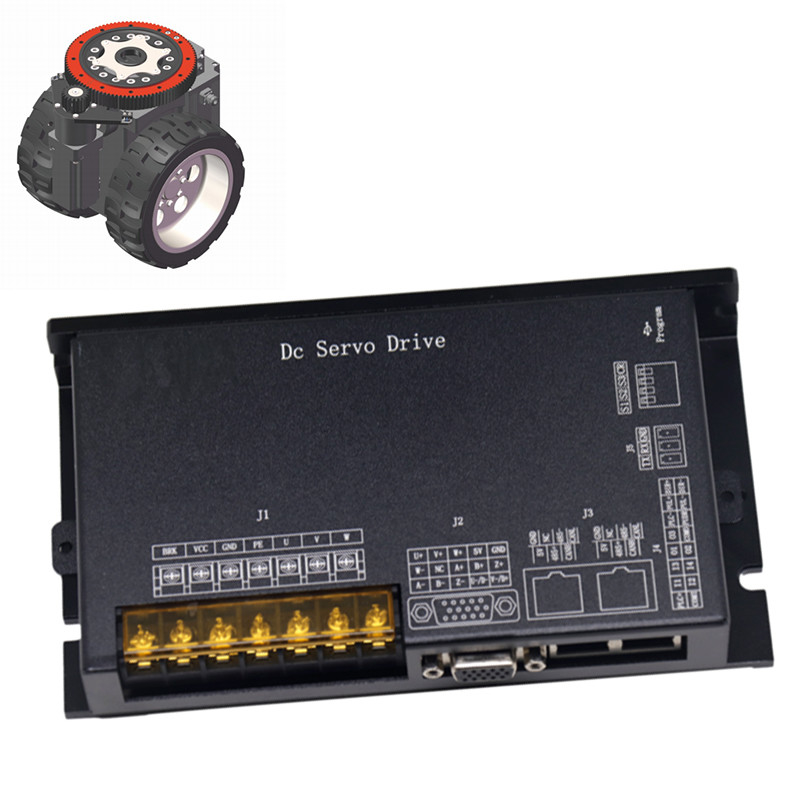

24-80v Power Input Dc Servo Drive Support Rs485 Canopen Ethercat For Robotic 2

 Features:

  • Product Name: DC Servo Drive
  • Speed Range: 3000RPM
  • Ambient Temperature: -20℃-50℃
  • Size: 174.5*97.5*28.8mm
  • Pulse input: 5V Differential Input 0 To 500 KHz; 24V Single-ended Input 0 To 200 KHz
  • Weight: 0.5kg
  • Use MagicServo for parameter modification and monitoring and debugging
  • Suitable for servo motor max 2.5kw
  • 24~80V DC supply voltage


Technical Parameters:

Parameter Value
Communication Interface RS485/RS232/CANopen/EtherCAT
Speed Range 3000RPM
Drive Type DC Servo Drive
Size 174.5*97.5*28.8mm
Protection Level IP20
Pulse Input 5V Differential Input 0 To 500 KHz; 24V Single-ended Input 0 To 200 KHz
Motor Type DC Servo Driver
Rated Current 30A
Weight 0.5kg
Encoder Type Incremental Encoder
Control Mode Support position control, speed control, torque control and single-axis control modes
Encoder Type Support incremental and absolutely encoder servo motor


Applications:

Jiayu Mechatronic's DC Servo Drive L11-10630 is the latest innovation in motion control technology. Offering 24~80V power supply and featuring a variety of control modes (including position, speed, torque and single-axis control) and communication protocols (RS485+RS232+CANopen), this drive is designed for high-performance applications. With a rated current of 30A, it offers reliable and efficient motion control solutions in a wide range of operating environments, from -20℃ to 50℃. The IP20 protection level ensures the safety of the system, and the ultra-lightweight design (only 0.5kg) makes it easy to install and maintain.

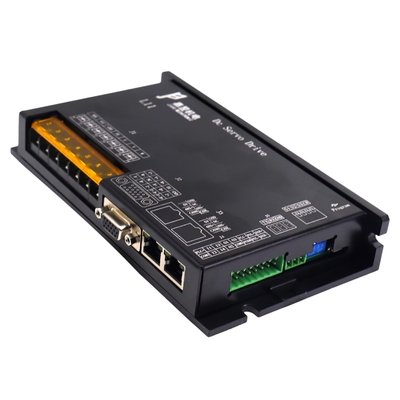

24-80v Power Input Dc Servo Drive Support Rs485 Canopen Ethercat For Robotic 3

Customization:

DC Servo Drive – Jiayu Mechatronic L11-10630
Product Features:
  • Brand Name: Jiayu Mechatronic
  • Model Number: L11-10630
  • Place of Origin: China
  • Protection Level: IP20
  • Motor Type: DC Servo Driver
  • Drive Type: DC Servo Drive
  • Size: 174.5*97.5*28.8mm
  • Speed Range: 3000RPM
  • Adaptation to 48V DC servo motors from 500w to 750w, supporting incremental
  • Support incremental and absolutely encoder servo motor
  • Suitable for servo motor max 750w


Support and Services:

DC Servo Drive Technical Support and Services

We provide comprehensive technical support and services for our DC Servo Drive products. Our goal is to ensure that our customers are equipped with the information and resources they need to make the most out of their DC Servo Drive products.

Technical Support

Our technical support team is knowledgeable and experienced in all aspects of DC Servo Drive products. We are available to answer any questions or concerns our customers may have. We also provide software updates and product bulletins to keep our customers up to date with the latest developments.

Services

We offer a variety of services related to DC Servo Drive products, including installation, maintenance, and repair. Our experienced technicians can ensure that your DC Servo Drive products are running smoothly and efficiently. We also provide training and education services to help our customers become familiar with the operation and maintenance of their DC Servo Drive products.

24-80v Power Input Dc Servo Drive Support Rs485 Canopen Ethercat For Robotic 4

FAQ:

Frequently Asked Questions about Jiayu Mechatronic L11-10630 DC Servo Drive

A: The input voltage of Jiayu Mechatronic L11-10630 DC Servo Drive is 48V DC.
A: The output voltage of Jiayu Mechatronic L11-10630 DC Servo Drive is 48V DC.
A: The power of Jiayu Mechatronic L11-10630 DC Servo Drive is 750W.
A: Yes, Jiayu Mechatronic L11-10630 DC Servo Drive is suitable for most applications.
A: Jiayu Mechatronic L11-10630 DC Servo Drive is made in China.
