Home > products > DC Servo Drive > Compact Dc Motor Drive Powerful Communication Interface Rs485 / Canopen / Ethercat

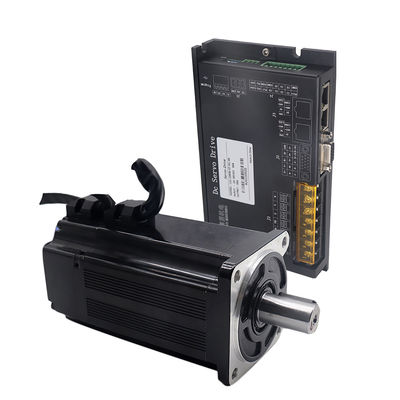

Compact Dc Motor Drive Powerful Communication Interface Rs485 / Canopen / Ethercat

Product Details

Place of Origin: China

Brand Name: Jiayu Mechatronic

Model Number: L11-10630

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiate

Packaging Details: carton

Delivery Time: 7 working days

Payment Terms: L/C, T/T

Supply Ability: 5000pcs/month

Get Best Price
Highlight:

compact dc motor drive

,

ethercat dc motor drive

,

canopen dc servo motor drive

Motor Type:
DC Servo Driver
Communication Interface:
RS485/CANopen/EtherCAT
Weight:
0.5kg
Pulse Input:
5V Differential Input 0 To 500 KHz; 24V Single-ended Input 0 To 200 KHz
Rated Current:
30A
Ambient Temperature:
-20℃-50℃
Encoder Type:
Incremental Encoder
Speed Range:
3000RPM
Motor Type:
DC Servo Driver
Communication Interface:
RS485/CANopen/EtherCAT
Weight:
0.5kg
Pulse Input:
5V Differential Input 0 To 500 KHz; 24V Single-ended Input 0 To 200 KHz
Rated Current:
30A
Ambient Temperature:
-20℃-50℃
Encoder Type:
Incremental Encoder
Speed Range:
3000RPM
Compact Dc Motor Drive Powerful Communication Interface Rs485 / Canopen / Ethercat

Product Description:

DC Servo Drive is a high performance, cost-effective servo drive designed for industrial automation applications. It is suitable for servo motor max 750w and supports position control, speed control, torque control and single-axis control modes. It has an incremental encoder type and a weight of 0.5kg. The drive provides communication interfaces such as RS485/CANopen/EtherCAT, and can operate in the ambient temperature range of -20℃-50℃. The drive is reliable and easy to use, making it a perfect choice for industrial automation applications.



Features:

  • Product Name: DC Servo Drive
  • Communication Interface: RS485/CANopen/EtherCAT
  • Power Supply: DC48V
  • Motor Type: DC Servo Driver
  • Encoder Type: Incremental Encoder
  • Weight: 0.5kg
  • Support incremental and absolutely encoder servo motor
  • Support position control, speed control, torque control and single-axis control modes
  • Suitable for servo motor max 750w


Technical Parameters:

Parameters Values
Drive Type DC Servo Drive
Protection Level IP20
Size 174.5*97.5*28.8mm
Rated Current 30A
Speed Range 3000RPM
Pulse Input 5V Differential Input 0 To 500 KHz; 24V Single-ended Input 0 To 200 KHz
Motor Type DC Servo Driver
Encoder Type Incremental Encoder
Communication Interface RS485/CANopen/EtherCAT
Ambient Temperature -20℃-50℃
Motor Size Suitable for servo motor max 2.5kw
Interface RS485+RS232+CANopen
Encoder Support Support incremental and absolutely encoder servo motor


Applications:

Jiayu Mechatronic's DC Servo Driver, Model Number L11-10630, is a reliable and powerful servo driver that can be used in a wide variety of applications and scenarios. It has a weight of 0.5kg, and an ambient temperature range of -20℃-50℃. It has a protection level of IP20. This DC Servo Driver can support multiple control modes, and features RS485+RS232+CANopen and Modbus serial communication protocols. It can be used to control DC servo motors max 750W, and is compatible with incremental encoders. Additionally, its EtherCAT interface allows users to easily connect and configure the DC Servo Driver. This product also boasts an overload protection for users' safety.

Compact Dc Motor Drive Powerful Communication Interface Rs485 / Canopen / Ethercat 0

Customization:

DC Servo Drive
  • Brand Name: Jiayu Mechatronic
  • Model Number: L11-10630
  • Place of Origin: China
  • Communication Interface: RS485/CANopen/EtherCAT
  • Size: 174.5*97.5*28.8mm
  • Encoder Type: Incremental Encoder
  • Pulse input: 5V Differential Input 0 To 500 KHz; 24V Single-ended Input 0 To 200 KHz
  • Ambient Temperature: -20℃-50℃
  • Suitable for servo motor max 750w
  • Modbus serial communication protocol (RS485)


Support and Services:

DC Servo Drive Technical Support and Service

At Jiayu servo driver, we offer comprehensive technical support and service for DC Servo Drive products. Our team of experienced technicians provides a range of services to keep your motors running optimally and to help minimize downtime. Our services include:

  • Diagnostics and troubleshooting
  • Repair and maintenance
  • Testing and analysis
  • Installation and commissioning
  • Upgrades and retrofits
  • Training and consulting

Our technical support staff are available to answer any questions or to provide assistance with any issues you may be having. We also offer a variety of online resources to help you get the most out of your DC Servo Drive products.



FAQ:

Q&A of Jiayu Mechatronic L11-10630 DC Servo Drive

Q1. What is the application of Jiayu Mechatronic L11-10630 DC Servo Drive?

A1. The Jiayu Mechatronic L11-10630 DC Servo Drive is a high-performance servo drive that can perfectly control the speed and position of various DC motors.

Q2. What are the features of Jiayu Mechatronic L11-10630 DC Servo Drive?

A2. Jiayu Mechatronic L11-10630 DC Servo Drive has excellent features including high speed, high precision, good dynamic response, low noise, low heat, and long life.

Q3. What kind of motors can be used with Jiayu Mechatronic L11-10630 DC Servo Drive?

A3. The Jiayu Mechatronic L11-10630 DC Servo Drive is compatible with permanent magnet low voltage DC servo motors.

Q4. What is the maximum output current of Jiayu Mechatronic L11-10630 DC Servo Drive?

A4. The maximum output current of Jiayu Mechatronic L11-10630 DC Servo Drive is 30A.

Q5. Is Jiayu Mechatronic L11-10630 DC Servo Drive manufactured in China?

A5. Yes, Jiayu Mechatronic L11-10630 DC Servo Drive is manufactured in China, with Place of Origin as China.
