Speed Gate Drive Rated Voltage DC24V HALL Drive Support 6 Pairs Infrared Sensors

Product Description:

Speed Gate Drive Rated Voltage DC24V HALL Drive Support 6 Pairs Infrared Sensors

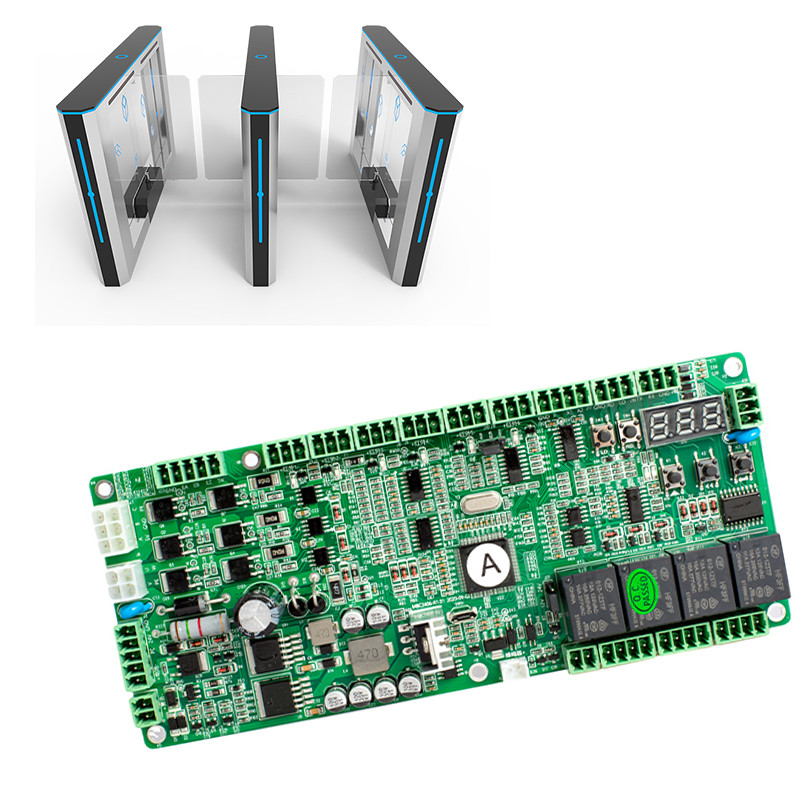

Speed Gate Drive is a motor drive integrated control function that provides an advanced, efficient and reliable solution for motor control applications. It features a Driver Rated Voltage of DC24V, Motor Protection Class of IP54, Power Consumption of 150W, Communication Interface of RS232, and Power Supply current of 6.5A. This system consists of access gate control board, brushless servo motor, servo control technology, real-time detection of motor position, self-learning load curve without external encoder, physical anti-pinch protection and adjustable sensitivity. Support access mode settings such as card swiping, freedom and prohibition at the entrance and exit;It has the logic detection of illegal intrusion, trailing traffic, detention, reverse traffic, infrared anti-pinch, etc., and is suitable for access gate equipment such as speed gate/swing gate, flap gate/sliding gate, etc.

Technical parameter:

• Input power supply: DC24V, dual power connection, 150W/6.5A on one side is recommended; Single power connection, 300W recommended;
• Adaptor motor: DC brushless motor below 60W with 2400-line position feedback;
• Communication mode: RS232 serial communication, supporting Modbus protocol;
• Power-off: DC12V battery, or optional super capacitor module;
• Working environment: -20℃ ~ 55℃, humidity below 90% (no condensation)
• Infrared sensor: 6 independent interfaces, PNP, NPN normally open, open collector type;
• Voice output: external 8W 4Ω speaker.

Technical Parameters:

Applications:

Jiayu Mechatronic's MBC2406 Speed Gate Drive is the perfect choice for a variety of applications where precise control and reliable performance are essential. With its high-speed DC 24V input voltage, the MBC2406 offers outstanding power efficiency and low power consumption of up to 150W. With its RS232 communication interface, the MBC2406 allows for easy integration into existing networks. The MBC2406 also features a motor protection class of IP54 and an impressively compact drive dimension of 190mm*80mm(L*W).

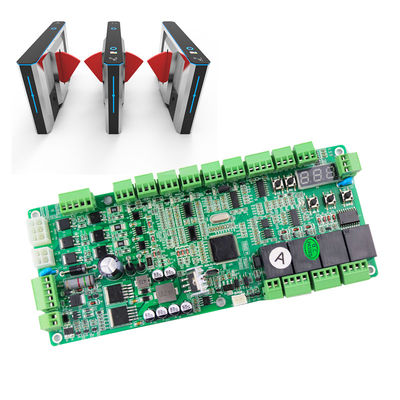

Support 6 pairs infrared sensors input independently, suitable for swing gate, speed gate, tripof turnstile, flap barrier gate or sliding gate, etc.

Customization:

Brand Name: Jiayu Mechatronic
Model Number: MBC2406
Place of Origin: China
Minimum Order Quantity: 2
Delivery Time: within 7 working days
Payment Terms: TT
Supply Ability: 5000PCS/WEEK
Motor Protection Class: IP54
Operating Temperature: -20℃~+55℃
Power Consumption: 150W
Type: DC Servo Driver
Input Voltage: DC 24V
Product Name: Servo Driver
Rated Current: 8A
Peak Current: 24A
Hardware Protection: Low-voltage, Over-voltage, Over-current, Over-heating.

Support and Services:

We provide technical support and services for Speed Gate Drive products. Our team of experienced technicians can assist with installation, upgrades, repairs, and maintenance for your product.

We offer 24/7 telephone support, email support, and on-site service. Our staff is knowledgeable in the latest technologies and can provide quick resolutions to technical issues.

We also provide training for our customers to ensure that they are comfortable with the product and can maximize its potential. We offer both online and in-person courses designed to meet the needs of different users.

For more information or to request service, contact us today. We look forward to helping you get the most out of your Speed Gate Drive product.

FAQ:

Q:What is the brand name of the Speed Gate Drive?

A:The brand name of the Speed Gate Drive is Jiayu Mechatronic.

Q:What is the model number of the Speed Gate Drive?

A:The model number of the Speed Gate Drive is MBC2406.

Q:Where does the Speed Gate Drive come from?

A:The Speed Gate Drive is from China.

Q:What is the minimum order quantity of the Speed Gate Drive?

A:The minimum order quantity of the Speed Gate Drive is 2.

Q:How long is the delivery time for the Speed Gate Drive?

A:The delivery time for the Speed Gate Drive is within 7 working days.

Q:What payment terms are available for the Speed Gate Drive?

A:The payment terms for the Speed Gate Drive is TT.

Q:What is the supply ability of the Speed Gate Drive?

A:The supply ability of the Speed Gate Drive is 5000PCS/WEEK.
