Drip Proof Servo Motor 3000rpm 200W Rated Power 5.2A Logistic Sorting by Incremental Encoder

Product Details

Place of Origin: China

Brand Name: Jiayu Mechatronic

Model Number: EBS60F-200C-30DE5Z-B1CL-ST-00

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiate

Packaging Details: carton

Delivery Time: 7 working days

Payment Terms: L/C, T/T

Supply Ability: 5000pcs/month

Get Best Price
Highlight:

5.2A Logistic Sorting Servo Motor

,

200W Logistic Sorting Servo Motor

,

Incremental Encoder Logistic Sorting Servo Motor

Model:
Servo Motor
Rated Speed:
3000rpm
Protect Feature:
Drip-proof
Usage:
Servo Motor For Logistics Sorting
Power:
200W
Efficiency:
90%
Encoder Type:
Incremental Encoder
Rated Current:
5.2A
Model:
Servo Motor
Rated Speed:
3000rpm
Protect Feature:
Drip-proof
Usage:
Servo Motor For Logistics Sorting
Power:
200W
Efficiency:
90%
Encoder Type:
Incremental Encoder
Rated Current:
5.2A
Drip Proof Servo Motor 3000rpm 200W Rated Power 5.2A Logistic Sorting by Incremental Encoder

Product Description:

One of the key features of the Logistic Motor is its use of an incremental encoder. This type of encoder is capable of detecting changes in position and speed with a high degree of accuracy, making it ideal for use in applications that require precise control and feedback. With an encoder type of incremental encoder, the Logistic Motor is able to deliver the accuracy and reliability that is required for demanding logistics applications.

In addition to its high-precision encoder, the Logistic Motor is also designed with a rated current of 5.2A. This high current rating allows the motor to deliver high levels of torque, even at low speeds. This makes the Logistic Motor an ideal choice for applications that require high levels of torque, such as conveyor systems and material handling equipment.

The Logistic Motor is a servo motor, which means that it is designed to be highly responsive to changes in its environment. This makes it an ideal choice for applications that require precise control and feedback. With a rated speed of 3000rpm, the Logistic Motor is capable of delivering fast and accurate performance, making it an ideal choice for a wide range of logistics applications.

Overall, the Logistic Motor is a high-performance servo motor that is designed to deliver reliable and precise performance in demanding logistics applications. With its high power rating, incremental encoder, and drip-proof protection feature, the Logistic Motor is capable of delivering the accuracy and reliability that is required for even the most challenging logistics applications.



Features:

  • Product Name: Logistic Motor
  • Efficiency: 90%
  • Rated Current: 5.2A
  • Protect Feature: Drip-proof
  • Rated torque: 0.637nm (Rated torque 0.63nm)
  • Usage: Servo Motor For Logistics Sorting
  • Power: 200w
  • Brake: Optional


Technical Parameters:

Rated Voltage: Voltage DC48V
Rated torque: 0.637nm
Protect Feature: Drip-proof
Model: Servo Motor
Efficiency: 90%
Rated Speed: 3000rpm
Power: 200W
Encoder type: Incremental Encoder
Usage: Servo Motor For Logistics Sorting
Rated Current: 5.2A
Peak torque: 1.91nm


Applications:

The logistic motor is designed to operate at a rated voltage of DC48V, which makes it suitable for use in applications where low voltage power supply is available. The motor has 10 poles, which ensures smooth and stable operation, and helps to reduce noise and vibration. With a rated current of 5.2A, this motor is energy-efficient and can help to reduce power consumption.

The logistic motor is designed to be drip-proof, which means it is resistant to water and other liquids. This makes it suitable for use in applications where the motor may come into contact with moisture or other liquids. The motor has an efficiency rating of 90%, which means it is highly efficient and can help to reduce energy consumption and operating costs.

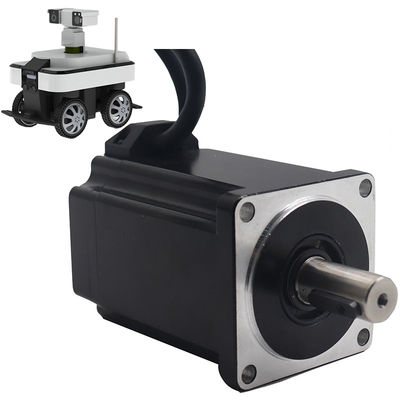

DC servo motor for AGV robot, logistic sorting and automatic device

Drip Proof Servo Motor 3000rpm 200W Rated Power 5.2A Logistic Sorting by Incremental Encoder 0

Support and Services:

Our team of technical experts provides comprehensive support and services for our Logistic Motor product. We offer installation guidance, troubleshooting assistance, and maintenance recommendations to ensure optimal performance and longevity of the product. In addition, we provide regular software updates and upgrades to enhance functionality and address any potential issues. Our support team is available via phone, email, and online chat to quickly and efficiently address any questions or concerns. We are committed to providing exceptional technical support and services to ensure customer satisfaction and optimize product performance.



FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is Jiayu Mechatronic.

Q: What is the model number of this product?

A: The model number of this product is EBS60F-200C-30DE5Z-B1CL-ST-00.

Q: Where is this product manufactured?

A: This product is manufactured in China.

Q: What is the maximum weight this motor can carry?

A: This motor can carry up to 200 kilograms of weight.

Q: What is the warranty period for this product?

A: We cannot provide warranty information as per the requirement, please refer to the warranty policy.
