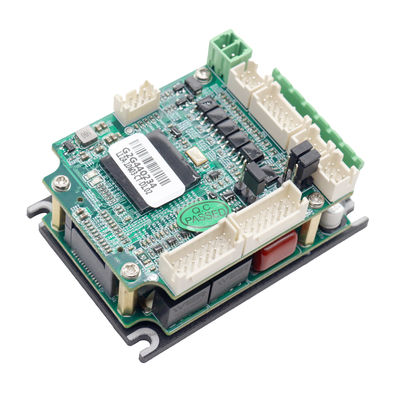

Double Closed Loop Control Mode DC Servo Motor Drive -25°C-55°C Encoder Incremental

Product Details

Place of Origin: China

Brand Name: Jiayu Mechatronic

Certification: ce

Model Number: L12A

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiate

Packaging Details: carton

Delivery Time: 7 working days

Payment Terms: L/C, T/T

Supply Ability: 5000pcs/month

Get Best Price
Highlight:
Operating Temperature:
-25°C-55°C
Control Mode:
Double Closed Loop
Protection:
Over-temperature, Over-current, Over-voltage, Under-voltage
Matching Motor Type:
DC Servo Motor
Dimensions:
70*50*43
Encoder:
Incremental, TAMAGAWA Absolute, BISS-C Input With Broken Wire Detection
Rated Current:
12A
Input Voltage:
DC12V ~ 48V (withstand Voltage 60VDC)
Operating Temperature:
-25°C-55°C
Control Mode:
Double Closed Loop
Protection:
Over-temperature, Over-current, Over-voltage, Under-voltage
Matching Motor Type:
DC Servo Motor
Dimensions:
70*50*43
Encoder:
Incremental, TAMAGAWA Absolute, BISS-C Input With Broken Wire Detection
Rated Current:
12A
Input Voltage:
DC12V ~ 48V (withstand Voltage 60VDC)
Double Closed Loop Control Mode DC Servo Motor Drive -25°C-55°C Encoder Incremental

Product Description:

One of the standout features of this motor drive is its compact size, measuring just 70*50*43 in dimensions. Despite its small size, it is capable of handling overload up to 3 times, making it an incredibly reliable motor drive for heavy-duty tasks.

The DC Servo Motor Drive is designed to work specifically with DC Servo Motors. It supports a power output of 400w and is compatible with motors that operate within the voltage range of 24-60v. The motor drive has a rated current of 10A and a peak current of 30A (33mV/A).

As safety is a top priority, the DC Servo Motor Drive comes equipped with short circuit protection to prevent any damage to the motor drive or connected motor. This feature is especially important in industrial settings where any disruption to the machinery can cause significant downtime and revenue loss.

The DC Servo Motor Drive is capable of operating within a wide temperature range of -25°C to 55°C, making it suitable for use in a variety of environments. Whether it's in a cold storage facility or a hot manufacturing plant, this motor drive can handle the heat.

In summary, the DC Servo Motor Drive is a reliable and efficient motor drive that offers precise control and stability for industrial applications. With its compact size, overload capabilities, short circuit protection, and wide operati

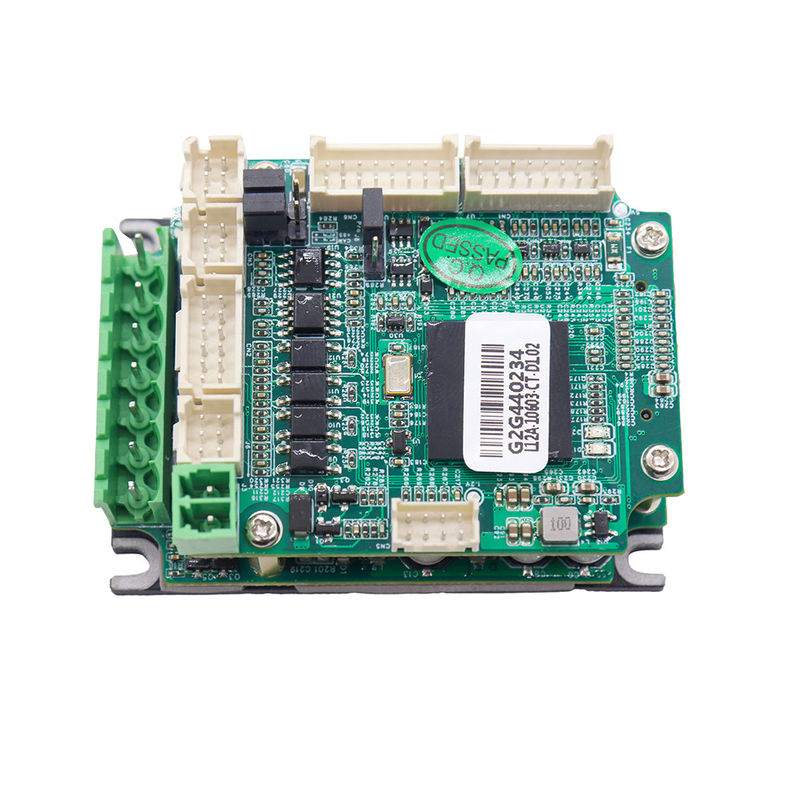

Double Closed Loop Control Mode DC Servo Motor Drive -25°C-55°C Encoder Incremental 0

Features:

  • Product Name: DC Servo Motor Drive
  • Matching Motor Type: DC Servo Motor
  • Control Mode: Double Closed Loop
  • Drive Type: Servo Drive
  • Dimensions: 70*50*43
  • Protection: Over-temperature, Over-current, Over-voltage, Under-voltage
  • Supports Pulse +RS485, CAN/CANopen
  • Provides a more compact structure space
  • High safety performance
  • Capable of supporting 400w with 24-60v input


Technical Parameters:

Operating Temperature -25°C-55°C
Encoder Incremental, TAMAGAWA Absolute, BISS-C Input With Broken Wire Detection
Input Voltage DC12V ~ 48V (withstand Voltage 60VDC)
Protection Over-temperature, Over-current, Over-voltage, Under-voltage
Drive Type Servo Drive
Rated Current 12A
Control Mode Double Closed Loop
Matching Motor Type DC Servo Motor
Overload 3 Times
Dimensions 70*50*43

Product features: Over-current protection, over/under voltage protection, overload protection, High overload capacity, Incremental encoder.



Applications:

The L12A drive's high safety performance is due to its built-in protection features, which include over-temperature, over-current, over-voltage, and under-voltage protection. These safety measures help to prevent damage to the motor and drive, as well as ensure the safety of the operator and surrounding personnel. The compact dimensions of the L12A (70*50*43) make it easy to integrate into a variety of systems, even in tight spaces.

The L12A DC servo motor drive is perfect for a range of applications, including robotics, CNC machines, packaging equipment, and many others. Its high overload capacity and protection features make it suitable for use in demanding environments, where reliability and safety are paramount. The incremental encoder ensures accurate position control, while the TAMAGAWA Absolute and BISS-C Input with Broken Wire Detection options provide even greater precision. Overall, the L12A is a versatile and reliable motor control solution that is sure to meet the needs of many different industries and applications.

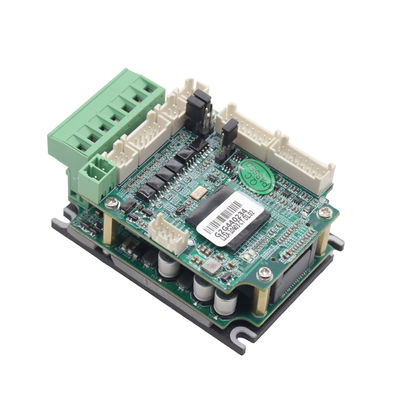

Double Closed Loop Control Mode DC Servo Motor Drive -25°C-55°C Encoder Incremental 1

Support and Services:

Our product technical support and services for the DC Servo Motor Drive include:

  • Expert technical support to help you get the most out of your motor controller
  • Comprehensive documentation and user manuals to guide you through setup and operation
  • Customization services to tailor the motor controller to your specific application requirements
  • Repair and maintenance services to keep your motor controller running smoothly and reliably

Whether you need help with installation and setup, troubleshooting, or ongoing maintenance and support, our team of experts is here to help you every step of the way.



FAQ:

  1. What is the brand name of this DC Servo Motor Drive?

    A: The brand name of this DC Servo Motor Drive is Jiayu Mechatronic.

  2. What is the model number of this DC Servo Motor Drive?

    A: The model number of this DC Servo Motor Drive is L12A.

  3. Where is this DC Servo Motor Drive manufactured?

    A: This DC Servo Motor Drive is manufactured in China.

  4. What is the input voltage range for this DC Servo Motor Drive?

    A: The input voltage range for this DC Servo Motor Drive is 18-80VDC.

  5. What is the maximum output current for this DC Servo Motor Drive?

    A: The maximum output current for this DC Servo Motor Drive is 12A.
