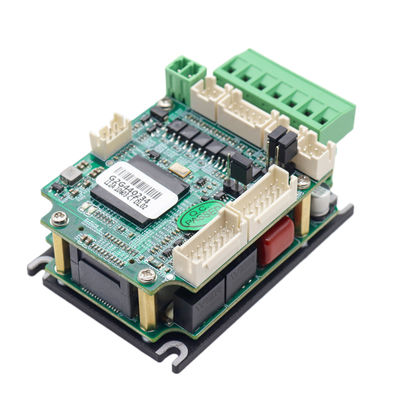

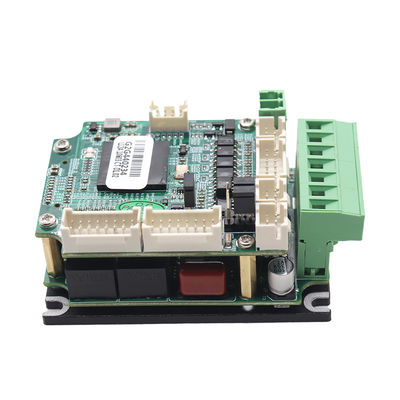

12A Rated Current Servo Drive Incremental Encoder for Industrial Applications

Product Details

Place of Origin: China

Brand Name: Jiayu Mechatronic

Certification: ce

Model Number: L12A

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiate

Packaging Details: carton

Delivery Time: 7 working days

Payment Terms: L/C, T/T

Supply Ability: 5000pcs/month

Get Best Price
Highlight:
Protection:
Over-temperature, Over-current, Over-voltage, Under-voltage
Matching Motor Type:
DC Servo Motor
Rated Current:
12A
Dimensions:
70*50*43mm
Control Mode:
Double Closed Loop
Drive Type:
Servo Drive
Encoder:
Incremental, TAMAGAWA Absolute, BISS-C Input With Broken Wire Detection
Input Voltage:
DC12V ~ 48V (withstand Voltage 60VDC)
Protection:
Over-temperature, Over-current, Over-voltage, Under-voltage
Matching Motor Type:
DC Servo Motor
Rated Current:
12A
Dimensions:
70*50*43mm
Control Mode:
Double Closed Loop
Drive Type:
Servo Drive
Encoder:
Incremental, TAMAGAWA Absolute, BISS-C Input With Broken Wire Detection
Input Voltage:
DC12V ~ 48V (withstand Voltage 60VDC)
12A Rated Current Servo Drive Incremental Encoder for Industrial Applications

Product Description:

The DC Servo Motor Drive is equipped with a number of protection features to ensure that it operates safely and reliably. It has over-temperature protection, over-current protection, over-voltage protection, and under-voltage protection. These protection features help to prevent damage to the motor and the drive, and ensure that the system operates smoothly.

In addition to its high overload capacity and protection features, the DC Servo Motor Drive is also highly versatile. It can be used with a range of different motor types, but is specifically designed for use with DC servo motors. The drive is compatible with a range of different communication protocols, including Pulse +RS485 and CAN/CANopen.

The DC Servo Motor Drive has a more compact structure space and is easy to install. Its dimensions are 70*50*43, making it easy to integrate into a wide range of different applications. The drive has a rated current of 10A and a peak current of 30A , which means that it can provide a lot of power when it is needed.

In summary, the DC Servo Motor Drive is a high-quality motor drive that offers a range of different features and benefits. It has a high overload capacity, protection features, compatibility with different motor types and communication protocols, and a compact structure space. With a rated current of 12A, it is suitable for a wide range of different applications, and its easy installation and compact dimensions make it a versatile and convenient choice for many different projects.

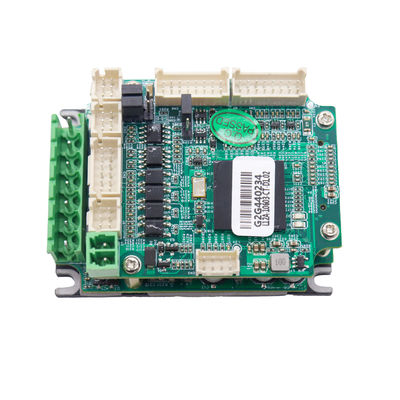

12A Rated Current Servo Drive Incremental Encoder for Industrial Applications 0

Features:

  • Product Name: DC Servo Motor Drive
  • Input Voltage: DC12V ~ 48V (withstand Voltage 60VDC)
  • Dimensions: 70*50*43
  • Protection: Over-temperature, Over-current, Over-voltage, Under-voltage
  • Overload: 3 Times
  • Matching Motor Type: DC Servo Motor
  • Short circuit protection
  • High overload capacity: with 3 times overload capacity
  • Pulse +RS485, CAN/CANopen
  • More compact structure space


Technical Parameters:

Technical Parameters Value
Control Mode Double Closed Loop
Encoder Incremental, TAMAGAWA Absolute, BISS-C Input With Broken Wire Detection
Rated current 12A
Protection Over-temperature, Over-current, Over-voltage, Under-voltage
Operating Temperature -25°C-55°C
Input Voltage DC12V ~ 48V (withstand Voltage 60VDC)
Matching Motor Type DC Servo Motor
Overload 3 Times
Drive Type Servo Drive
Dimensions 70*50*43

This DC Servo Motor Drive product also features Over-current protection, over/under voltage protection, overload protection, Short circuit protection, Rated current 10A, peak current 30A (33mV/A).

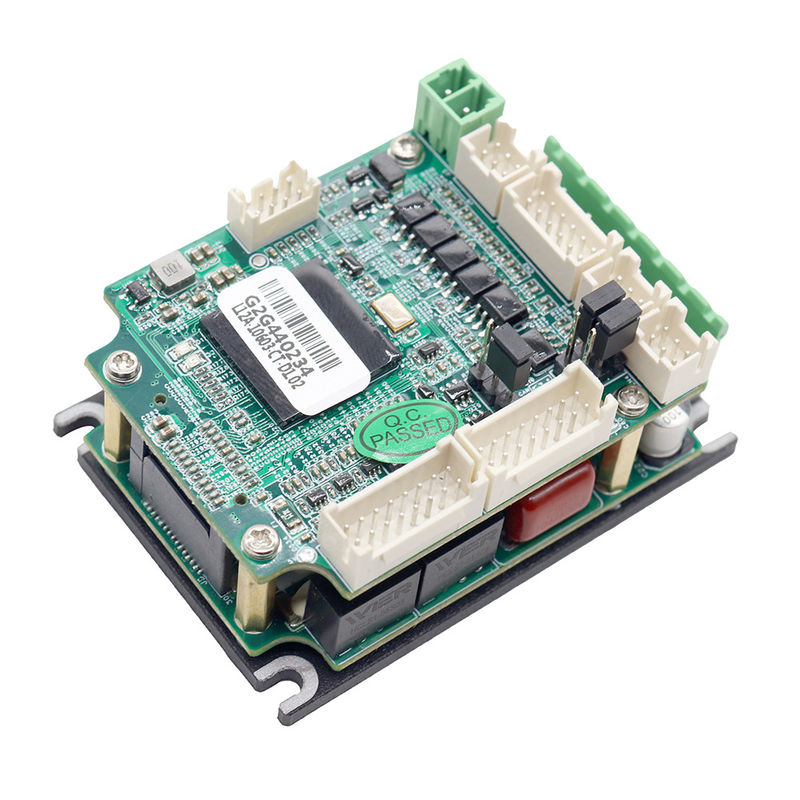

12A Rated Current Servo Drive Incremental Encoder for Industrial Applications 1

Applications:

One of the key benefits of the L12A servo motor drive is that it integrates the driver and the servo motor into a single unit, which simplifies installation and reduces the overall footprint of the system. This makes it ideal for use in space-constrained environments or applications where multiple servo drives are required.

The L12A servo motor drive also features short circuit protection, which helps to prevent damage to the system in the event of a fault. This, combined with its over-temperature, over-current, over-voltage, and under-voltage protection, ensures that the system is highly reliable and can operate safely in a range of scenarios.

With an overload capacity of up to 3 times the rated current, the L12A servo motor drive is capable of handling high loads with ease. The double closed-loop control mode also ensures that the system can maintain high levels of precision and accuracy, even in challenging operating conditions.

Overall, the Jiayu Mechatronic L12A DC Servo Motor Drive is an advanced and reliable solution that is suitable for a wide range of applications. Whether you need to control the movement of a robotic arm, a CNC machine, or any other type of industrial equipment, the L12A servo motor drive can provide the performance, reliability, and precision you need.



Customization:

The L12A also comes equipped with a range of safety features, including over-current protection, over/under voltage protection, and overload protection. With a high overload capacity of 3 times, it is designed to withstand heavy loads and ensure reliable performance even in challenging conditions.

Whether you need a servo drive that can handle demanding applications, or simply want to ensure the highest levels of safety and performance for your motor, the L12A from Jiayu Mechatronic is the ideal choice. Contact us today to learn more about our customization services and find out how we can help you get the most from your motor!



Support and Services:

  • Expert assistance with product installation and configuration
  • Troubleshooting and diagnosis of any issues with the product
  • Repair and maintenance services to keep your product running smoothly
  • Upgrades and enhancements to improve product performance

Our goal is to ensure that our customers are satisfied with their purchase and that their DC Servo Motor Drive operates at peak performance. Please don't hesitate to contact us for any assistance or support.



FAQ:

Here are some frequently asked questions about the Jiayu Mechatronic L12A DC Servo Motor Drive:

Q: What is the maximum output current of the L12A DC Servo Motor Drive?

A: The L12A DC Servo Motor Drive has a maximum output current of 12A.

Q: What is the input voltage range for the L12A DC Servo Motor Drive?

A: The input voltage range for the L12A DC Servo Motor Drive is 20-50VDC.

Q: What is the maximum operating temperature for the L12A DC Servo Motor Drive?

A: The maximum operating temperature for the L12A DC Servo Motor Drive is 85°C.

Q: What is the warranty period for the L12A DC Servo Motor Drive?

A: Please refer to the warranty information provided with your purchase for details on the warranty period.

Q: Where is the Jiayu Mechatronic L12A DC Servo Motor Drive manufactured?

A: The Jiayu Mechatronic L12A DC Servo Motor Drive is manufactured in China.
