Product Description:

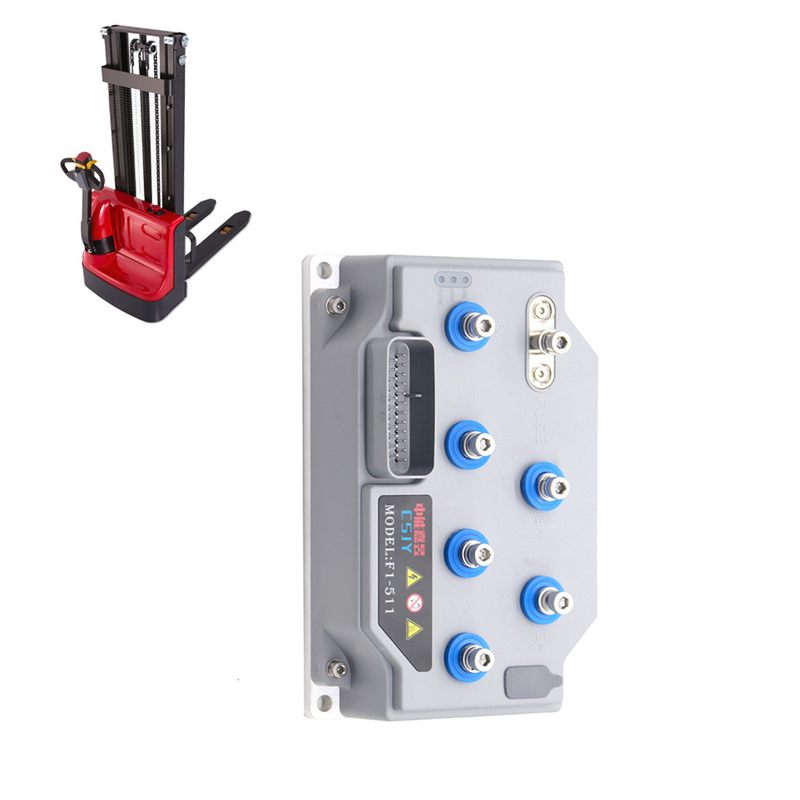

F1 series low voltage controller is a low voltage DC drive controller that can control walking and pump at the same time, integrating first-class PID algorithm and hardware design. The miniaturization of the drive control is realized, the power density is improved, the installation space is saved, the cost advantage is obvious, and it is suitable for the single drive electric traction forklift application.

Features:

Rated voltage range:24V~48VDC                     Starting voltage:≥15V

PWM frequency:10KHZ                                     Insulation strength:500VAC

Insulation strength:500VAC                               Protection class:IP65

Maximum Input Current:Asynchronous max. 280A, pump max. 350A

Control method:Closed Loop Vector Control / VF Control

echnical Parameters:

Note: This product supports Modbus serial communication protocol (RS485) and can use MagicServo for parameter modification and monitoring and debugging. The power supply range is from 24V to 60V.

Applications:

The DC Servo Drive has a communication interface of CANopen, which allows for easy integration with other devices. It also features Modbus serial communication protocol (RS485), which provides reliable and efficient data transfer. The drive is designed to support incremental encoders, making it suitable for applications requiring precise control.

The DC Servo Drive is designed to operate with 48V DC servo motors from 1.5KW to 2.5KW. It has a voltage range of 24~60V, making it suitable for a variety of power supply systems. The drive has a protection level of IP65, making it suitable for use in harsh environments. It can operate in temperatures ranging from -30℃ to 50℃ and has a weight of 1.5kg.electric forklift drive motor

The DC Servo Drive is suitable for a range of applications and scenarios. It can be used in automation systems, robotics, packaging machines, textile machines, and more. Its communication interface and support for incremental encoders make it suitable for precise control applications. Its protection level and wide temperature range make it suitable for use in harsh environments.

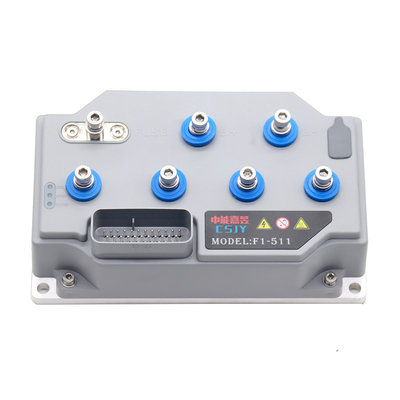

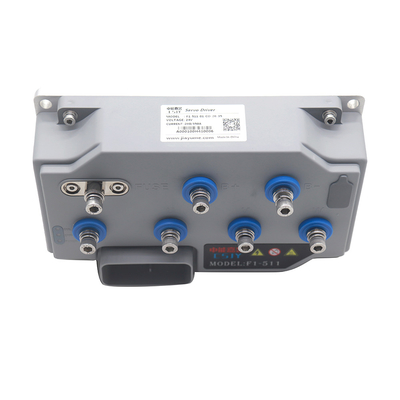

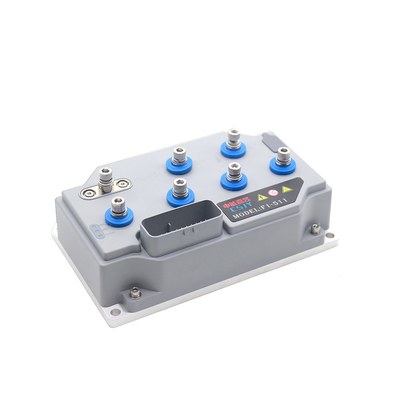

In summary, Jiayu Mechatronic's DC Servo Drive, model number F1-511, is a high-performance drive suitable for a variety of applications. Its communication interface, support for incremental encoders, and protection level make it a reliable choice for precise control applications. Its adaptability to 48V DC servo motors from 1.5KW to 2.5KW and wide temperature range make it suitable for use in a variety of scenarios.

Support and Services:

The DC Servo Drive is a high-performance motion control product designed for precise and accurate control of DC motors. Our technical support team is available to assist with any questions or issues you may encounter while using the product. Our services include:

• Installation support
• Product troubleshooting
• Customization and integration services
• Product repair and maintenance
• Firmware updates and upgrades
• Training and education resources

Our goal is to ensure that you have a positive experience using our DC Servo Drive product and that it meets your specific needs and requirements. Please do not hesitate to contact us for assistance.
