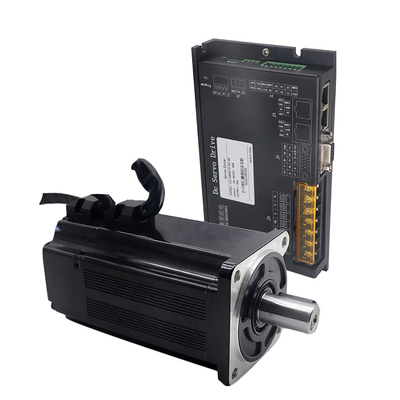

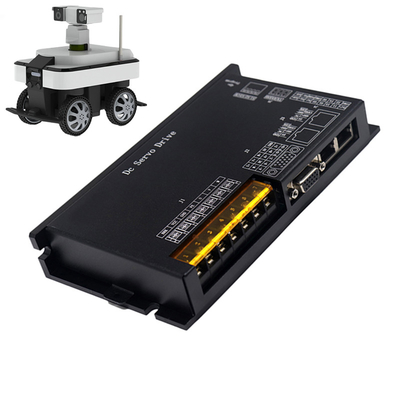

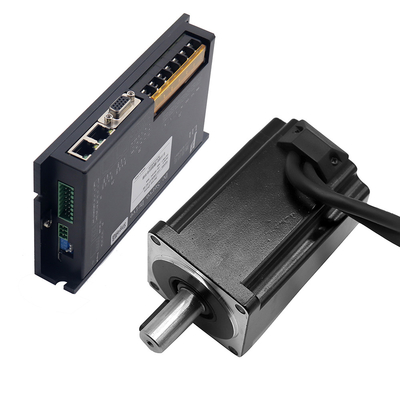

L11 Series Low-voltage Servo Drive Rated Current 30A for 750W 1000W Servo Motor

Brand Name:	CSJY
Model Number:	L11-10630
MOQ:	1pcs
Price:	Negotiate
Packaging Details:	cartons
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Power Input:

DC24 ~ 80V

Overloaded:

Load = 100-300%

Communication:

RS232, RS485, CAN Interface; Supports Both Modbus And CANopen Protocols

Rated Output Current:

Defend:

Reverse Power Input, Phase To Phase Short Circuit, 5V Short Circuit Busbar Over-voltage Protection, Over-current Protection, Encoder Disconnection Protection

Ambient Temperature:

-20 To 55°C (non-freezing)

Ambient Humidity:

90% RH Or Less (no Condensation)

Digital Inputs And Outputs:

2-way PNP/NPN Type Signal Output, Support Parameter Selection Universal Output Function

Pulse Input:

5V Differential Input 0~500kHz; 24V Single-ended Input 0~200kHz

Supply Ability:

5000pcs/month

Product Description

L11 Series Low-voltage Servo Drive Rated Current 30A for 750W 1000W Servo Motor

Applicable Industries
• Logistics robots: Automatic navigation freight robot, multi-shuttle robot, automatic parking robot, etc.

• Logistics device: Sorting machine, tridmensional warehouse device, etc.

• Medical device: small size system.

• Other occasions: High response speed and high positioning precision.

Specification

Power Input	DC24 ~ 80V
overloaded	Load = 100-300%.
Encoder Feedback	Incremental encoders or Absolute encoder
Pulse input	5V differential input 0~500kHz; 24V single-ended input 0~200kHz;
Communication	RS232, RS485, CAN interface; supports both Modbus and CANopen protocols (-CO version)
Defend	Reverse power input, phase to phase short circuit, 5V short circuit Busbar over-voltage protection, over-current protection, encoder disconnection protection
Ambient temperature	-20 to 55°C (non-freezing)
Rated output current	05:5A; 06:6A; 12:12A; 30:30A;
Matching servo motor	750w or 1000w

Main Features

• New high-computing power platform

The main frequency has been increased by 3 times, with a position loop of 8K and a speed loop of 16K. The response speed and accuracy have been greatly improved, meeting the needs of high dynamic scenarios such as robots and logistics equipment.

• Performance upgrade

The driver supports stable operation at -20° C low temperature, and the motor can choose IP67 high protection level, which is not afraid of severe cold, humidity, and dust environment, covering multiple fields such as logistics, medical, outdoor equipment, etc.

The power supply voltage level is 24~80V, with a continuous output current increase of 30%. It has strong overload capacity and is suitable for high-intensity operations such as heavy-duty mobile robots (AGV/AMR).

• Convenient debugging, diverse communications

Network interface directly connected to computer for debugging, combined with MagicServo software to achieve "plug and play", saving more than 60% of debugging time.

Support RS485, CANopen, EtherCAT multi protocol level communication, easily achieve multi axis collaborative control, and meet the intelligent requirements of complex production lines.

• Safety protection, stable operation

Multiple safety mechanisms such as overspeed protection, over temperature protection, and short circuit protection have been certified by Rohs, CE, etc. to ensure the safety of human-machine cooperation and long-term stable operation of equipment.

Applications

L11 Series Low-voltage Servo Drive Rated Current 30A for 750W 1000W Servo Motor 0
