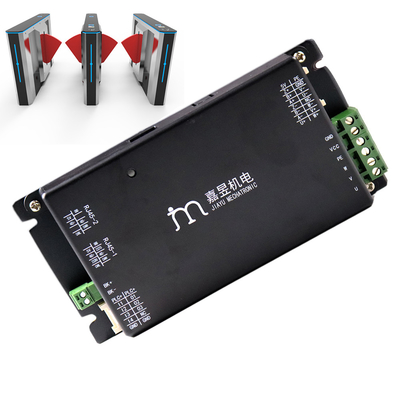

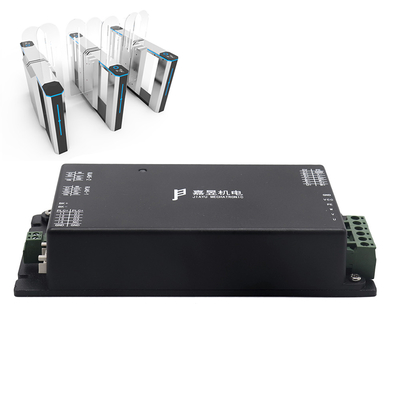

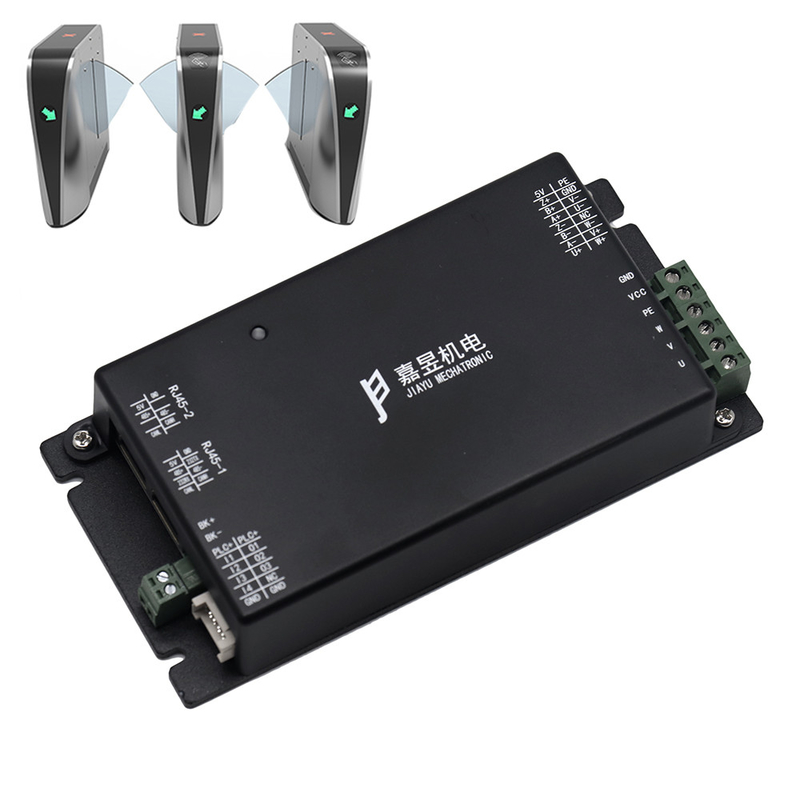

Compact Design Incremental Encoder DC Servo Driver Specially Designed for Turnstile Gates

Brand Name:	CSJY
Model Number:	EPS2408-AD
MOQ:	1
Price:	according to quantities
Packaging Details:	carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Input Voltage:

24 VDC / 48VDC

Rated/Peak Current:

8 / 24 Arms

Feedback:

HALLU、HALLV、HALLW、EA、EB、EZ Incremental Encoder, +5V Power Supply Support Differential Input; Support 1000, 2400, 2500 Resolution Position Feedback

Communication:

RJ45, Including RS232, RS485, CAN

Hardware Protection:

Power-input Reverse Connection, Phase Short Circuit, 5V Short Circuit, Brake Output Short Circuit Protection Low-voltage, Over-voltage, Over-current, Overheating

Usage Temperature:

-20～55℃, Not Frozen, The Average Load Should Not Exceed 80% Of The Rated Load;

Usage Humidity:

Below 90% RH, No Condensation

Application:

Swing Gate, Speed Gate, Sliding Gate Or Flap Gate

Supply Ability:

5000+pcs/month

Product Description

Compact Design Incremental Encoder DC Servo Driver Specially Designed for Turnstile Gates

Application Features:

① Integration of industry-leading channel movement control logic algorithm；

② The Open speed is fast up to 0.3 seconds；

③ Forced Prevented is responsive,locked in small angle；

④ Built-in special circuit module for breaking violence.

⑤ Sensorless switch designed, homing automatically when power-on. Door closing position can be set precisely.

Compact Design Incremental Encoder DC Servo Driver Specially Designed for Turnstile Gates 0

Compact Design Incremental Encoder DC Servo Driver Specially Designed for Turnstile Gates 1

Support Functions:

① Support RS232, RS485 and CAN, provide Modbus communication protocol；

② PC Monitor software with oscilloscope.

③ Firmware Download tools via Serial port;

④ Hand-held LED / LCD Tool box;

Specification:

Input Voltage	24 VDC / 48VDC
Rated/Peak Current	8 / 24 Arms
Overload	Load=200%(16Arms),overload time Maximum 10S
Brake Unit	Built-in brake resistance, rated 12W
Feedback	HALLU,HALLV,HALLW,EA,EB,EZ incremental encoder, +5V power supply Support differential input; Support 1000, 2400, 2500 resolution position feedback;
Brake Control	1 input NPN type brake control output, maximum 1.5A, 24VDC PWM output when 48VDC input
Hardware Protection	Power-input reverse connection, phase short circuit, 5V short circuit, brake output short circuit protection Low-voltage, Over-voltage, Over-current, Overheating
Level of Protection	IP20
