MBC2406 Turnstile Gate Control Board for Flap Gates

Brand Name:	CSJY
Model Number:	MBC2406
MOQ:	2
Price:	Negotiate
Packaging Details:	cartons
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Input Power Supply:

DC24V, Dual Power Connection, 150W/6.5A On One Side Is Recommended; Single Power Connection, 300W Recommended

Adaptor Motor:

DC Brushless Motor Below 60W With 2400-line Position Feedback

Communication Mode:

RS232 Serial Communication, Supporting Modbus Protocol

Power-off:

DC12V Battery, Or Optional Super Capacitor Module

Infrared Sensor:

6 Independent Interfaces, PNP, NPN Normally Open, Open Collector Type

Voice Output:

External 8W 4Ω Speaker

Anti-pinch Protection:

Current+position Double Detection, Adjustable Sensitivity

Control Effect:

The Open Speed Is Fast, And It Is Stable And Does Not Shake

Working Environment:

-20℃ ~ 55℃

Application:

Swing Gate, Speed Gate, Tripod Turnstile, Sliding Gate

Supply Ability:

5000pcs/month

Product Description

MBC2406 Turnstile Gate Control Board for Flap Gates

Product description

This system consists of access gate control board, brushless servo motor, servo control technology, real-time

detection of motor position, self-learning load curve without external encoder, physical anti-pinch protection and

adjustable sensitivity. Support access mode settings such as card swiping, freedom and prohibition at the entrance and exit;It has the logic detection of illegal intrusion, trailing traffic, detention, reverse traffic, infrared anti-pinch, etc., and is suitable for access gate equipment such as speed gate/swing gate, flap gate/sliding gate, etc.

Technical parameter

Input power supply	DC24V, dual power connection, 150W/6.5A on one side is recommended; Single power connection, 300W recommended;
Adaptor motor	DC brushless motor below 60W with 2400-line position feedback
Communication mode	RS232 serial communication, supporting Modbus protocol
Power-off	DC12V battery, or optional super capacitor module
Infrared sensor	6 independent interfaces, PNP, NPN normally open, open collector type
Voice output	external 8W 4Ω speaker
Working environment	-20℃ ~ 55℃, humidity below 90% (no condensation)

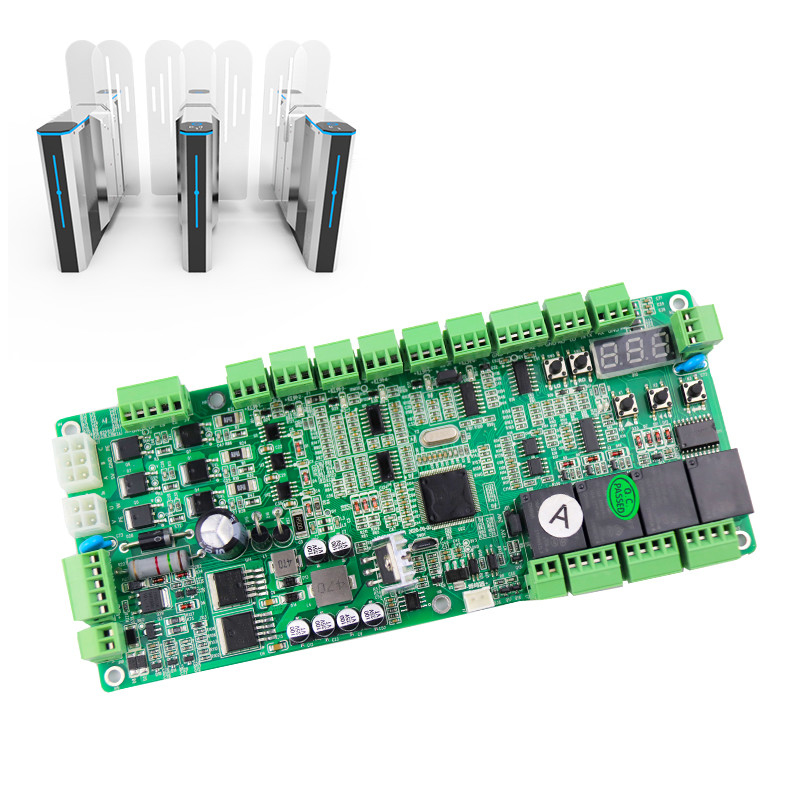

MBC2406 Turnstile Gate Control Board for Flap Gates 0

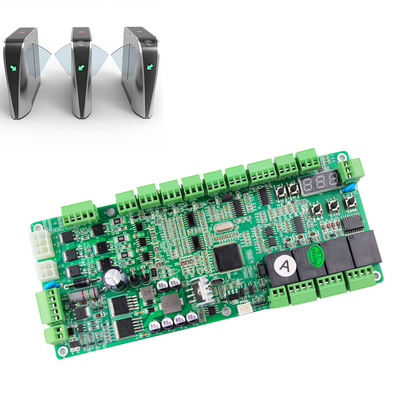

MBC2406 Turnstile Gate Control Board for Flap Gates 1

Application

This control board suitable for swing gate, speed gate, sliding gate, tripod turnstile, etc

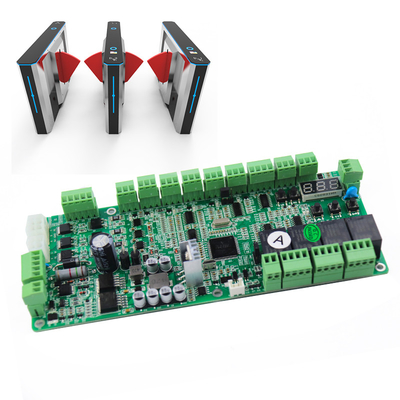

MBC2406 Turnstile Gate Control Board for Flap Gates 2

MBC2406 Turnstile Gate Control Board for Flap Gates 3

RFQ

1: Are you trading company or manufacturer ?

We are a professional barrier gate manufacturer, our experience more than 10 years.

2. Do you provide OEM service?

Yes, we can offer OEM services as follows: 1) We can print your logo on barrier gate. 2) We can customize barrier arm size to your needs.

3. Lead time for standard item?

1-50 sets: 3-5 working days; 50-100 sets: 6-10 working days; 100-500sets: 11-20 working days. For custom-made logo, 3-10 working days longer.

4. Do you provide quality guarantee/warranty and after sale service?

We have a one-year standard warranty, excellent after-sales service.

5. Do you provide samples ?

No,we don't provide free samples. The MOQ of our products is 1pc.

6. How about the payment method?

T/T or Alibaba.

7. What kind of technical support you would provide?

We have professional R&D and technical team,you have any technical problem of product.

8. How to ship?

By air or by sea, quantity over 10 sets better to choose by sea to reduce cost.
