High Security Turnstile Gate Infrared Sensor Support Onboard 12 Pairs Sensors Input Independently

Brand Name:	CSJY
Model Number:	JMC1810
MOQ:	2
Price:	Negotiate
Packaging Details:	cartons
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Input Voltage:

DC 24 ~ 30V

Rated/peak Current:

Single-sided 3A (depending On The Light Load Decision)

Adapted Motor:

Low-voltage Servo Motors

Encoder Feedback:

Incremental (pulse Type)

Communication Interface:

RS232 / RS485 / CAN

Hardware Protection:

 Over-current Protection Short-circuit Protection Reverse Connection Protection

Light Output:

Welcome Light, Pass Light, RGB Tricolor Light, Status Light

Sound Output:

Speaker (8W 4Ω), Buzzer (12V 100mA)

Infrared Input:

PNP|NPN NO|NC 12V|24V 12 Independent IR Interfaces On Board External IR Expansion Board Available

Input And Output Signals:

2 Door Openers + 3 Expansion Inputs/outputs

Hardware Protection:

Protection Under-voltage, Over-current, Input Reversal

Multi-function Keys:

Opening Doors, Setting Zero, Restoring Defaults, Etc.

Operating Temperature:

-20°C ~ 55°C

Supply Ability:

5000pcs/month

Product Description

High Security Turnstile Gate Infrared Sensor Support Onboard 12 Pairs Sensors Input Independently

Product description

 It’s adapted to EPS2408, APS8010, MSD100 and other gates special servo drives to provide

complete access logic control of the gates;

 Features a modular input design that can be expanded to up to 36 pairs of independent access

to infrared sensors;

 Real-time detection of channel status and passage behavior, which can achieve high security

level of anti-tailgating control;

 Built-in pass mode, standard design 8+4 group infrared layout, can meet different use

scenarios;

 Not only comes with its own voice, but also supports self-burning voice content and custom

voice announcements, which can be characterized to meet the needs of different application scenarios;

 Supports RS232, RS485, IO and other control methods, and provides Modbus communication

protocol, which can be docked to access control, upper computer, blue tooth, optional Ethernet, etc.

Technical parameter

Input Voltage	DC 24 ~ 30V
Reference Current	Single-sided 3A (depending on the light load decision)
Infrared sensor input	PNP\|NPN NO\|NC 12V\|24V 12 independent IR interfaces on board External IR expansion board available
Communication Interface	RS232/RS485/CAN
Sound and light control	Welcome light, pass light, RGB tricolor light, status light Speaker (8W 4Ω), Buzzer (12V 100mA)
Hardware Protection	Under-voltage, over-current, input reversal
Passage detection	Tailgating Breaking the gate Retrograde Detention
Firefighting interface	On-board NPN input

Application

This control board suitable for swing gate, speed gate, sliding gate hign-end turnstile gate's application.

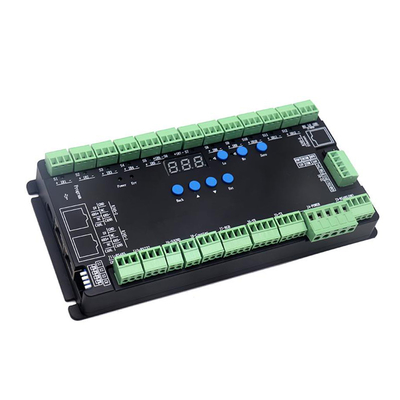

High Security Turnstile Gate Infrared Sensor Support Onboard 12 Pairs Sensors Input Independently 0

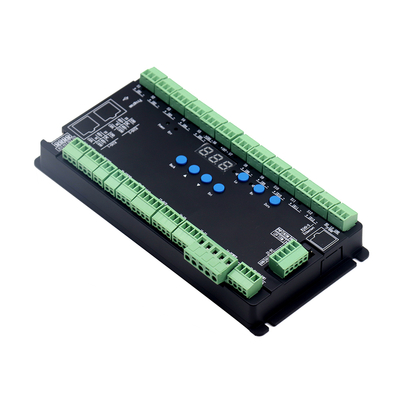

High Security Turnstile Gate Infrared Sensor Support Onboard 12 Pairs Sensors Input Independently 1

RFQ

1. How about your company's actual strength?
We have more than 100 employees, a R&D group with 50 people,1 office and 1 factories. Factories and office buildings are larger than 1500 square meters.

2. How about the payment method?

Standard products: 30% deposit, 70% balance payment before shipment.

3. How long is your warranty period?

One-year guarantee & Life-time technology support.

4. How do you do after-sale service?
We provide life-time technology support online, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

5. How long is your warranty period?
One-year guarantee & Life-time technology support
