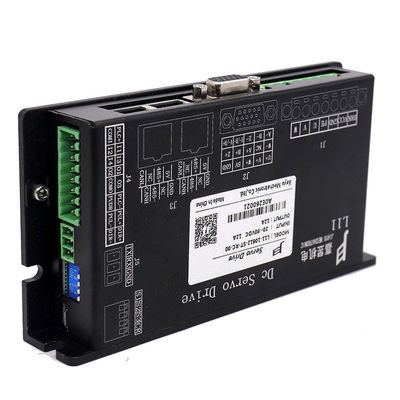

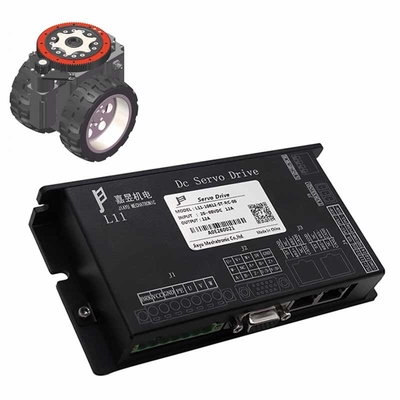

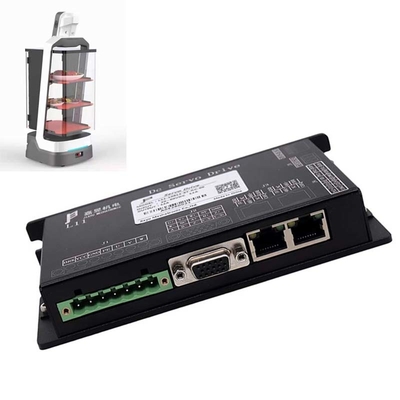

DC48V 200W 12A DC Servo Drive with Robust and Reliable Performance for AGV Robots

Brand Name:	Jiayu
Model Number:	L11-10612
MOQ:	2
Price:	Negotiation
Packaging Details:	carton
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, Rohs

Document:

Rated Current:

Power:

Communication Protocol:

CANopen Modbus/RS485

Encoder:

Incremental Or Absolute Encoder

Supply Voltage:

20v-80v

Overloaded:

Load = 100-300%.

Ambient Temperature:

-20 To 55°C (non-freezing)

Ambient Humidity:

90% RH Or Less (no Condensation)

Application:

AGV Robot

Rated Voltage:

Dc48v

Supply Ability:

5000/year

Highlight:

200W DC Servo Drive

DC48V Servo Driver

12A DC Motor Drive

Product Description

DC48V Servo Driver 200W for Automatic Products Support Incremental or Absolute Encoder

Product Description

The DC48V 200W Servo Driver is a high-performance, highly flexible control core designed for industrial automation products. Its most prominent feature is the seamless support for both incremental and absolute encoders, providing machine builders with unparalleled system design freedom. Whether for cost-effective standard applications or high-end equipment requiring immediate operation upon power-up and high-precision positioning, this driver can be easily configured to meet the demand. It ensures precise control of speed, torque, and position, making it an ideal solution for enhancing the performance and reliability of equipment in packaging, assembly, material handling, and robotics.

Specifications

Rated current	12A
Communication Protocol	CANopen Modbus/RS485
Encoder	Incremental or absolute encoder
Hardware protection	Reverse power input, phase to phase short circuit, 5V short circuit Busbar over-voltage protection, over-current protection, encoder disconnection protection
Supply Voltage	20v-80v
Digital Inputs and Outputs	4-way PNP/NPN type signal input, support parameter selection universal input function
Digital Inputs and Outputs	2-way PNP/NPN type signal output, support parameter selection universal output function
Pulse input	5V differential input 0~500kHz; 24V single-ended input 0~200kHz;
Matching servo motor	up to 400w

Key Advantages

Maximum Flexibility: Compatibility with both incremental and absolute encoders allows you to select the most suitable motor based on your application's specific cost, performance, and startup time requirements, simplifying selection and inventory management.
Enhanced Machine Efficiency: When paired with an absolute encoder, the system eliminates the need for a homing sequence after power-up, allowing production to start immediately, significantly reducing machine preparation time and boosting overall productivity.
Cost-Effective Solution: Offers the convenience of choosing an economical incremental encoder solution for cost-sensitive applications while retaining the ability to upgrade to an absolute encoder system in the future, protecting your investment.
Robust and Reliable: The 48V DC power supply is safe and stable, and the 200W power output is robust, ensuring stable operation in complex industrial environments and reducing downtime.
Simplified Integration & Maintenance: A unified driver platform makes integration, commissioning, and maintenance across different machine models more straightforward and consistent, reducing training and support costs.

Applicable Scenarios

Automated Robots: Ideal for automatic navigation freight robots, multi-vehicle shuttle systems, and automatic parking equipment.
Logistics Equipment: Suitable for sorting machines and stereoscopic warehouse systems.
Medical Systems: Fits small medical devices and systems.
High-Precision Applications: Perfect for applications requiring fast response and high positioning accuracy.

Recommended Braking Resistor Sizing

Motor power	Braking resistor resistance value 【Ω】	Braking resistor power 【W】	Braking resistor withstanding voltage 【VDC】 (min.)
200~400W	10	100	500
750W	5	100	500
1.2~1.5KW	3.5	200	500
2.5~3KW	0.8	700	500

Frequently Asked Questions

Q1: Where is your factory located?

A: Our factory is located in Baoan Shenzhen

Q2: How to choose the suitable stepper motor?

A: There are several important points: size and length of the stepper motor, holding torque, step angle, voltage, current etc. After confirming some of these parameters, we can help you choose the suitable stepper motor. Alternatively, you can send us the model you are using and we can help you find the suitable stepper motor.

Q3: How do you ship the goods?

A: By sea and by air, also accept customer appointed shipping methods.

Q4: How can we know the product quality?

A: We suggest you order a sample. Also, you can send us email for detailed photos for checking if you cannot get enough information in the product page.

Q5: Can we be agent or distributor?

A: Yes, welcome and we will support you.

Q6: Can you do OEM or ODM service?

A: Yes, we have R&D department and accept OEM and ODM service.
