DC Servo Motor

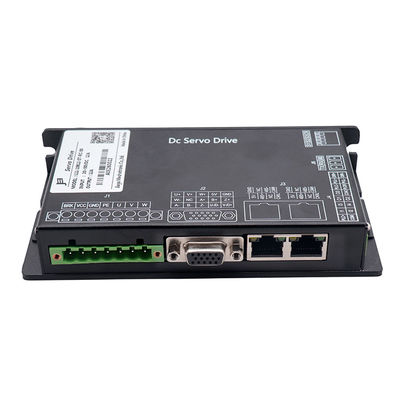

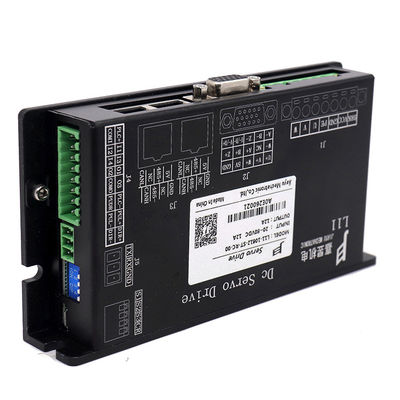

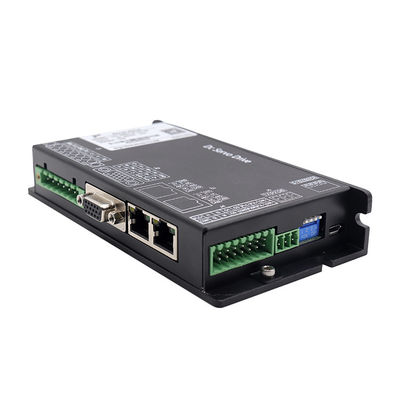

Low-voltage 200W 12A Servo Driver for Incremental Encoder DC Servo Motor with RS232 RS485 CAN Interface

All Category

Turnstile Gate Controller

Ms. Chilli

Chillijy@jiayume.com

15218146199

15218146199

Contact Now

Low-voltage 200W 12A Servo Driver for Incremental Encoder DC Servo Motor with RS232 RS485 CAN Interface

Brand Name:	CSJY
Model Number:	GL11-10612-ST-RC-00
MOQ:	2pcs
Price:	Negotiate
Packaging Details:	cartons
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

Document:

Power Input:

DC24 ~ 80V

Encoder Feedback:

Incremental Encoder

Communication:

RS232, RS485, CAN Interface

Rated Output Current:

Digital Inputs:

4-way PNP/NPN Type Signal Input

Digital Outputs:

2-way PNP/NPN Type Signal Output

Overloaded:

Load = 100-300%.

Ambient Humidity:

90% RH Or Less (no Condensation)

Ambient Temperature:

-20 To 55°C (non-freezing)

Defend:

Reverse Power Input, Phase To Phase Short Circuit, 5V Short Circuit Busbar Over-voltage Protection, Over-current Protection, Encoder Disconnection Protection

Supply Ability:

5000pcs/month

Highlight:

200W Servo Driver

12A DC Servo Motor Driver

Low-voltage Incremental Encoder Driver

Product Description

Low-voltage 200W 12A Servo Driver for Incremental Encoder Servo Motor

The Low-voltage 200W 12A Servo Driver is a compact, high-performance digital drive designed specifically to control 48VDC permanent magnet synchronous servo motors (PMSM) equipped with incremental encoders. As the intelligent control core of the motion system, it receives high-level motion commands and translates them into precise current, velocity, and position control of the motor. Featuring advanced control algorithms, robust protection circuits, and flexible interfacing options, this driver delivers smooth, efficient, and reliable operation for a wide range of automation applications, from mobile platforms to precision industrial machinery.

Technical Specifications

Power Input	DC24 ~ 80V
Encoder Feedback	Incremental encoders (standard incremental, wire-saving, ABZ only without Hall) Absolute encoder (singleturn/multiturn, RS485 protocol) (only supported by AT hardware version)
Communication	RS232, RS485, CAN interface; supports both Modbus and CANopen protocols (-CO version)
Rated Output Current	12A
Ambient Temperature	-20 to 55°C (non-freezing)

Applications

This versatile servo driver forms the perfect control pair with a matching 200W 48V servo motor for demanding applications across industries:

Mobile Robotics & AGVs: Provides efficient, battery-friendly control for drive wheels, steering mechanisms, and robotic arm joints in automated guided vehicles and mobile platforms.
Precision Automation: Ideal for semiconductor equipment (wire bonders, die sorters), electronic assembly machines, and laser processing systems requiring micron-level accuracy.
Packaging & Material Handling: Drives conveyor synchronization, pick-and-place units, filling stations, and label applicators with high repeatability and speed.
