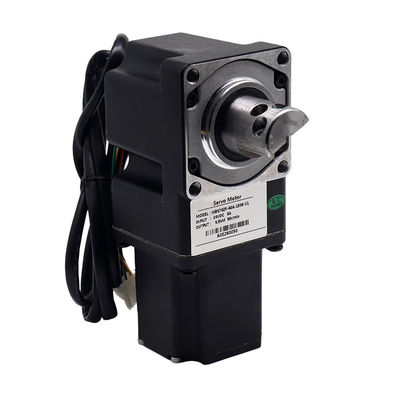

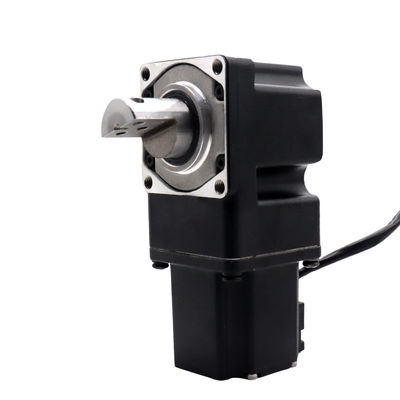

40W BLDC Servo Motor with 5.5Nm Output Torque and Anti-Collision for Swing Gates IP54 Rated

Brand Name:	CSJY
Model Number:	MBS70ZF-40A-1836-V1
MOQ:	2PCS
Price:	Negotiate
Packaging Details:	cartons
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/Rohs

Document:

Rated Voltage:

DC24V

Rated Power :

Rated Current:

Rated Speed:

1800rpm

Gear Ratio:

Output Torque:

5.5nm

IP Grade:

Rated Torque:

0.21nm

Working Temperature:

-25° C~+70° C

Life:

＞5000h

Supply Ability:

5000pcs/month

Highlight:

5.5Nm Output Torque BLDC Servo Motor

Anti-Collision Speed Gate Motor

IP54 Rated Swing Gate Motor

Product Description

40W BLDC Servo Motor Output Torque 5.5nm For Anti-collision Swing Gate

Product Overview

Engineered for modern pedestrian access control, this 40W Brushless DC (BLDC) Servo Motor delivers a powerful 5.5Nm output torque specifically for anti-collision swing gate systems. Operating on a safe 24V DC power supply, this compact actuator is designed to automate swing barrier gates, speed gates, and turnstiles in high-traffic environments such as corporate lobbies, schools, and stadiums. Unlike traditional AC motors, this BLDC servo solution combines the precision of servo control with the durability of brushless technology. It features a high-resolution encoder for accurate position feedback and a robust gear reduction system to ensure reliable, maintenance-free operation.

Technical Specifications

Rated Voltage	DC24V
Rated Power	40W
Rated Current	3A
Rated Speed	1800rpm
Gear Ratio	1:36
Output Torque	5.5Nm
IP Grade	IP54
Rated Torque	0.21Nm
Working Temperature	-25°C to +70°C
Life	>5000 hours

Key Features

High-Precision Servo Control: Equipped with a 2400-line incremental encoder (providing up to 12,000 pulses per revolution), this motor offers precision 400 times higher than standard brushless motors, ensuring exact positioning for swing arms and consistent soft-start/stop motion.
Robust 5.5Nm Output Torque: Utilizing a 1:36 high-precision planetary gearbox, the motor delivers a rated output torque of 5.5Nm, providing ample force to drive gate leaves smoothly and reliably under various conditions.
Integrated Safety & Anti-Collision Logic: Designed for "anti-collision" applications, the motor works with servo vector control algorithms to detect obstructions instantly. The system supports 2x current overload capacity, ensuring strong push-back force while enabling sensitive object detection to prevent accidents.
Compact & Durable Mechanical Design: The motor features a slim 70mm body width and a thickened 30mm D-type output shaft to withstand violent impact and torsional stress. The internal gearing utilizes a high-strength butterfly gear structure for enhanced impact resistance.
Maintenance-Free BLDC Technology: With no brushes to wear out, this motor offers a long operational life (>5000 hours) and quiet operation. The 24V DC low-voltage operation ensures safety for installers and end-users.

Applications

Exhibition

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a professional barrier gate manufacturer with over 10 years of experience.

Do you provide OEM service?

Yes, we offer OEM services including logo printing on barrier gates and custom barrier arm sizes to meet your requirements.

Lead time for standard items?

1-50 sets: 3-5 working days; 50-100 sets: 6-10 working days; 100-500 sets: 11-20 working days. Custom logo orders require 3-10 additional working days.

Do you provide quality guarantee/warranty and after-sales service?

We provide a one-year standard warranty and excellent after-sales service.

Do you provide samples?

No, we do not provide free samples. The minimum order quantity for our products is 1 piece.

What payment methods do you accept?

We accept T/T or Alibaba payments.

What kind of technical support do you provide?

We have a professional R&D and technical team to assist with any product technical problems.

How do you ship products?

We ship by air or by sea. For quantities over 100 sets, sea shipping is recommended to reduce costs.
