Robot Servo Motor

48V 400W 3000rpm Robot Servo Motor Integrated Servo Motor for Robotic Arm Automation Control

All Category

Turnstile Gate Controller

Ms. Chilli

Chillijy@jiayume.com

15218146199

15218146199

Contact Now

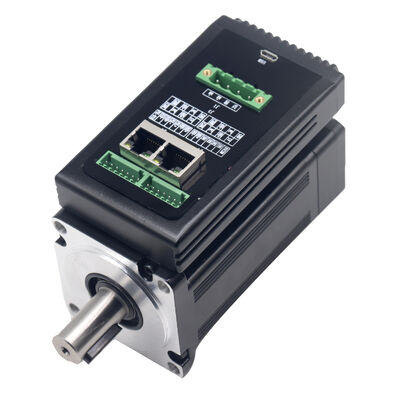

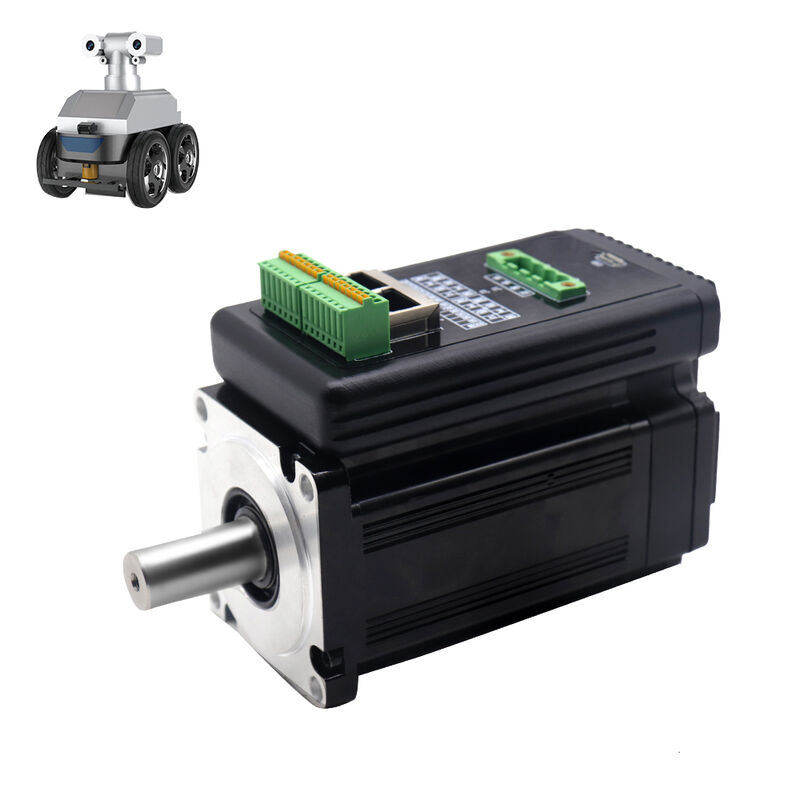

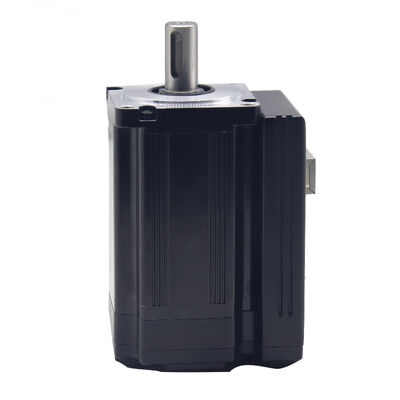

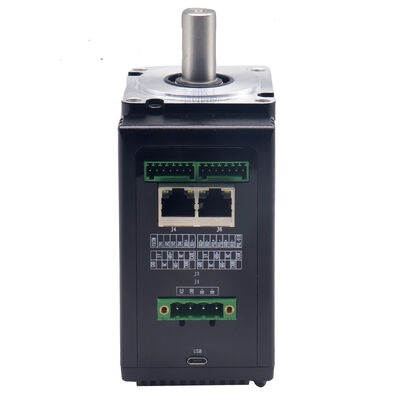

48V 400W 3000rpm Robot Servo Motor Integrated Servo Motor for Robotic Arm Automation Control

Brand Name:	CSJY
Model Number:	GAl400
MOQ:	2
Price:	Negotiate
Packaging Details:	carton
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, Rohs

Model Name:

GAL400-ST-RC-G-00

Power Supply Input:

DC24~ 50V (48V)

Rated Power Pn(W):

Rated Speed(rpm):

3000rpm

Rated Torque(Nm):

1.27nm

Maximum Torque(Nm):

3.81nm

Maximum Continuous Operating Current (A):

Encoder Feedback:

2500 Lines Incremental Encoder

Communication:

RS232, RS485, CAN Interface; Supports Both Modbus And CANopen Protocols (-CO Version)

Operating Ambient Temperature:

-20 To 55°C (no Freezing)

Supply Ability:

50000 per year

Highlight:

48V Robot Servo Motor

400W Integrated Servo Motor

3000rpm DC Servo Motor

Product Description

48V 400W Integrated Servo Motor And Driver For Robotic Arm Automation Control

High-performance integrated servo motor and driver solution designed for robotic arm automation and precision control applications.

Supporting Functions

Modbus serial communication protocol (RS485)
Upper computer software with oscilloscope function for parameter modification, monitoring, and debugging
Serial port burn-in download tool with support for online remote serial port upgrade

Robot Servo Motor Features

Highly integrated design reduces installation complexity and saves space
Eliminates matching process between driver and motor, reducing cost
EtherCAT/CANopen protocol support with wide voltage input (24V-80VDC)
Optional off brake protection
Integrated single-turn incremental encoder with limited zero memory
Speed and position feedforward parameter configuration for improved response
Integrated I/O for positive limit, negative limit, origin, multi-function digital output, and pulse input detection
Real-time fault monitoring and protection including overcurrent, overload, overvoltage, undervoltage, overheating, overspeed, and out of tolerance protection
Application scenarios and development kit support for multiple scenarios, shortening development cycles

Robot Servo Motor Specifications

Parameter	Specification
Power Supply Input	DC24-50V (48V)
Rated Power Pn(W)	400W
Rated Speed (rpm)	3000 rpm
Rated Torque (Nm)	1.27 Nm
Maximum Continuous Operating Current (A)	10A
Encoder Feedback	2500-line incremental encoder
Communication	RS232, RS485, CAN interface; supports Modbus and CANopen protocols (-CO version)
Operating Ambient Temperature	-20 to 55°C (no freezing)
Environmental Humidity	90% RH or less (no condensation)
Protection Features	Power input reversed, phase to phase short circuit, 5V short circuit, Busbar overvoltage protection, overcurrent protection, encoder disconnection protection

Robot Servo Motor Advantages

Motor winding protects power supply from short circuit
Motor winding inter-phase short circuit protection
Encoder disconnection protection
Over-voltage protection
Over-current protection

Applications

AGV servo motor
Logistics sorting systems
Medical instruments
3C equipment
Autonomous Harvesting Robot
Educational Robotics

Frequently Asked Questions

Q1. What are your products used for?

A: Our products are used in packaging machines, AGV machines, logistics sorting machines, medical instruments, and various automation equipment.

Q2. What payment methods do you accept?

A: We accept PayPal, TT (Telegraphic Transfer), and Money Gram.

Q3. What shipping methods do you use?

A: For samples or small batches, we recommend air shipping (DHL, FedEx, TNT, UPS, EMS, or Aramex). We provide tracking numbers after shipment. For mass production or large batches, ocean shipping/sea shipment is recommended.

Q4. What is the lead time for products?

A: Standard samples: 2-5 days. Mass production lead time depends on quantity requirements. Note: Local customs may charge import taxes. Delivery times may vary based on postal service and customs processing.

Q5. What is your warranty period?

A: Warranty period: 12 months. We provide lifelong technical service and after-sales support.

Q6. Can I get a free sample?

A: Sorry, we do not provide free samples.

Tags:

400w Robot Servo Motor

Robot 1000w servo motor

11A Robot Servo Motor
