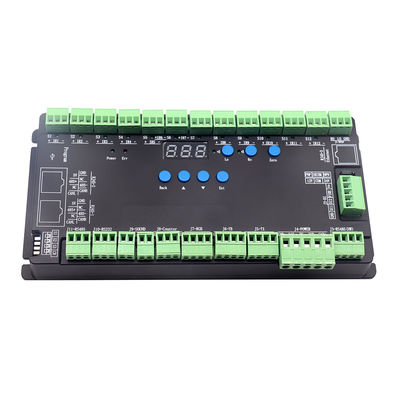

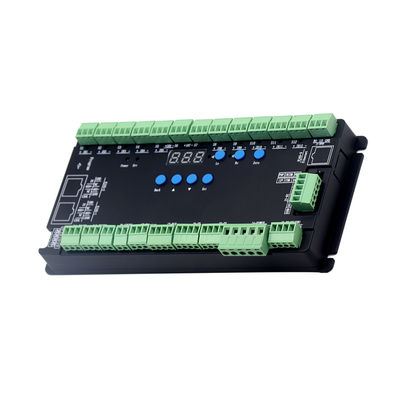

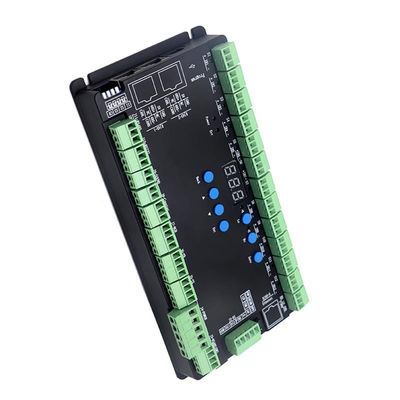

Turnstile Gate Controller Support 16 Pairs Sensor Interface for Metro Flap Barrier Gate

Brand Name:	CSJY
Model Number:	JMC1810-ST-R-P-16
MOQ:	2
Price:	Negotiate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Document:

Input Voltage:

DC 24 ~ 30V

Reference Current:

Single-sided 3A

Infrared Sensor Input:

16 PAIRS, Support PNP Or NPN

Communication Interface:

RS232/RS485/CAN

Hardware Protection:

Under-voltage, Over-current, Input Reversal

Firefighting Interface:

On-board NPN Input

Working Environment Temperature:

-20℃ ~ 55℃

Application:

Flap Gate Barrier

Counting Output:

In|out Two Ways, Dry Node Output

Digital Tube Debug Button:

On-board

Supply Ability:

1000pcs

Product Description

Turnstile Gate Controller Support 16 Pairs Sensor Interface for Metro Flap Barrier Gate

Product Description

The Turnstile Gate Controller with 16 Pairs Sensor Interface is a high‑capacity control unit engineered for metro flap barrier gates. Designed to manage up to 16 independent infrared sensor pairs, it delivers exceptional detection accuracy and system responsiveness in high‑throughput transit environments. Acting as the central logic controller, it processes sensor inputs to coordinate flap opening/closing, direction control, anti‑passback, and safety interlocking. With robust industrial construction and advanced fail‑safe mechanisms, this controller ensures reliable, 24/7 operation in demanding access control applications.

Features

① 16‑Pair Sensor Management – Supports up to 16 infrared sensor pairs, providing comprehensive coverage for pedestrian detection, position tracking, and safety zones along the flap barrier passage.

② High‑Speed Processing – Real‑time microprocessor ensures instant response to beam interruptions, enabling smooth flap operation even during peak passenger flow.

③ Integrated Safety Logic – Built‑in anti‑pinch and obstacle detection algorithms prevent flap closure when a passenger or object is detected, enhancing user safety.

④ Directional & Anti‑Passback Control – Manages entry/exit logic and prevents unauthorized tailgating or piggybacking.

⑤ Sound and light control: Welcome light, pass light, RGB tricolor light, status light,Speaker (8W 4Ω), Buzzer (12V 100mA)

⑥ Infrared sensor input: PNP|NPN NO|NC 12V|24V,12 independent IR interfaces on board,External IR expansion board available

Applications

Metro and subway flap barrier gates
Automated fare collection (AFC) systems in high‑traffic transit hubs
Airport security checkpoint turnstiles
Access control for business parks, government buildings, and data centers
Stadiums, amusement parks, and large venues requiring high‑throughput pedestrian management
Industrial facilities with strict personnel access requirements
