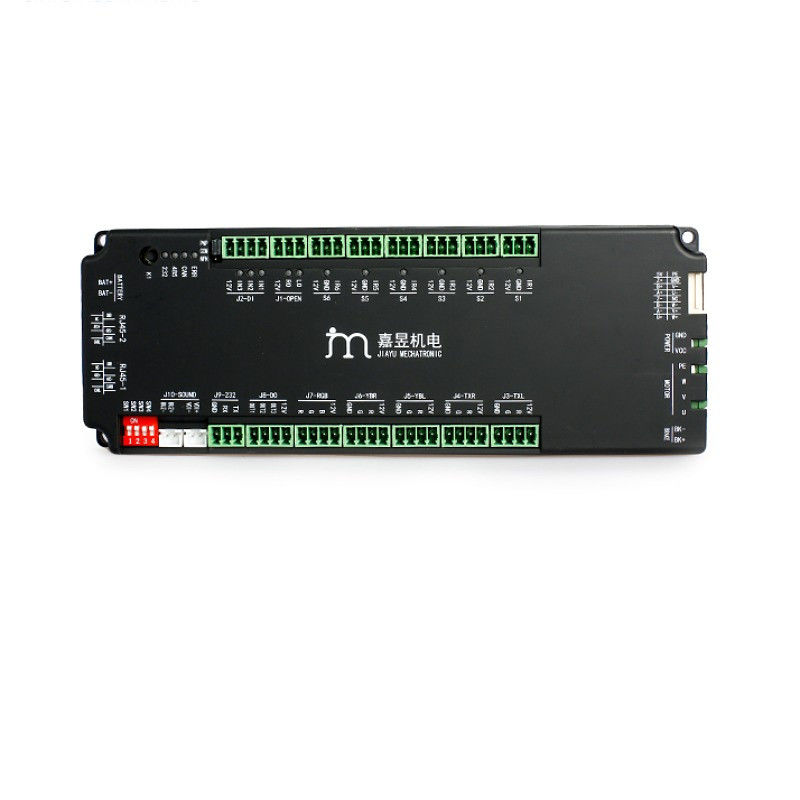

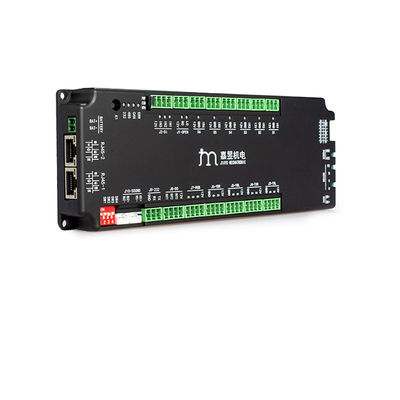

Integrated Driver and Controller Function Control Board for Swing Gate Turnstile

Brand Name:	CSJY
Model Number:	JMC4805
MOQ:	2
Price:	Negotiate
Packaging Details:	carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Document:

Input Voltage:

DC 24

Feedback Inputs:

Incremental Encoder

Communication Ports:

RS232, RS485 (Modbus RTU), Optional CAN Bus

Obstacle Detection Method:

Motor Current Monitoring + Encoder Stall Detection

Protection Features:

Overcurrent, Overvoltage, Undervoltage, Short Circuit

Rated/peak Current:

5A / 15A

Infrared Input:

6 Independent Interfaces, Compatible With PNP And NPN

Dedicated Output:

1-way Clutch Output

Power Down And Open The Switch:

External 12V 1.3AH Battery

Operating Ambient Temperature:

-20℃ ~ 55℃

Supply Ability:

Product Description

Integrated Driver and Controller Function Control Board for Swing Gate Turnstile

Product Description
Designed as the central intelligence unit for automatic swing gate turnstiles, this Integrated Driver and Controller Function Control Board combines motor drive electronics, logic control, and I/O interfacing into a single, compact PCB. It eliminates the need for separate drive and control modules, simplifying installation, reducing wiring complexity, and improving overall system reliability for access control applications.

The board integrates a powerful microcontroller (MCU) with pre-programmed turnstile logic, supporting various operational modes (bi-directional, one-way, free passage, locked). It features multiple input/output ports for connecting to external access control systems (card readers, biometric scanners, push buttons), indicator lights, and safety sensors. Built-in protection circuits (overcurrent, overvoltage, short circuit, thermal shutdown) ensure safe operation in high-traffic environments.

Technical Specifications

Input voltage	24–48 VDC
Rated/peak current	5A / 15A
Adapt the motor	Low voltage servomotor
Communication interface	RS232 / RS485 / CAN
Infrared input	6 independent interfaces, compatible with PNP and NPN
Violent breaking through the gate	Built-in brake module
Encoder feedback	Incremental
Input and output signals	2 door openings + 3 expansion inputs/outputs

Typical Applications

Swing Gate Turnstiles (pedestrian access control, optical turnstiles)
Speed Lanes with glass or metal wings
Automatic Entrance/Exit Gates for offices, metro stations, airports, stadiums
Anti-Tailgating Security Pedestals
Retrofit Kits for existing manual swing gates (motorization upgrade)
