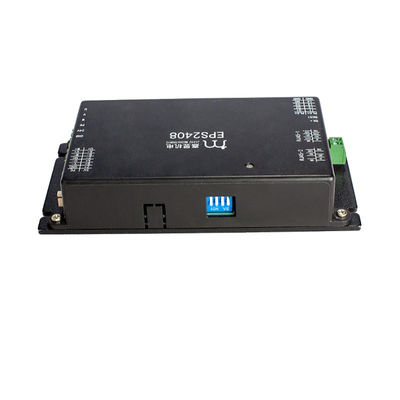

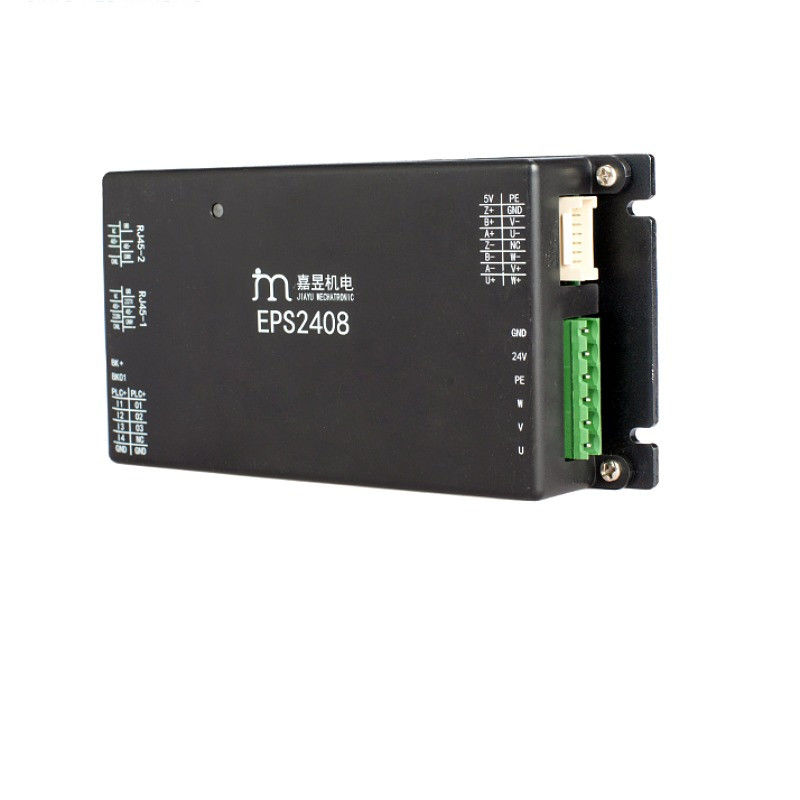

Compact Design Speed Gate DC Servo Drive 24V 8A

Product Details

Place of Origin: China

Brand Name: JIAYU

Certification: CE

Model Number: EPS2408-AD

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: pakeage

Delivery Time: 10-15days after payment

Payment Terms: TT

Supply Ability: 500pcs per month

Get Best Price
Highlight:

24V 8A Speed Gate Drive

,

24V 8A DC Servo Drive

,

Compact Speed Gate DC Servo Drive

Input Voltage:
DC 24 / 48V
Rated / Peak Current:
8A / 24A
Feedback:
Incremental Encoder With HALL
Communication:
RS232/RS485/CAN
Digital I/O:
4 IN 3 OUT, Optocouplers Isolation
Special Interface:
1 Output For Clutch Brake
Hardware Protection:
Lowvoltage, Overvoltage, Overcurrent, Overheating
Working Temperature:
-20℃ ~ 55℃
Application:
Fast Gate,Sliding Door,Wing Brake,Security Equipment
Weight:
0.2 KG
Input Voltage:
DC 24 / 48V
Rated / Peak Current:
8A / 24A
Feedback:
Incremental Encoder With HALL
Communication:
RS232/RS485/CAN
Digital I/O:
4 IN 3 OUT, Optocouplers Isolation
Special Interface:
1 Output For Clutch Brake
Hardware Protection:
Lowvoltage, Overvoltage, Overcurrent, Overheating
Working Temperature:
-20℃ ~ 55℃
Application:
Fast Gate,Sliding Door,Wing Brake,Security Equipment
Weight:
0.2 KG
Compact Design Speed Gate DC Servo Drive 24V 8A

 Speed Gate Drive DC 24v 8A with compact design for speed gate



Features of Speed Gate Drive
  • Adaptive low voltage DC servo motor, incremental encoder feedback interface;
  • Integrated industry-leading swing brake and wing brake channel movement module control logic, real-time detection of motion state, to meet the requirements of safe passage;
  • For violent brake breaking and other use scenarios, the internal design of a special module to ensure the stable work of the driver and power supply.
  • It supports RS232, RS485, CAN and other communication modes, provides Modbus communication protocol, and CAN interconnect with channel controller.
  • Support multiple driver networking, can be used for double door or more channel gate;
  • Supporting digital key box, LCD key box and other debugging tools;



Advantages of Speed Gate Drive
  • Support single machine operation, to meet the control requirements of unilateral structure;
  • Suitable for swing brake, wing brake, three roller brake and other standard channel brake;
  • Support multiple driver networking, can realize multiple groups of gate combination control;
  • It can be matched with JMC1514 channel controller to form the industry-leading channel gate electronic control system;
  • Modbus communication protocol is provided, which can be adapted to the third party control board.

Applications of Speed Gate Drive

① Airports

② Ports

③ Railway station

④ Subway station

⑤ Bus station

⑥ Commercial building

⑦ Residential communities

⑧ School

⑨ Expressway station




Compact Design Speed Gate DC Servo Drive 24V 8A 0



Dimension of Speed Gate Drive

Compact Design Speed Gate DC Servo Drive 24V 8A 3



Specification of Speed Gate Drive

Brand Name
JIAYU
Model Number
EPS2408-AD
Input Voltage
DC 24 / 48V
Rated / Peak Current
8A / 24A
Feedback
Incremental Encoder with HALL
Incremental Encoder
RS232/RS485/CAN
Digital I/O
4 IN 3 OUT, Optocouplers Isolation
Special Interface
1 output for clutch brake
Hardware Protection
Low Voltage, Over Voltage, Over Current, Overheating
Working Temperature
-20℃ ~ 55℃
Weight
0.2 KG
Application
for Swing Gate / Flap Gate / Sliding Gate etc
Compact Design Speed Gate DC Servo Drive 24V 8A 5
Compact Design Speed Gate DC Servo Drive 24V 8A 7
Compact Design Speed Gate DC Servo Drive 24V 8A 9
Compact Design Speed Gate DC Servo Drive 24V 8A 11
Compact Design Speed Gate DC Servo Drive 24V 8A 13

Compact Design Speed Gate DC Servo Drive 24V 8A 17

Compact Design Speed Gate DC Servo Drive 24V 8A 20


Compact Design Speed Gate DC Servo Drive 24V 8A 24



FAQ

Q1: Can I install it myself?
A: Yes, it will be easy to install. We will have installation instructions and videos.
Q2: Is the product waterproof?
A: Yes, our products are waterproof and can be used outdoors.
Q3: Are you a distributor or a manufacturer?
A: Hello,we are A manufacturer, the factory sells directly, the price and service have advantages.

Q4: How is the freight calculated?
A: It varies according to the delivery address. For details,you can consult the online
customer service staff.
Q5: How long is the production cycle?
A: Conventional products are basically available in stock, and the production cycle of customized products is about one week.
