Home > products > High Torque DC Servo Motor > 5.6Nm 100RPM 24 Volt Servo Motor 70W Low Noise 80mm Dia

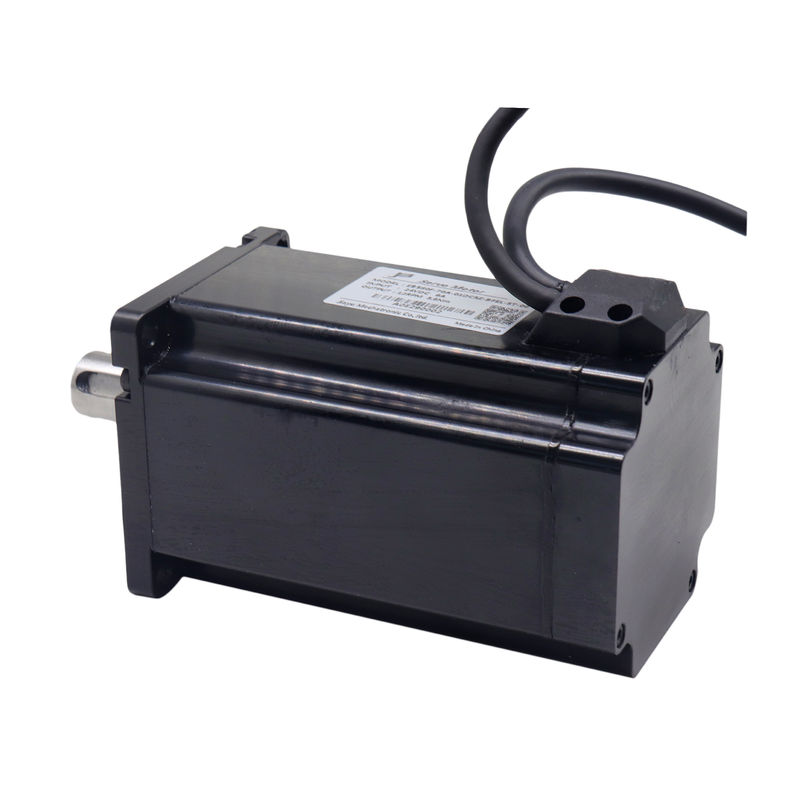

5.6Nm 100RPM 24 Volt Servo Motor 70W Low Noise 80mm Dia

Product Details

Place of Origin: China

Brand Name: Jiayu

Certification: CE

Model Number: EBS80F-70A-01DC5Z-BFEL-ST-00

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: package

Delivery Time: 10-15days after payment

Payment Terms: TT

Supply Ability: 500pcs per month

Get Best Price
Highlight:

100RPM 24 Volt Servo Motor

,

5.6Nm 24 Volt Servo Motor

,

80mm Dia 24V Servo Motor

Product Name:
Dc Servo Motor
Usage:
Flap Barrier Gate
Application:
Speed Gate Turnstile
Noise:
Low Noise Level
Protect Feature:
Waterproof
Continuous Current(A):
5.9A
Efficiency:
IE 2
Rated Voltage:
Dc 24v
Power:
70w
Rated Torque:
5.6nm
Diameter:
80mm
Rated Speed:
100rpm
Product Name:
Dc Servo Motor
Usage:
Flap Barrier Gate
Application:
Speed Gate Turnstile
Noise:
Low Noise Level
Protect Feature:
Waterproof
Continuous Current(A):
5.9A
Efficiency:
IE 2
Rated Voltage:
Dc 24v
Power:
70w
Rated Torque:
5.6nm
Diameter:
80mm
Rated Speed:
100rpm
5.6Nm 100RPM 24 Volt Servo Motor 70W Low Noise 80mm Dia
70W 5.6Nm DC24V 100RPM servo motor for speed gate turnstile

Product description
Turnstile servo motor series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 2400 lines encoder, suitable for indoor and outdoor situation, easy to install, and the bldc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.

Specification
item
value
Warranty
3months-1year
Place of Origin
China
Brand Name
jiayu
Model Number
EBS80F-70A-01DC5Z-BFEL-ST-00
Usage
flap barrier gate
Certification
ce, RoHS
Type
SERVO MOTOR
Torque
5.6nm
Construction
Permanent Magnet
Protect Feature
Waterproof
Speed(RPM)
100RPM
Continuous Current(A)
5.9A
Efficiency
IE 2
Product Name
dc servo motor
Rated Voltage
dc 24v
Power
70w
Rated Current
5.9A
Rated torque
5.6nm
Noise
Low Noise Level
Application
speed gate turnstile
Feature
Long Life Time
Diameter
80mm
Rated speed
100rpm

5.6Nm 100RPM 24 Volt Servo Motor 70W Low Noise 80mm Dia 15.6Nm 100RPM 24 Volt Servo Motor 70W Low Noise 80mm Dia 25.6Nm 100RPM 24 Volt Servo Motor 70W Low Noise 80mm Dia 3

Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

5.6Nm 100RPM 24 Volt Servo Motor 70W Low Noise 80mm Dia 4

FAQ

1.Are you Factory or Trader?
we are factory,and have professional R.&D team as introduced in company information.
2.How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.
4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate controltechnology.
Committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automaticgate control movement.
5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,Professional solutions in installation and maintance.
6.Do you get the relevant certifications?
All products are made according to ISO90o1,CE requirements.
7.How about the delivery?
-Sample:3-5days
-Bulk order:15-30 days.
