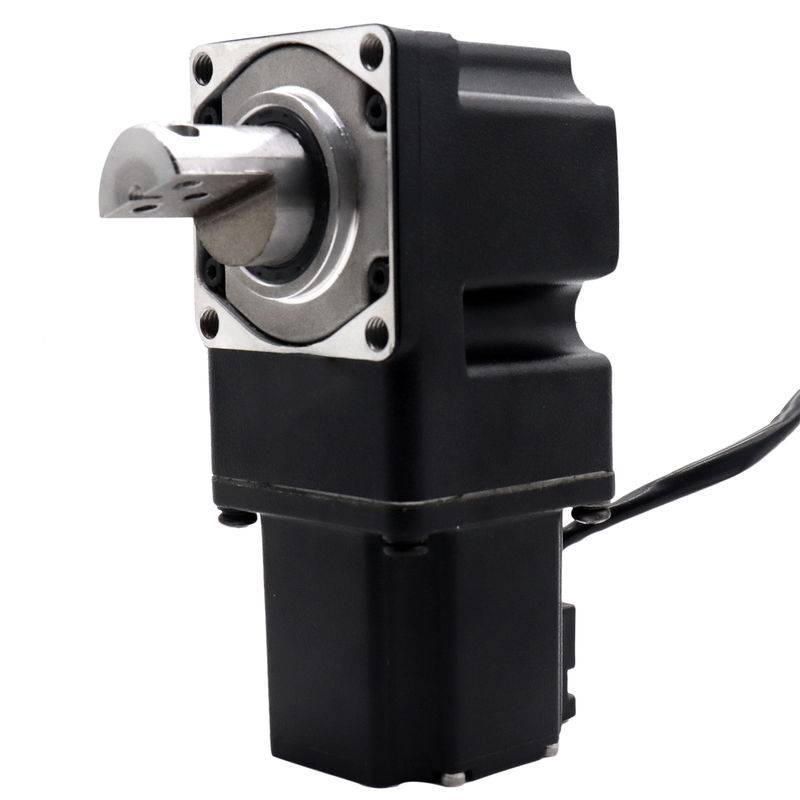

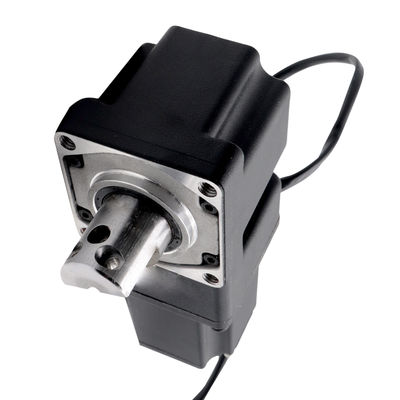

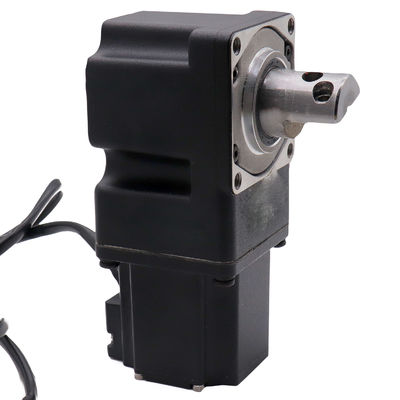

70mm Diameter 0.21nm Torque 1:36 Ratio BLDC Servo Motor with Integrated Gearboxes

Brand Name:	Jiayu
Model Number:	GMBS70ZF-40A-1836
MOQ:	2pcs
Price:	Negotiable
Packaging Details:	package
Payment Terms:	TT

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

Commutation:

Brushless

Speed(RPM):

1800rpm

Continuous Current(A):

Rated Speed:

1800rpm

Rated Voltage:

24VDC

Rated Power:

40w

Motor Diameter:

70mm

Rated Torque:

0.21nm

Encoder Lines:

2400lines

Ratio:

1:36

Supply Ability:

500pcs per month

Highlight:

40W BLDC Servo Motor

BLDC Servo Motor 24V

1800rpm Brushless Servo Motor

Product Description

Brushless 1800rpm 40W BLDC Servo Motor 24V Integrated Gearboxes

Product Description

Swing gate motor GMBS70ZF series are designed to work with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting. Adopts 2400 lines encoder, suitable for indoor and outdoor situations, easy to install. The BLDC servo motor is widely used for applications like stadium, apartment, gym, museum, station, library and factory etc.

Features

40W Brushless servo motor work with 24V power supply
High-resolution position feedback with 2400 lines can realize accurate positioning with 12,000 pulses in a single turn, the resolution is 400 times higher than traditional brushless motors
The widest part of the motor is 70 mm, and the double movement structure saves the width space occupied by the motor, only 140 mm. The highest part of the motor is 71 mm, greatly saving the top space of the cabinet
D type motor shaft, easy to install; The motor shaft is thickened to 30 mm to prevent the violent break-in from damaging the shaft
Rated speed of motor with 1:36 reduction ratio, rated output torque up to 5.5NM
The inner gear uses high strength butterfly gear to resist impact
With servo overload characteristics, can achieve 2 times current overload, strong push resistance than the brushless motor

Advantages

High-resolution position feedback with 2400 lines
With servo closed loop control, can achieve 2 times current overload, strong push resistance is greater than the brushless force
300mm acrylic door panel, opening time up to 0.4 seconds
Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection

Specifications

Model Number	GMBS70ZF-40A-1836
Type	Brushless Motor
Torque	0.21nm
Protect Feature	Drip-proof
Speed(RPM)	1800rpm
Continuous Current(A)	3A
Efficiency	IE 2
Rated speed	1800rpm
Rated voltage	24VDC
Rated Power	40w
Motor Diameter	70mm
Keywords	Long Life Low Noise
Rated torque	0.21nm
Encoder lines	2400lines
Motor Features	High Speed
Brush Type	brushless
Ratio	1:36

Frequently Asked Questions

Q: Are you trading company or manufacturer?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra?

A: Yes, we could offer the sample order by low charging than order.

Q: What is your terms of payment?

A: 100%TT in advance, 30% T/T in advance, balance before shipment.
