Product Details
Place of Origin: China
Brand Name: Jiayu
Certification: CE
Model Number: EBS60F-200B-30CC4N-B7CT-ST-01(1:40)
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: package
Delivery Time: 10-15days after payment
Payment Terms: TT
Supply Ability: 500pcs per month
Usage: |
Turnstile |
Construction: |
Permanent Magnet |
Protect Feature: |
Drip-proof |
Torque: |
20.8Nm |
Speed(RPM): |
75RPM |
Continuous Current(A): |
5.5A |
Efficiency: |
IE 4 |
Rated Voltage: |
DC 36V |
Rated Power: |
200W |
Encorder: |
1000 |
Usage: |
Turnstile |
Construction: |
Permanent Magnet |
Protect Feature: |
Drip-proof |
Torque: |
20.8Nm |
Speed(RPM): |
75RPM |
Continuous Current(A): |
5.5A |
Efficiency: |
IE 4 |
Rated Voltage: |
DC 36V |
Rated Power: |
200W |
Encorder: |
1000 |
Products description

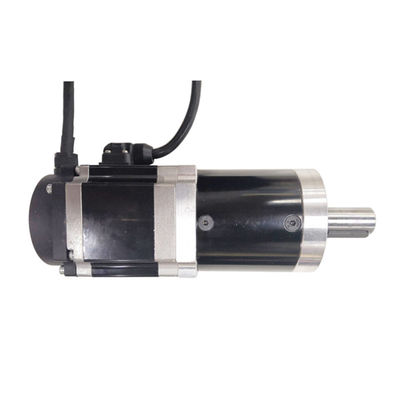

Swing barriers servo motor with gearbox high torque series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 1000 lines encoder, suitable for indoor and outdoor situation, easy to install, and the bldc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.
EBS60F-200B-30CC4N-B7CT-ST-01(1:40)
Features
►Open and close up to 30 million times
►Super over-load capacity, overload 3 times in a short time without damage
►No need induction switch, power on automatic reset, can accurately set the closing position
►Convenient maintenance, with computer software, can quickly and intuitively modify and debug parameters
►High reliability, temperature -20℃ ~ 55℃, humidity below 90% environment can also operate freely
►With RS232, RS485 communication interface.
►Integrated traffic logic + motor drive function, using servo control algorithm, open and close fastly and smoothly, accurately positioning;opening and closing the door without shaking
| Usage | turnstile |
| Construction | Permanent Magnet |
| Protect Feature | Drip-proof |
| Torque | 20.8Nm |
| Speed(RPM) | 75RPM |
| Continuous Current(A) | 5.5A |
| Efficiency | IE 4 |
| Rated Voltage | DC 36V |
| Rated Power | 200W |
| Encorder | 1000 |
Company profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
