24V DC Servo Motor
>
6A 9.4NM Output Torque 100 Watt Servo Motor For Swing Turnstile

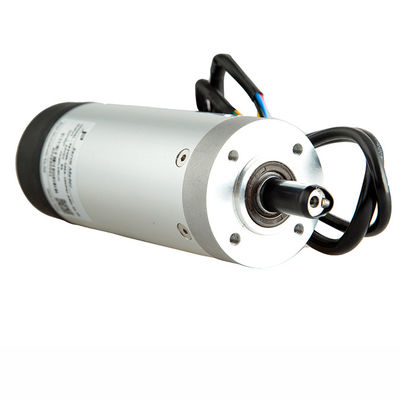

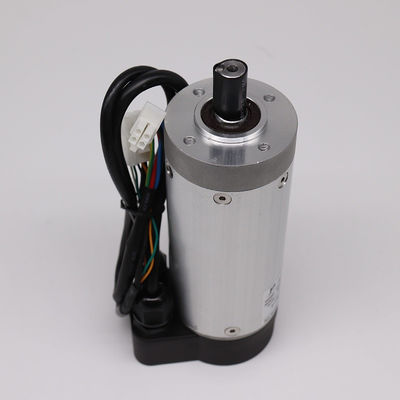

6A 9.4NM Output Torque 100 Watt Servo Motor For Swing Turnstile

Brand Name: Jiayu
Model Number: EBS59R-100A-20XP4E-B6EL-S1-00
MOQ: 2pcs
Price: Negotiable
Packaging Details: package
Payment Terms: TT
Detail Information
Place of Origin:
China
Certification:
CE
Usage:
Wing Gate Sliding Gate Servo Motor
Torque:
0.5NM
Continuous Current(A):
6A
Rated Voltage:
DC24V
Rated Power:
100W
Continuous Rated Speed:
2000RPM
Peak Current:
12A
Output Speed:
100RPM
Output Torque:
9.4NM
Encoder Resolution:
9600PPR
Supply Ability:
500pcs per month
Highlight:

9.4NM 100 Watt Servo Motor

,

6A 100 Watt Servo Motor

,

Swing Turnstile 100 Watt DC Motor

Product Description

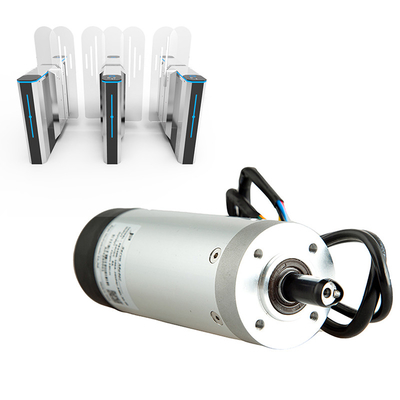

dc 24V 100W with gearbox servo motor for swing turnstile barrier gate

Product description

speed gate turnstile servo motor series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 2400 lines encoder, suitable for indoor and outdoor situation, easy to install, and the bldc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.



Features

  • High-resolution position feedback with 2400 lines can realize accurate positioning Service life is not less than
  • 6 million times. Authoritative appraisal by third party testing institution.
  • 300mm acrylic door panel, opening time up to 0.3 seconds.
  • Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.



Advantages

  • High performance motor
  • Modular design
  • High level water proof
  • Perfect structure design,value every detail in the process of manufacturing.
  • Strict inspection system ensures products quality, to protect customers’ profit based on low failure rate and low maintenance cost.
  • Prompt and professional after-sales service and technology support.

Specification
Model Number
EBS59R-A6
Usage
Swing gate and speed gate
Certification
ce
Type
SERVO MOTOR
Torque
9.4NM
Construction
Permanent Magnet
Commutation
SERVO MOTOR
Protect Feature
Waterproof
Efficiency
IE 4



Dimension

6A 9.4NM Output Torque 100 Watt Servo Motor For Swing Turnstile 1

6A 9.4NM Output Torque 100 Watt Servo Motor For Swing Turnstile 2

Positive feedback

6A 9.4NM Output Torque 100 Watt Servo Motor For Swing Turnstile 3

Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

6A 9.4NM Output Torque 100 Watt Servo Motor For Swing Turnstile 4



FAQ

Q1: Can I install it myself?
A: Yes, it will be easy to install. We will have installation instructions and videos.
Q2: Is the product waterproof?
A: Yes, our products are waterproof and can be used outdoors.
Q3: Are you a distributor or a manufacturer?
A: Hello,we are A manufacturer, the factory sells directly, the price and service have advantages.

Q4: How is the freight calculated?
A: It varies according to the delivery address. For details,you can consult the online
customer service staff.
Q5: How long is the production cycle?
A: Conventional products are basically available in stock, and the production cycle of customized products is about one week.
