Home > products > 24V DC Servo Motor > 24V DC Servo Motor 7.9A 9.3Nm 100RPM 24V DC Servo Motor For Channel Gate

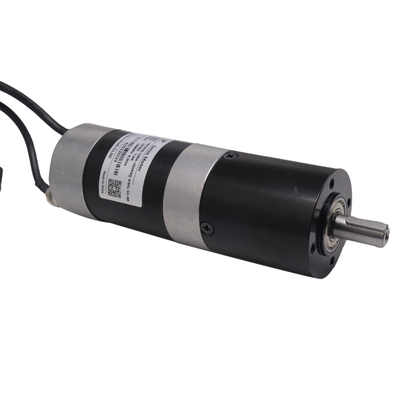

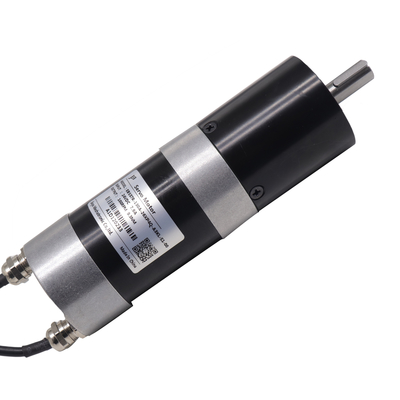

24V DC Servo Motor 7.9A 9.3Nm 100RPM 24V DC Servo Motor For Channel Gate

Product Details

Place of Origin: China

Brand Name: Jiayu

Certification: CE

Model Number: EBS57R-130A-26XP4Q-A3KL-S1-00

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: package

Delivery Time: 10-15days after payment

Payment Terms: TT

Supply Ability: 500pcs per month

Get Best Price
Highlight:

5A 2000RPM 24V DC Servo Motor

,

0.5Nm 24V DC Servo Motor

,

Channel Gate 2000RPM DC Motor

Usage:
Swing Barrier Gate Turnstile
Torque:
9.3Nm
Rated Current:
7.9A
Poles:
8
Rated Speed:
100RPM
Rated Power:
100W
Encorder:
2400
Gear Ratio:
1:26
Usage:
Swing Barrier Gate Turnstile
Torque:
9.3Nm
Rated Current:
7.9A
Poles:
8
Rated Speed:
100RPM
Rated Power:
100W
Encorder:
2400
Gear Ratio:
1:26
24V DC Servo Motor 7.9A 9.3Nm 100RPM 24V DC Servo Motor For Channel Gate

24V DC Servo Motor 7.9A 9.3Nm 100RPM 24V DC Servo Motor For Channel Gate



Product description
1. Power 100W, voltage DC24V;
2. Servo motor and precision planetary reducer integrated design, suitable for installation in the cylinder;
3. Motor with 1000 wire magnetic plaiting, suitable for vector control, accurate positioning;
4. Motor with 1:20 metal planetary reducer, suitable for 300 mm channel (acrylic) 0.3 seconds to open the door;
5. The service life of motor opening and closing is not low voltage 10 million times, and the third party testing structure identification;
6. The motor grease is made of low-temperature resistant material, which is suitable for the ambient temperature from -25 degrees to 70 degrees. 7. The noise is lower than the traditional planetary reducer, reaching 58 dB;
8. Comply with CE export standards
9. Waterproof joint technology of rear end cover prevents dust and water vapor from entering the encoder

10. Round body, integrated structure of motor and reducer, suitable for passage gate movement structure;
11. The body is equipped with a 1000-line incremental encoder with a standard 1:20 reduction ratio to achieve high-precision control
of movement.



Specification
item value
Warranty 3months-1year
Place of Origin China
  Guangdong
Brand Name JIAYU
Model Number EBS57R-130A-26XP4Q-A3KL-S1-00
Usage swing gate, speed gate, sliding gate Turnstiles
Certification ce
Type SERVO MOTOR
Output Torque 9.3Nm
Protect Feature Drip-proof
Output Speed(RPM) 100RPM
Continuous Current(A) 7.9A
Efficiency IE 4
Rated Voltage DC 24V
Rated Power 100W
Poles 8
Encorder 2400
Gear Ratio 1:26



Product description
24V DC Servo Motor 7.9A 9.3Nm 100RPM 24V DC Servo Motor For Channel Gate 1
24V DC Servo Motor 7.9A 9.3Nm 100RPM 24V DC Servo Motor For Channel Gate 3
Scenarios used by the customer

24V DC Servo Motor 7.9A 9.3Nm 100RPM 24V DC Servo Motor For Channel Gate 6
24V DC Servo Motor 7.9A 9.3Nm 100RPM 24V DC Servo Motor For Channel Gate 8

Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

24V DC Servo Motor 7.9A 9.3Nm 100RPM 24V DC Servo Motor For Channel Gate 10

FAQ

1.Are you Factory or Trader?
we are factory,and have professional R.&D team as introduced in company information.
2.How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.
4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate controltechnology.
Committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automaticgate control movement.
5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,Professional solutions in installation and maintance.
6.Do you get the relevant certifications?
All products are made according to ISO90o1,CE requirements.
7.How about the delivery?
-Sample:3-5days
-Bulk order:15-30 days.
