Product Details
Place of Origin: China
Brand Name: Jiayu
Certification: CE
Model Number: EBS59R-100A-20CP4E-A6JL-S0-03
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: package
Delivery Time: 10-15days after payment
Payment Terms: TT
Supply Ability: 500pcs per month
Torque: |
9.4nm |
Continuous Current(A): |
6A |
Nominal Voltage: |
DC24V |
Product Name: |
Servo Motor |
Encoder: |
2400 |
Nominal Power: |
100W |
Nominal Speed: |
100RPM |
Application: |
Swing Gate Speed Gate Flap Gate |
Encoder Resolution: |
9600ppr |
Poles: |
4 |
Torque: |
9.4nm |
Continuous Current(A): |
6A |
Nominal Voltage: |
DC24V |
Product Name: |
Servo Motor |
Encoder: |
2400 |
Nominal Power: |
100W |
Nominal Speed: |
100RPM |
Application: |
Swing Gate Speed Gate Flap Gate |
Encoder Resolution: |
9600ppr |
Poles: |
4 |

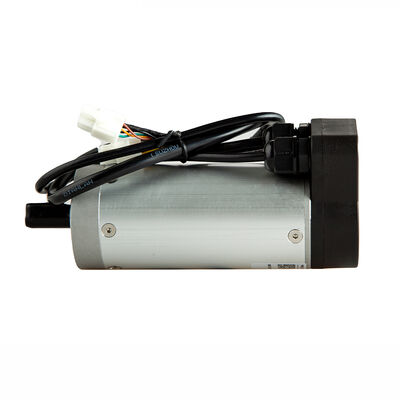

DC Servo Motor 9.4NM High Speed High Torque Servo Motor 100W 9600ppr Servo Motor
Features
1. 3-phase low-voltage servo motor with gearbox
2. High efficiency for low energy consumption
3. With encoder for motor control feedback
4. Use low temperature greases for gearbox
5. Available in reduction ratio, 1:20 & 1:49 Available in 2 wiring method
Advantages
Specification
|
|
Guangdong
|
|
Model Number
|
EBS59R-100A-20CP4E-A6JL-S0-03
|
|
Type
|
SERVO MOTOR
|
|
Speed(RPM)
|
100RPM
|
|
Nominal Voltage
|
DC24V
|
|
Nominal Current
|
6A
|
|
Nominal Torque
|
9.4NM
|
|
Nominal Power
|
100W
|
|
Poles
|
4
|
|
Encoder
|
2400
|
|
Ratio
|
1:20
|
Company profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
FAQ
Q1: Can I install it myself?
A: Yes, it will be easy to install. We will have installation instructions and videos.
Q2: Is the product waterproof?
A: Yes, our products are waterproof and can be used outdoors.
Q3: Are you a distributor or a manufacturer?
A: Hello,we are A manufacturer, the factory sells directly, the price and service have advantages.
Q4: How is the freight calculated?
A: It varies according to the delivery address. For details,you can consult the online
customer service staff.
Q5: How long is the production cycle?
A: Conventional products are basically available in stock, and the production cycle of customized products is about one week.
