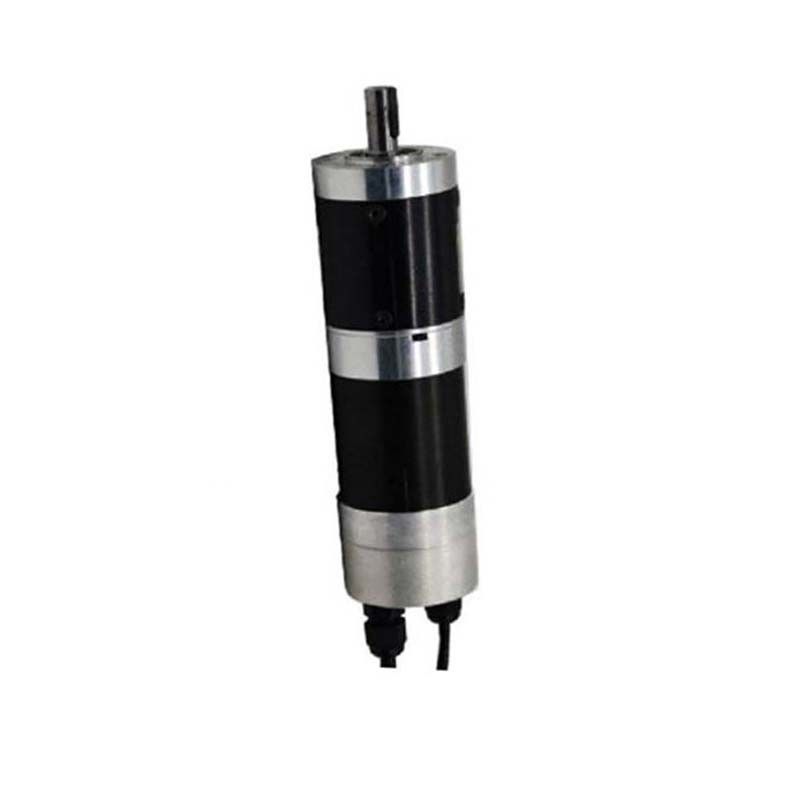

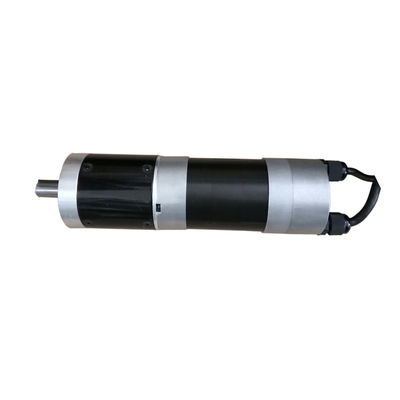

24V DC Servo Motor 5A 0.5Nm 2000RPM 130W Barrier Gate Motor 57mm

Product Details

Place of Origin: China

Brand Name: Jiayu

Certification: CE

Model Number: EBS57R-130A-26XP4E-A5JL-S0-00(1:26)

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: package

Delivery Time: 10-15days after payment

Payment Terms: TT

Supply Ability: 500pcs per month

Get Best Price
Highlight:

2000RPM 100W Barrier Gate Motor

,

Barrier Gate Motor 57mm

,

5A 0.5Nm 100W Servo Motor

Rated Voltage:
DC 24V
Rated Current:
6.5A
Rated Torque:
7.3Nm
Rated Speed:
100RPM
Rated Power:
130W
Poles:
8
Encorder:
1000
Gear Ratio:
1:26
Product Name:
Servo Motor
Encoder Line:
2400
Rated Voltage:
DC 24V
Rated Current:
6.5A
Rated Torque:
7.3Nm
Rated Speed:
100RPM
Rated Power:
130W
Poles:
8
Encorder:
1000
Gear Ratio:
1:26
Product Name:
Servo Motor
Encoder Line:
2400
24V DC Servo Motor 5A 0.5Nm 2000RPM 130W Barrier Gate Motor 57mm
24V DC Servo Motor 5A 0.5Nm 2000RPM 130W Barrier Gate Motor 57mm


Product description

Speed gate turnstile servo motor series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 2400 lines encoder, suitable for indoor and outdoor situation, easy to install, and the dc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.



Advantages

  • High-resolution position feedback with 2400 lines
  • With servo closed loop control, can achieve 3 times current overload, strong push resistance is greater than the brushless force.
  • 300mm acrylic door panel, opening time up to 0.3 seconds
  • Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.



Features:

  • Circular fuselage, motor and reducer one-piece structure, motor with 1000 line
  • Incremental encoder, the standard and reduction ratio, high precision control is implemented movement;
Specification
Model Number
EBS57R-130A-26XP4E-A5JL-S0-00(1:26)
Type
SERVO MOTOR
Torque
0.5Nm
Speed(RPM)
2000RPM
Rated Voltage
DC 24V
Rated Current
5A
Rated Torque
0.5Nm
Rated Speed
2000RPM
Rated Power
130W
Poles
8
Encorder
2400
Gear Ratio
1:26

Dimension

24V DC Servo Motor 5A 0.5Nm 2000RPM 130W Barrier Gate Motor 57mm 1

24V DC Servo Motor 5A 0.5Nm 2000RPM 130W Barrier Gate Motor 57mm 2



About us

Our factory has 16 years experience in manufacturing Automatic speed gates and road barrier parts in various types and with different access control system applications.We accpet small order and would serve customize service for clients upon special requests. You may talk with us anytime, we would feedback as soon as possible.
