Product Details
Place of Origin: China
Brand Name: Jiayu
Certification: CE
Model Number: EBS59R-A6
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: package
Delivery Time: 10-15days after payment
Payment Terms: TT
Supply Ability: 500pcs per month
Torque: |
0.5nm |
Speed(RPM): |
41RPM |
Continuous Current(A): |
6A |
Rated Voltage: |
24v |
Rated Power: |
100w |
Continuous Rated Speed: |
2000rpm |
Peak Current: |
12A |
Output Torque: |
23NM |
Torque: |
0.5nm |
Speed(RPM): |
41RPM |
Continuous Current(A): |
6A |
Rated Voltage: |
24v |
Rated Power: |
100w |
Continuous Rated Speed: |
2000rpm |
Peak Current: |
12A |
Output Torque: |
23NM |

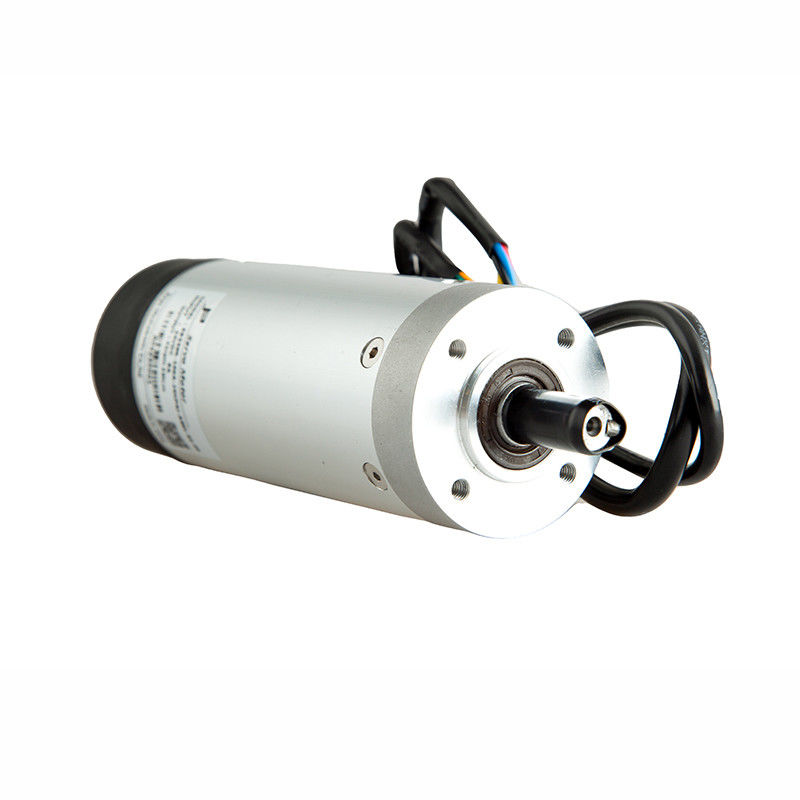

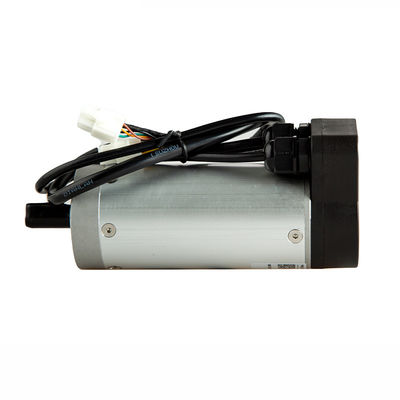

DC Servo Motor 23NM 24V Low Voltage Servo Motor With gearbox for speed gate
| Usage | swing barrier gate servo motor |
| Type | SERVO MOTOR |
| Torque | 0.5nm |
| Construction | Permanent Magnet |
| Protect Feature | Drip-proof |
| Speed(RPM) | 41RPM |
| Rated voltage | 24v |
| Rated power | 100w |
| Continuous rated speed | 2000rpm |
| Continuous rated torque | 0.5nm |
| Continuous rated current | 6A |
| peak current | 12A |
| Output speed | 41RPM |
| Output torque | 23NM |
| Product Name | low voltage servo motor |
| Noise | Low Noise Level |
Product description of DC Servo Motor
Diameter 59mm servo motor series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 2400 lines encoder, suitable for indoor and outdoor situation, easy to install, and the dc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.
Advantages of DC Servo Motor
► High-resolution position feedback with 2400 lines can realize accurate positioning Service life is not less than
► 6 million times. Authoritative appraisal by third party testing institution.
► 300mm acrylic door panel, opening time up to 0.3 seconds.
► Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.
Application of DC Servo Motor
① swing barrier gate
② speed gate
③ sliding gate
④ tripod turnstile
⑤ full height turnstile
