Product Details
Place of Origin: China
Brand Name: Jiayu
Certification: CE
Model Number: MBS70F
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: package
Delivery Time: 10-15days after payment
Payment Terms: TT
Supply Ability: 500pcs per month
Type: |
Brushless Servo Motor |
Torque: |
1.92nm |
Continuous Current(A): |
2A |
Rated Voltage: |
24V |
Rated Power: |
25W |
Continuous Rated Speed: |
2000RPM |
Continuous Rated Torque: |
0.11NM |
Peak Current: |
4A |
Output Speed: |
110RPM |
Encoder Resolution: |
12000 |
Type: |
Brushless Servo Motor |
Torque: |
1.92nm |
Continuous Current(A): |
2A |
Rated Voltage: |
24V |
Rated Power: |
25W |
Continuous Rated Speed: |
2000RPM |
Continuous Rated Torque: |
0.11NM |
Peak Current: |
4A |
Output Speed: |
110RPM |
Encoder Resolution: |
12000 |
Product description

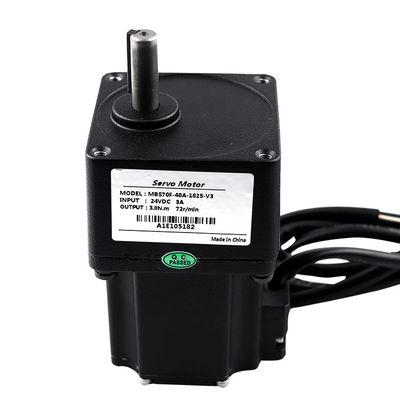

swing barriers motor MBS70F series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 2400 lines encoder, suitable for indoor and outdoor situation, easy to install, and the bldc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.
Specification
|
Model Number
|
MBS70F-25A-2018-V3
|
|
Type
|
SERVO MOTOR
|
|
Torque
|
1.92nm
|
|
Construction
|
Permanent Magnet
|
|
Commutation
|
Brushless
|
|
Protect Feature
|
Drip-proof
|
|
Speed(RPM)
|
110ppr
|
|
Continuous Current(A)
|
2A
|
|
Efficiency
|
IE 2
|
|
Rated voltage
|
24V
|
|
Rated power
|
25W
|
|
Continuous rated speed
|
2000RPM
|
|
Continuous rated torque
|
0.11NM
|
|
Continuous rated current
|
2A
|
|
Peak current
|
4A
|
|
Output speed
|
110RPM
|
|
Output torque
|
1.92NM
|
|
Encoder resolution
|
12000
|
With servo closed loop control, can achieve 2 times current overload, strong push resistance is greater than the brushless force.
The service life is not less than 6 million times. Authoritative appraisal by third party testing institution.
Motor installation size compatible with traditional brushless motor, can realize fast interchange
300mm acrylic door panel, opening time up to 0.4 seconds
Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.
With Jiayu unique magnetic plait, 12,000 pulses can be achieved;
Advantages
FAQ
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample order by low charging than order.
A: 100%TT in advance, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us as below.
