DC Servo Motor Drive

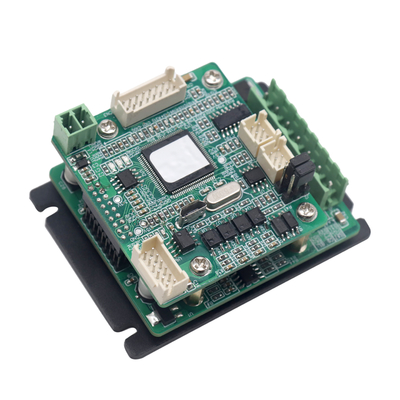

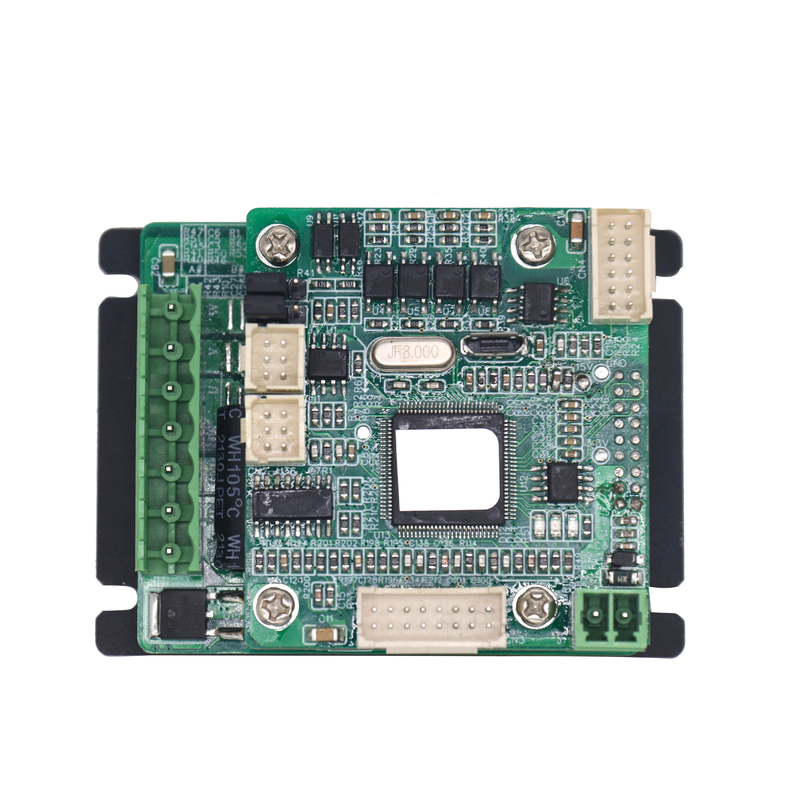

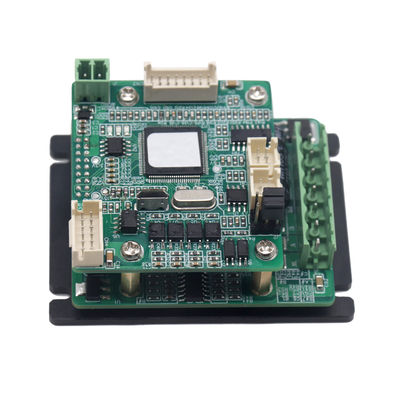

DC10V To DC36V AGV Robot Servo Drive For Logistic Sorting Warehouse

All Category

Turnstile Gate Controller

Ms. Chilli

Chillijy@jiayume.com

15218146199

15218146199

Contact Now

DC10V To DC36V AGV Robot Servo Drive For Logistic Sorting Warehouse

Brand Name:	Jiayu
Model Number:	L12-10612-ST-RC-00
MOQ:	5 pcs
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Power Input:

DC18V~48V

Encoder Feedback:

Incremental Encoder

Pulse Quantity Input:

5V Differential Input 0 To 4MHz; 24V Single-ended Input 0 To 200kHz

Digital Inputs And Outputs:

4 INPUT 2 OUTPUT

Communication:

CANopen//pulse

Protection:

Phase To Phase Short Circuit

Rated Output Current:

Ambient Humidity:

Ambient Humidity

Control Method:

Position Control Internal Position Command Control

Supply Ability:

5000 per year

Highlight:

DC36V DC Servo Motor Drive

AGV Robot Servo Drive

Logistic Sorting Warehouse Servo Drive

Product Description

DC Servo Motor Drive DC10V to DC36V AGV robot Servo Drive for Logistic Sorting Warehouse

Application features

1. Adaptation to DC servo motors up to 400W, 750W, 1000W, supporting incremental and absolute encoders.

2. Support for position control, speed control, torque control and single axis control modes.

3. RS485/CANopen bus communication for multi-axis device control.

Complementary functions
1. Modbus serial communication protocol (RS485).
2. Upper computer software with oscilloscope function for parameter modification and monitoring and commissioning.
3. Provision of serial port burn-in download tools and support for online remote serial port upgrades.

Application Features
Control method
① Position control
② Internal position command control

Position control
①Pulse volume input; electronic gear ratio;
②support for positioning completion output function.

Single axis control
①Internal command control;
②support for zero return, jogging, positioning and limit functions.

IO control
①Support for enable inputs, alarm clear inputs, command disable inputs, positive and negative limit inputs, etc..
②Support for servo-ready outputs, alarm outputs, holding brake control outputs, etc..
Company profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
