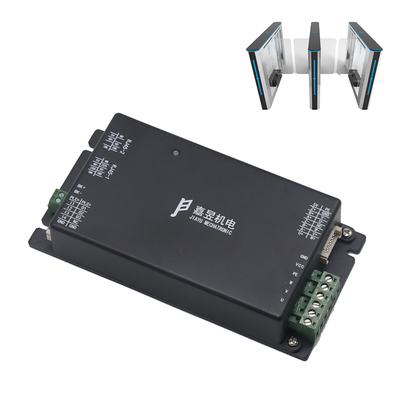

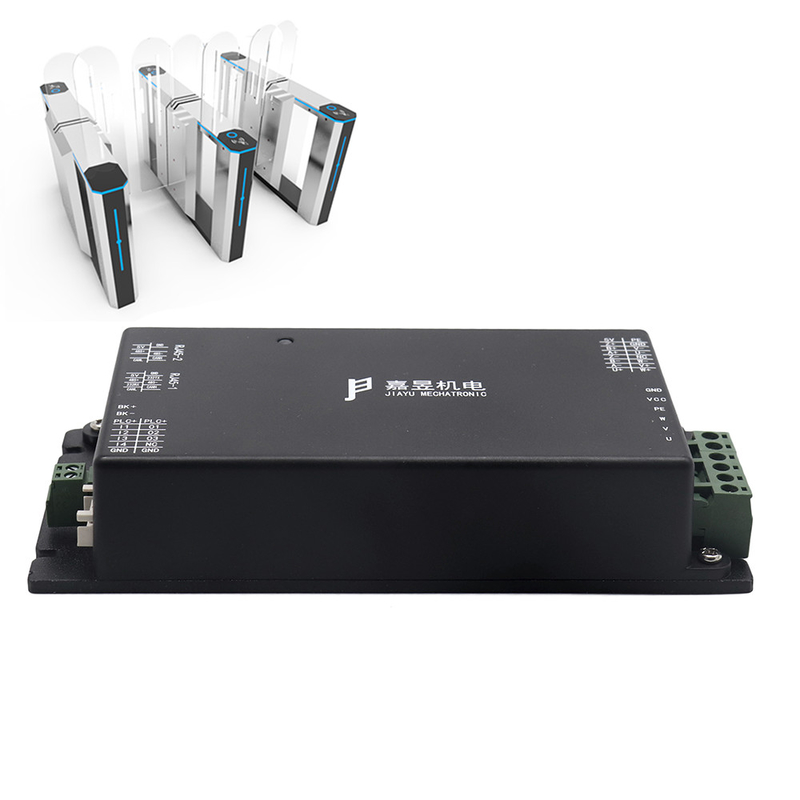

IP54 Dc Servo Motor Driver Rs485 Communication Interface For Speed Gate

Product Details

Place of Origin: China

Brand Name: Jiayu Mechatronic

Certification: CE

Model Number: EPS2408-AD

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiate

Packaging Details: carton

Delivery Time: 3 days

Payment Terms: L/C, T/T

Supply Ability: 5000pcs/month

Get Best Price
Highlight:

rs485 dc servo motor driver

,

speed gate dc servo motor driver

Application:
Swing Gate, Flap Gate
Operating Temperature:
-10℃~+55℃
Driver Rated Current:
8A
Power Supply:
DC24V
Input Voltage:
DC 15 ~ 30V
Motor Protection Class:
IP54
Drive Dimension:
150mm*72mm*29mm
Power Consumption:
100W
Application:
Swing Gate, Flap Gate
Operating Temperature:
-10℃~+55℃
Driver Rated Current:
8A
Power Supply:
DC24V
Input Voltage:
DC 15 ~ 30V
Motor Protection Class:
IP54
Drive Dimension:
150mm*72mm*29mm
Power Consumption:
100W
IP54 Dc Servo Motor Driver Rs485 Communication Interface For Speed Gate

speed gate drive rated / peak current 8a / 24a

Product Description:

Speed Gate Drive is a high-performance product designed for swing gate and flap gate. It features a compact design of 150mm*72mm*29mm, and is capable of working in a wide range of temperature from -10℃ to 55℃. It is equipped with DC 15 ~ 30V power supply and RS485, RS232, CAN communication interface, making it reliable and powerful for many applications. Speed Gate Drive is an ideal choice for efficient and smooth operation of swing gate, flap gate and other gate applications.



Technical Parameters:

Property Value
Power Supply DC24V
Type DC Servo Driver
Operating Temperature -10℃~+55℃
Driver Rated Current 8A
Application Swing Gate, Flap Gate
Motor Protection Class IP54
Drive Dimension 150mm*72mm*29mm
Communication Interface RS485, RS232, CAN
Power Consumption 100W
Input Voltage DC 15 ~ 30V
Hardware Protection Lowvoltage, Overvoltage, Overcurrent, Overheating
Digital I/O 4 IN 3 OUT
Optocouplers Isolation Yes
Support RS232, RS485 and CAN Yes
Provide Modbus communication protocol Yes
Suitable for third party controller Yes


Applications:

Speed Gate Drive, as the brand name Jiayu Mechatronic Model Number EPS2408-AD, is a high-performance and cost-effective product which is made in China. It is designed with Feedback Incremental Encoder with HALL, which makes it suitable for swing gate flap gate, and it also supports RS232, RS485 and CAN, and provide Modbus communication protocol, suitable for third party controller. It can work well at operating temperature range of -10℃~+55℃, with a power consumption of 100W and input voltage of DC 15 ~ 30V. The drive dimension is 150mm*72mm*29mm, which makes it easy to install.

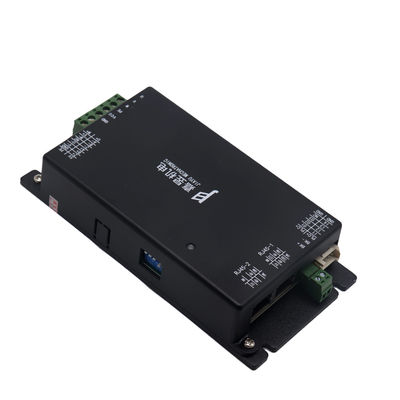

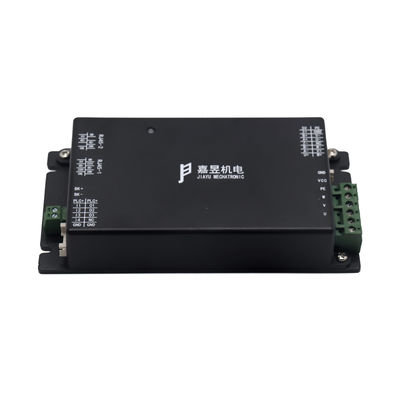

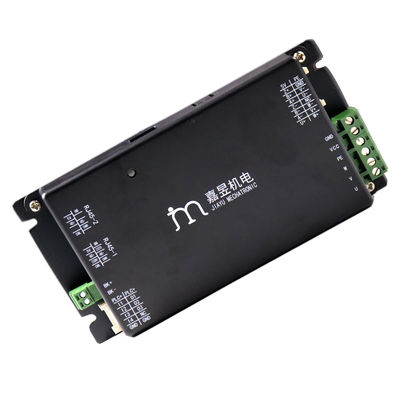

IP54 Dc Servo Motor Driver Rs485 Communication Interface For Speed Gate 0

Customization:

Jiayu Mechatronic provides a custom speed gate drive service with EPS2408-AD model. It is manufactured in China and with DC24V power supply. The input voltage range is from DC 15 to 30V and this product is suitable for swing gate and flap gate. The rated/peak current of this speed gate drive is 8A/24A and the power consumption is 100W. The dimension of this drive is 150mm*72mm*29mm.



Support and Services:

Speed Gate Drive Technical Support and Service

We provide technical support and services for the Speed Gate Drive, to ensure that customers can fully utilize the product.

  • Troubleshooting: Our experienced technical team is ready to help customers quickly identify and solve problems.
  • Installation: Our professional team offers installation services to ensure that the product is installed correctly.
  • Maintenance: We offer regular maintenance services to ensure the product is functioning optimally.
  • Training: We provide training services to help customers learn how to properly use the product.
  • Warranty: We offer a one-year warranty to ensure that customers are satisfied with their purchase.


FAQ:

  • Q: What is the Brand Name of the Speed Gate Drive?
    A: The Brand Name of the Speed Gate Drive is Jiayu Mechatronic.
  • Q: What is the Model Number of the Speed Gate Drive?
    A: The Model Number of the Speed Gate Drive is EPS2408-AD.
  • Q: Where is the Speed Gate Drive made?
    A: The Speed Gate Drive is made in China.
  • Q: What kind of product is the Speed Gate Drive?
    A: The Speed Gate Drive is a mechatronic device for controlling the speed of a gate.
  • Q: What features does the Speed Gate Drive have?
    A: The Speed Gate Drive has a wide range of features, including adjustable speed control, automatic start/stop, and safety shutdown.
