Speed Gate Drive Rated Current 8A Input Voltage DC 24V Control Board For Turnstile Gate

Product Details

Place of Origin: China

Brand Name: Jiayu Mechatronic

Model Number: MBC2406

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiate

Packaging Details: carton

Delivery Time: within 7 working days

Payment Terms: TT

Supply Ability: 5000PCS/WEEK

Get Best Price
Highlight:

Speed Gate Drive 8A

,

Turnstile Gate Dc Servo Drive

,

Speed Gate Drive DC 24V

Type:
DC Servo Driver
Operating Temperature:
-20℃~+55℃
Input Voltage:
DC 24V
Power Supply Current:
6.5A
Communication Interface:
RS232
Motor Protection Class:
IP54
Drive Dimension:
190mm*80mm(L*W)
Power Consumption:
150W
Type:
DC Servo Driver
Operating Temperature:
-20℃~+55℃
Input Voltage:
DC 24V
Power Supply Current:
6.5A
Communication Interface:
RS232
Motor Protection Class:
IP54
Drive Dimension:
190mm*80mm(L*W)
Power Consumption:
150W
Speed Gate Drive Rated Current 8A Input Voltage DC 24V Control Board For Turnstile Gate

Product Description:

Speed Gate Drive Rated Current 8A Input Voltage DC 24V Control Board For Turnstile Gate

Speed Gate Drive is a type of DC Servo Driver with dimension of 190mm*80mm(L*W) and driver rated voltage of DC24V. It provides an operating temperature range of -20℃~+55℃ with power consumption of 150W. It is integrated with industry-leading channel movement control logic and feedback incremental encoder with HALL to realizes real-time detection of the status of the movement. It is also designed with input voltage of DC 15 ~ 30V to meet the requirements of safe passage.



Features:

  • Input power supply: DC24V, dual power connection, 150W/6.5A on one side is recommended; Single power connection, 300W recommended;
  • Adaptor motor: DC brushless motor below 60W with 2400-line position feedback;
  • Communication mode: RS232 serial communication, supporting Modbus protocol;
  • Power-off: DC12V battery, or optional super capacitor module;
  • Working environment: -20℃ ~ 55℃, humidity below 90% (no condensation)
  • Infrared sensor: 6 independent interfaces, PNP, NPN normally open, open collector type;
  • Voice output: external 8W 4Ω speaker.


Technical Parameters:

Parameter Description
Product name Servo driver integrated controller function
Power Consumption 150W
Drive Dimension 190mm*80mm(L*W)
Motor Protection Class IP54
Application Swing Gate, Flap Gate, Speed Gate, Sliding Gate
Communication Interface RS232
Input Voltage DC 24V
Driver Rated Voltage DC24V
Operating Temperature -20℃~+55℃
Power Supply current 6.5A
Type DC Servo Driver
Support RS232

Applications:

Jiayu Mechatronic Speed Gate Drive – MBC2406

Jiayu Mechatronic MBC2406 Speed Gate Drive is a DC servo driver with feedback incremental encoder with HALL. It is suitable for swing gates, flap gates, speed gates and sliding gates. Its motor protection class is IP54, power consumption is 150W, input voltage is DC24V. It is equipped with digital I/O 4 IN 3 OUT, optocouplers isolation, 3 phase brushless motor, and built-in PID algorithm.

The minimum order quantity is 2 and the delivery time is within 7 working days. Payment terms are TT and Jiayu Mechatronic can supply 5000PCS/WEEK.

Jiayu Mechatronic MBC2406 Speed Gate Drive is suitable for swing gates, flap gates, speed gates and sliding gates. It is equipped with feedback incremental encoder with HALL, digital I/O 4 IN 3 OUT, optocouplers isolation, 3 phase brushless motor, and built-in PID algorithm which makes it suitable for fast-response applications.

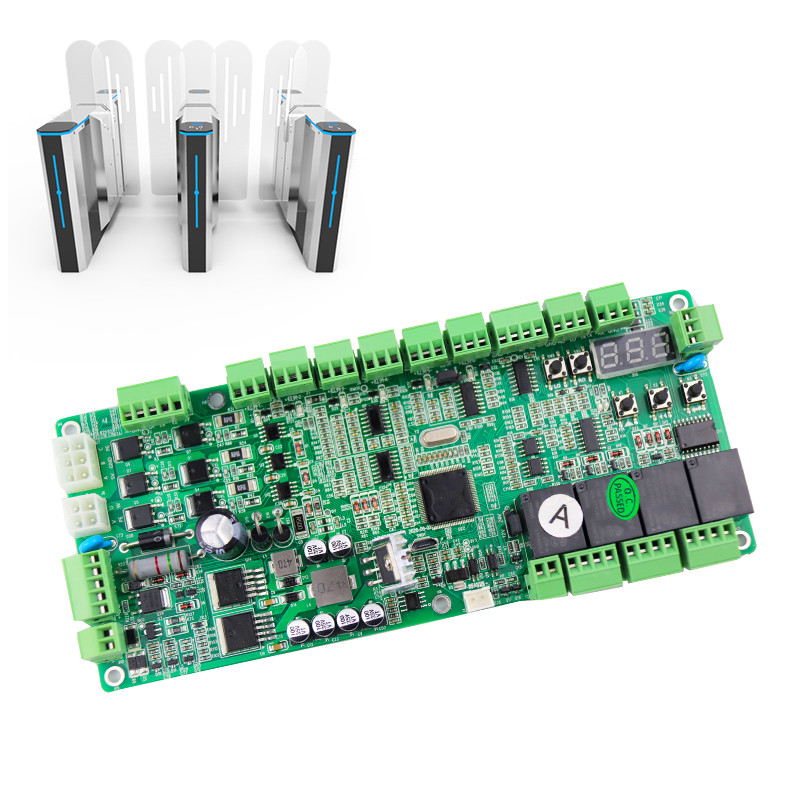

Speed Gate Drive Rated Current 8A Input Voltage DC 24V Control Board For Turnstile Gate 0

Customization:

Speed Gate Drive

Brand Name: Jiayu Mechatronic

Model Number: MBC2406

Place of Origin: China

Minimum Order Quantity: 2

Delivery Time: within 7 working days

Payment Terms: TT

Supply Ability: 5000PCS/WEEK

Application: Swing Gate, Flap Gate, Speed Gate, Sliding Gate

Input Voltage: DC 24V

Power Consumption: 150W

Driver Rated Voltage: DC24V

Motor Protection Class: IP54

Product name servo driver, Support RS232

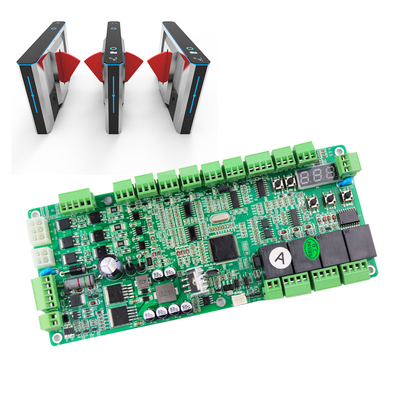

Speed Gate Drive Rated Current 8A Input Voltage DC 24V Control Board For Turnstile Gate 1

Support and Services:

Speed Gate Drive Technical Support and Service

At Speed Gate Drive, we are committed to providing our customers with the best technical support and service possible. We understand how important it is for our customers to have access to our knowledgeable and experienced staff, and we are here to help you get the most out of our products.

Our technical support team is available to answer any questions that you may have about our products. We can provide technical support on installation, operation, troubleshooting, and repair. We also offer online support and can provide helpful advice on choosing the right product for your needs.

In addition to providing technical support, we also offer a range of services to help keep your Speed Gate Drive products running smoothly. Our experienced technicians can perform maintenance and repair on your products to ensure that they are running at peak performance. We also offer a range of upgrades and customizations, so you can get the most out of your Speed Gate Drive products.

If you have any questions or concerns about our products or services, please do not hesitate to contact us. We are always here to help and will do our best to make sure that you are satisfied with our products and services.



FAQ:

Q1: What is the Brand Name of the Speed Gate Drive?

A1: The Brand Name of the Speed Gate Drive is Jiayu Mechatronic.

Q2: What is the Model Number of the Speed Gate Drive?

A2: The Model Number of the Speed Gate Drive is MBC2406.

Q3: What is the Place of Origin of the Speed Gate Drive?

A3: The Place of Origin of the Speed Gate Drive is China.

Q4: What is the Minimum Order Quantity for the Speed Gate Drive?

A4: The Minimum Order Quantity for the Speed Gate Drive is 2.

Q5: What is the Delivery Time for the Speed Gate Drive?

A5: The Delivery Time for the Speed Gate Drive is within 7 working days.
