Commercial Building Swing Gate Control Board with 12 Pairs Infrared Sensors Interface

Brand Name:	CSJY
Model Number:	JMC1810
MOQ:	2
Price:	Negotiate
Packaging Details:	cartons
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Input Voltage:

DC 24 ~ 30V

Rated/peak Current:

Single-sided 3A (depending On The Light Load Decision)

Adapted Motor:

Low-voltage Servo Motors

Encoder Feedback:

Incremental (pulse Type)

Communication Interface:

RS232 / RS485 / CAN

Hardware Protection:

 Over-current Protection Short-circuit Protection Reverse Connection Protection

Light Output:

Welcome Light, Pass Light, RGB Tricolor Light, Status Light

Sound Output:

Speaker (8W 4Ω), Buzzer (12V 100mA)

Infrared Input:

PNP|NPN NO|NC 12V|24V 12 Independent IR Interfaces On Board External IR Expansion Board Available

Input And Output Signals:

2 Door Openers + 3 Expansion Inputs/outputs

Hardware Protection:

Protection Under-voltage, Over-current, Input Reversal

Multi-function Keys:

Opening Doors, Setting Zero, Restoring Defaults, Etc.

Operating Temperature:

-20°C ~ 55°C

Supply Ability:

5000pcs/month

Product Description

Commercial Building Swing Gate Control Board with 12 Pairs Infrared Sensors Interface

Product description

The Commercial Building Swing Gate Control Board with 12 Pairs Infrared Sensors Interface is an advanced access control system designed to manage and automate swing gates in high-traffic commercial environments. Equipped with interfaces for up to 12 pairs of infrared sensors, this control board ensures superior safety, precision, and operational efficiency. It supports a wide range of functions including bi-directional gate control, anti-tailgating logic, auto-close timers, emergency mode, and remote operation compatibility.

Technical parameter

Input Voltage	DC 24 ~ 30V
Reference Current	Single-sided 3A (depending on the light load decision)
Infrared sensor input	PNP\|NPN NO\|NC 12V\|24V 12 independent IR interfaces on board External IR expansion board available
Communication Interface	RS232/RS485/CAN
Sound and light control	Welcome light, pass light, RGB tricolor light, status light Speaker (8W 4Ω), Buzzer (12V 100mA)
Hardware Protection	Under-voltage, over-current, input reversal
Passage detection	Tailgating Breaking the gate Retrograde Detention
Firefighting interface	On-board NPN input

Key Advantages

High Safety & Precision: With support for up to 12 infrared sensor pairs, the system provides accurate detection for pedestrian movement, preventing tailgating and ensuring user safety.
Flexible Integration: Compatible with various access control systems including RFID, QR code, facial recognition, and fingerprint scanners.
Stable Performance: Built with industrial-grade components to ensure consistent performance in demanding commercial applications.
Customizable Logic Settings: Adjustable parameters for opening/closing speed, time delays, and sensor sensitivity provide full control over operation.
Remote Management: Can be integrated with remote control or centralized building management systems for streamlined operation.
Emergency Support: Features emergency override and failsafe/failsecure modes in case of power loss or fire alarm activation.

Application

This control board suitable for swing gate, speed gate, sliding gate hign-end turnstile gate's application.

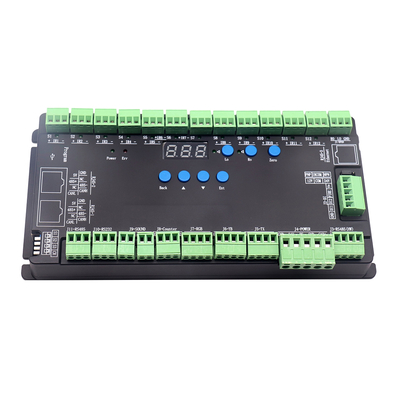

Commercial Building Swing Gate Control Board with 12 Pairs Infrared Sensors Interface 0

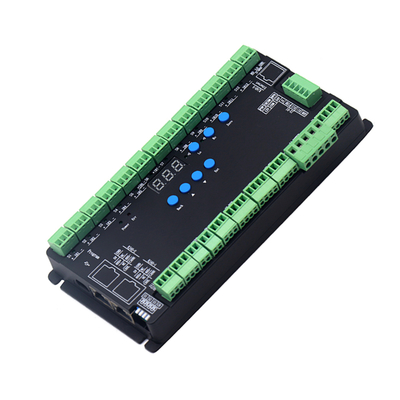

Commercial Building Swing Gate Control Board with 12 Pairs Infrared Sensors Interface 1

RFQ

1. How about your company's actual strength?
We have more than 100 employees, a R&D group with 50 people,1 office and 1 factories. Factories and office buildings are larger than 1500 square meters.

2. How about the payment method?

Standard products: 30% deposit, 70% balance payment before shipment.

3. How long is your warranty period?

One-year guarantee & Life-time technology support.

4. How do you do after-sale service?
We provide life-time technology support online, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

5. How long is your warranty period?
One-year guarantee & Life-time technology support

For more further information welcome to contact us, whatsapp +86 15218146199
