High Security Subway Station Swing Gate Infrared Sensor Support 24 Pairs Sensors Input Independently

Brand Name:	CSJY
Model Number:	JMC1810
MOQ:	2
Price:	Negotiate
Packaging Details:	cartons
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Input Voltage:

DC 24 ~ 30V

Rated/peak Current:

Single-sided 3A (depending On The Light Load Decision)

Adapted Motor:

Low-voltage Servo Motors

Encoder Feedback:

Incremental (pulse Type)

Communication Interface:

RS232 / RS485 / CAN

Hardware Protection:

 Over-current Protection Short-circuit Protection Reverse Connection Protection

Light Output:

Welcome Light, Pass Light, RGB Tricolor Light, Status Light

Sound Output:

Speaker (8W 4Ω), Buzzer (12V 100mA)

Infrared Input:

PNP|NPN NO|NC 12V|24V 12 Independent IR Interfaces On Board External IR Expansion Board Available

Input And Output Signals:

2 Door Openers + 3 Expansion Inputs/outputs

Hardware Protection:

Protection Under-voltage, Over-current, Input Reversal

Multi-function Keys:

Opening Doors, Setting Zero, Restoring Defaults, Etc.

Operating Temperature:

-20°C ~ 55°C

Supply Ability:

5000pcs/month

Highlight:

Swing Gate Infrared Sensor

Subway Station Gate Infrared Sensor

Input Independently Infrared Sensor

Product Description

High Security Subway Station Swing Gate Infrared Sensor Support 24 Pairs Sensors Input Independently

Product description

The High Security Subway Station Swing Gate is an advanced access control solution designed to meet the stringent security and efficiency requirements of modern metro systems. This gate system is equipped with independent support for 24 pairs of infrared sensor inputs, enabling highly accurate detection of passenger movement, tailgating, reverse entry, and intrusion attempts. Its robust control architecture allows for seamless integration with ticketing systems, biometric authentication, and real-time monitoring platforms. Designed for 24/7 operation in high-traffic environments, this swing gate ensures safety, precision, and reliability at every level.

Technical parameter

Input Voltage	DC 24 ~ 30V
Reference Current	Single-sided 3A (depending on the light load decision)
Infrared sensor input	PNP\|NPN NO\|NC 12V\|24V 12 independent IR interfaces on board External IR expansion board available
Communication Interface	RS232/RS485/CAN
Sound and light control	Welcome light, pass light, RGB tricolor light, status light Speaker (8W 4Ω), Buzzer (12V 100mA)
Hardware Protection	Under-voltage, over-current, input reversal
Passage detection	Tailgating Breaking the gate Retrograde Detention
Firefighting interface	On-board NPN input

Features

Independent Support for 24 Pairs of Infrared Sensors
Each infrared sensor pair operates independently for accurate, real-time pedestrian detection.
High Security Logic Control
Effectively detects tailgating, reverse intrusion, and unauthorized access with high precision.
Bidirectional Passage Management
Supports controlled entry and exit with customizable access permissions and logic flows.
Fast Response Swing Mechanism
High-speed motor control ensures quick opening/closing with smooth motion and minimal noise.
Modular Sensor Configuration
Flexible layout of IR sensors accommodates various installation environments and gate sizes.
Multi-Level Anti-Pinch Protection
Combines mechanical, infrared, and current-detection safety mechanisms to prevent injury.
Real-Time Data Output & Alarm Feedback
Instantly transmits abnormal events (tailgating, intrusion, loitering) to the central system or alarm panel.
Multiple Interface Options
Supports RS485, RS232, TCP/IP, Wiegand, and relay interfaces for seamless system integration.
Durable Industrial-Grade Components
Engineered for high-frequency operation with long lifespan and high MTBF (Mean Time Between Failures).
Remote Monitoring & Firmware Upgrade
Supports centralized remote diagnostics and OTA firmware updates for ease of maintenance.

Application

This control board suitable for swing gate, speed gate, sliding gate hign-end turnstile gate's application.

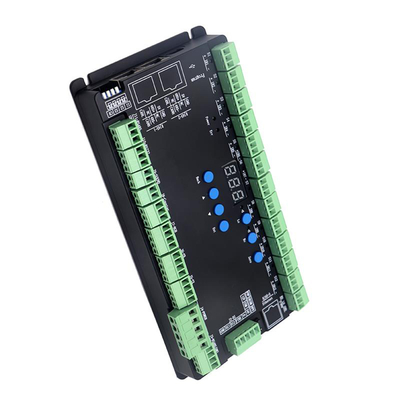

High Security Subway Station Swing Gate Infrared Sensor Support 24 Pairs Sensors Input Independently 0

High Security Subway Station Swing Gate Infrared Sensor Support 24 Pairs Sensors Input Independently 1

RFQ

1. How about your company's actual strength?
We have more than 100 employees, a R&D group with 50 people,1 office and 1 factories. Factories and office buildings are larger than 1500 square meters.

2. How about the payment method?

Standard products: 30% deposit, 70% balance payment before shipment.

3. How long is your warranty period?

One-year guarantee & Life-time technology support.

4. How do you do after-sale service?
We provide life-time technology support online, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

5. How long is your warranty period?
One-year guarantee & Life-time technology support
