Turnstile Gate Controller
>
Tripod Turnstile Gate Controller Support 6 Pairs Sensor Interface Input Independently
All Category

DC Servo Motor

AGV Servo Motor

Robot Servo Motor

DC Servo Drive

DC Servo Motor Drive

Turnstile Gate Mechanism

Speed Gate Motors

High Torque DC Servo Motor

Peristaltic Pump Motor

Barrier Gate Motor

Logistic Motor

Servo Motor For Solar Tracker

24V DC Servo Motor

Small DC Servo Motor

AC Servo Motor Driver

Speed Gate Drive

Electric Forklift Controller

Electric Forklift Drive Motor

Turnstile Gate Controller
Contact Us
Ms. Chilli
Chillijy@jiayume.com
15218146199
WeChat 15218146199
Contact Now
Tripod Turnstile Gate Controller Support 6 Pairs Sensor Interface Input Independently
  • name
  • name
  • name

Tripod Turnstile Gate Controller Support 6 Pairs Sensor Interface Input Independently

Brand Name: CSJY
Model Number: MBC2406
MOQ: 2pcs
Price: Negotiate
Packaging Details: cartons
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Features:
Long Life, MCBF More Than 6 Million Times
Input Power Supply:
DC24V
Adaptor Motor:
DC Brushless Motor Below 60W With 2400-line Position Feedback
DC Brushless Motor Below 60W With 2400-line Position Feedback:
RS232 Serial Communication, Supporting Modbus Protocol
Infrared Sensor:
6 Independent Interfaces, PNP, NPN Normally Open, Open Collector Type
Voice Output:
External 8W 4Ω Speaker
Power-off:
DC12V Battery, Or Optional Super Capacitor Module
Anti-pinch Protection:
Current+position Double Detection, Adjustable Sensitivity
Application:
Swing Gate, Speed Gate, Tripod Turnstile Gate, Flap Gate
Working Environment:
-20℃ ~ 55℃, Humidity Below 90% (no Condensation)
Supply Ability:
5000pcs/month
Highlight:

Tripod Turnstile Gate Controller

,

independently Tripod Turnstile Gate Controller

,

sensor interface Tripod Turnstile Gate Controller

Product Description

Tripod Turnstile Gate Controller Support 6 Pairs Sensor Interface Input Independently


Product Description

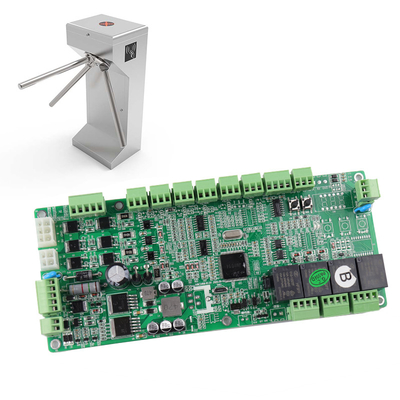

The Tripod Turnstile Gate Controller is a compact and intelligent control board specifically designed for tripod turnstile gates. It supports 6 pairs of sensor interface inputs independently, enabling precise detection and smooth bi-directional access control. Built for high-traffic environments, this controller integrates seamlessly with various access systems such as RFID readers, fingerprint scanners, and QR code terminals. Its modular design and stable performance make it ideal for modern pedestrian entrance management.


Specification

Input power supply

DC24V, dual power connection, 150W/6.5A on one side is recommended; Single power connection, 300W recommended

Adaptor motor

DC brushless motor below 60W with 2400-line position feedback

Communication mode

 RS232 serial communication, supporting Modbus protocol

Infrared sensor

6 independent interfaces, PNP, NPN normally open, open collector type

Voice output

external 8W 4Ω speaker

Working environment

-20℃ ~ 55℃, humidity below 90% (no condensation)

Power-off

DC12V battery, or optional super capacitor module


Key Features:

  • 6 Pairs of Independent Sensor Inputs: Ensures accurate passage detection, anti-tailgating, and timely response.

  • Bi-Directional Passage Control: Manages entry and exit directions separately with reliable logic control.

  • Wide Access System Compatibility: Supports integration with card readers, biometric devices, face recognition systems, and more.

  • Smooth and Safe Operation: Supports anti-pinch, auto-reset, and alarm triggering for unauthorized access.

  • LED Indicator & Sound Prompt Support: Easily guides users and alerts on abnormal usage or failures.

  • DC 12V/24V Power Supply Compatibility: Flexible voltage options for different installation environments.

  • ODM Customization Available: Firmware and hardware can be adapted to specific project needs.

Tripod Turnstile Gate Controller Support 6 Pairs Sensor Interface Input Independently 0


Applications:

  • swing gate

  • tripod turnstile

  • flap gate

  • sliding gate

  • speed gate
