24V 40W 3A Low-voltage Brushless Servo Motor, Suitable For Access Control Gates

Brand Name:	CSJY
Model Number:	GMBS70ZF-40A-1836-V1
MOQ:	2sets
Price:	Negotiate
Packaging Details:	Cartons
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Features:

Fast Opening And Sensitive Anti-pinch

Application:

Swing Gate, Speed Gate, Sliding Gate

Rated Voltage:

DC24V

Rated Power:

Rated Current:

Rated Speed :

1800rpm

Ratio:

Output Torque:

0.21Nm

Supply Ability:

5000sets/month

Product Description

24V 40W 3A Low-voltage Brushless Servo Motor, Suitable For Access Control Gates

Features

High-Efficiency BLDC Motor: Brushless DC technology offers superior performance, higher torque, and a longer lifespan than brushed alternatives, with no carbon brushes to replace.
Robust Planetary Gearbox: The high-precision 1:36 reduction ratio gearbox provides high output torque, excellent durability, and low backlash for reliable and accurate movement.
Integrated Servo Control: Comes with a matching servo controller for precise speed and position control, enabling smooth starts and stops to reduce mechanical stress.
High Torque Density: Delivers exceptional torque (approx. 4-5 Nm) from a compact form factor, perfect for space-constrained installations.
Quiet and Smooth Operation: Ideal for residential and commercial environments where noise reduction is important.
Reliable & Maintenance-Free: Sealed construction and brushless design ensure consistent operation with minimal maintenance, even in harsh outdoor conditions.
Thermal Protection: Built-in safeguards protect the motor from overheating under heavy loads or continuous operation.

Applications

Swing gate
Speed gate
Tripod turnstile gate
Sliding gate
Flap gate

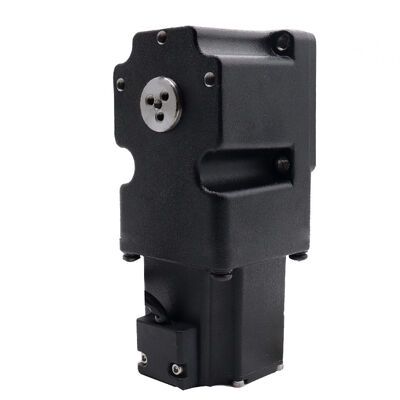

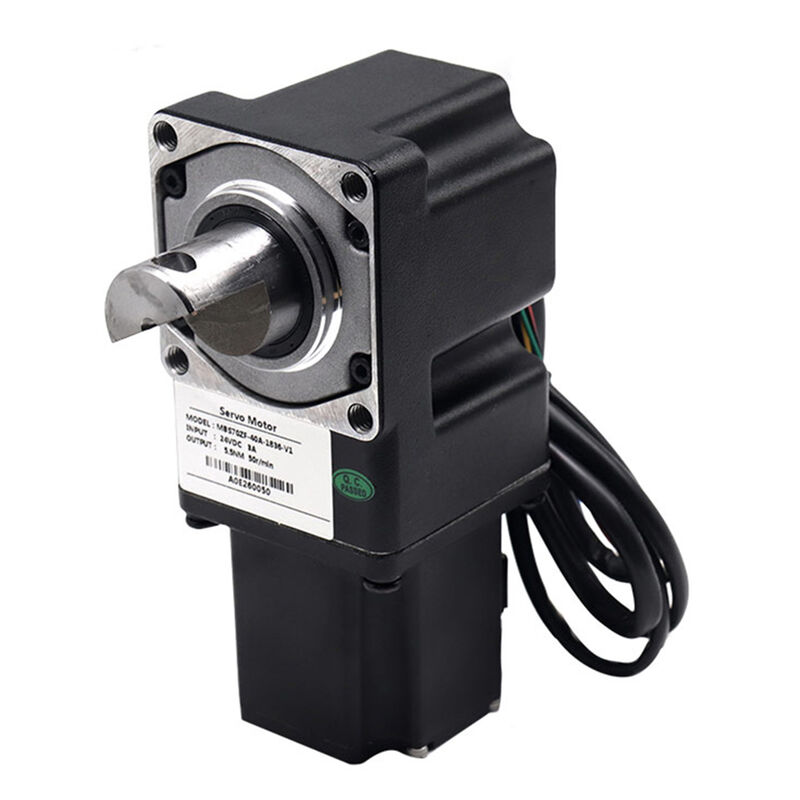

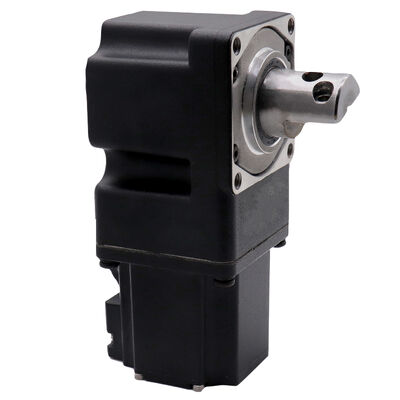

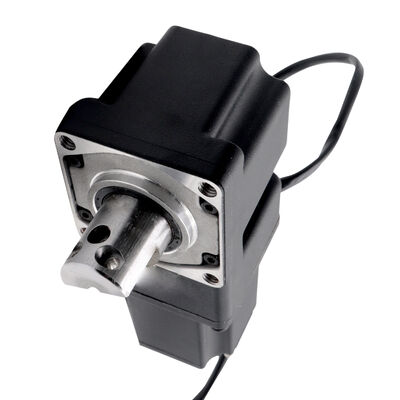

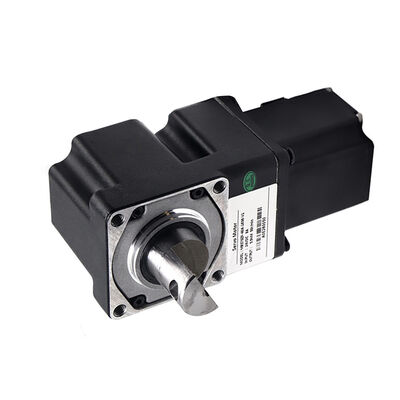

24V 40W 3A Low-voltage Brushless Servo Motor, Suitable For Access Control Gates 1

24V 40W 3A Low-voltage Brushless Servo Motor, Suitable For Access Control Gates 2

24V 40W 3A Low-voltage Brushless Servo Motor, Suitable For Access Control Gates 3

24V 40W 3A Low-voltage Brushless Servo Motor, Suitable For Access Control Gates 4

Model name	GMBS70ZF-40A-1836-V1
Nominal voltage	24V DC
Rated current	3A
Speed	1800rpm±10%
Rated torque	0.21N.m
Encoder resolution	2400 lines
Protection level	IP54
Ratio	1:36
