Speed Gate Drive

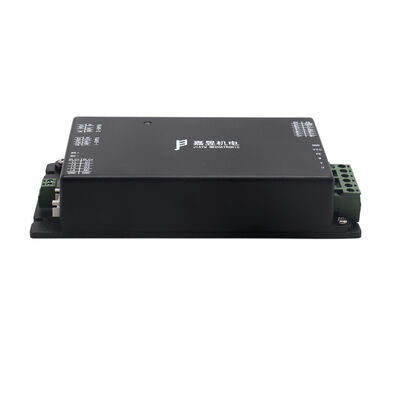

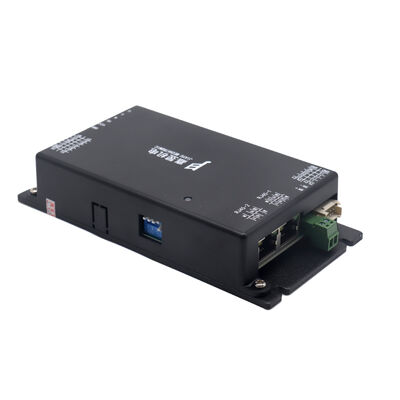

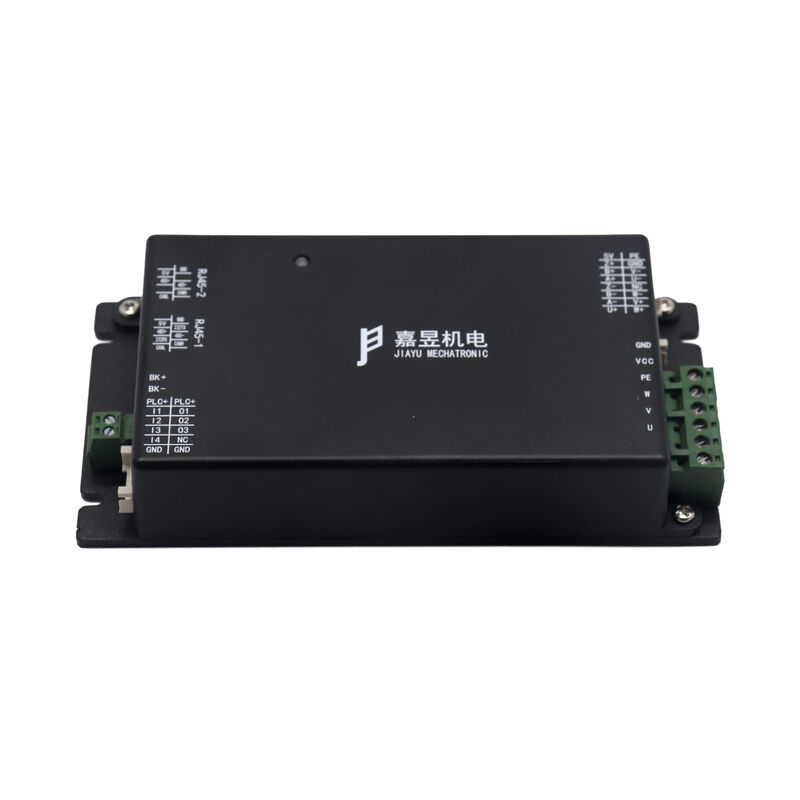

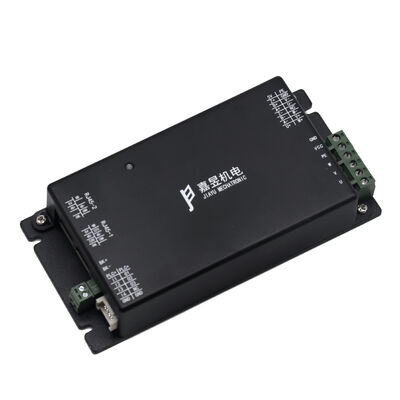

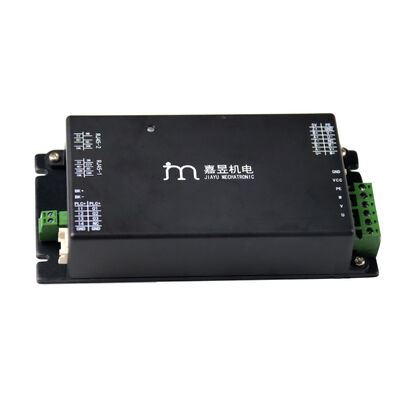

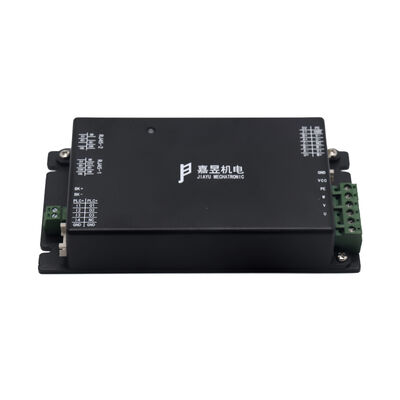

24V DC 8A Incremental Encoder Servo Driver for Speed Gate and Turnstile Applications

All Category

Turnstile Gate Controller

Ms. Chilli

Chillijy@jiayume.com

15218146199

15218146199

Contact Now

24V DC 8A Incremental Encoder Servo Driver for Speed Gate and Turnstile Applications

Brand Name:	CSJY
Model Number:	GEPS2408-AD
MOQ:	1
Price:	according to quantities
Packaging Details:	carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Input Voltage:

24 VDC / 48VDC

Rated/Peak Current:

8 / 24 Arms

Feedback:

HALLU、HALLV、HALLW、EA、EB、EZ Incremental Encoder, +5V Power Supply Support Differential Input; Support 1000, 2400, 2500 Resolution Position Feedback

Communication:

RJ45, Including RS232, RS485, CAN

Hardware Protection:

Power-input Reverse Connection, Phase Short Circuit, 5V Short Circuit, Brake Output Short Circuit Protection Low-voltage, Over-voltage, Over-current, Overheating

Usage Temperature:

-20～55℃, Not Frozen, The Average Load Should Not Exceed 80% Of The Rated Load;

Usage Humidity:

Below 90% RH, No Condensation

Application:

Swing Gate, Speed Gate, Sliding Gate Or Flap Gate

Supply Ability:

5000+pcs/month

Highlight:

24V DC servo driver

pedestrian turnstile servo driver

channel gate motor driver

Product Description

Low Voltage Incremental Encoder DC Servo Driver Specially Designed for Turnstile Gates

24V DC 8A Incremental Encoder Servo Driver for Speed Gate and Turnstile Applications 0

24V DC 8A Incremental Encoder Servo Driver for Speed Gate and Turnstile Applications 1

24V DC 8A Incremental Encoder Servo Driver for Speed Gate and Turnstile Applications 2

24V DC 8A Incremental Encoder Servo Driver for Speed Gate and Turnstile Applications 3

24V DC 8A Incremental Encoder Servo Driver for Speed Gate and Turnstile Applications 4

Application Features:

① Integration of industry-leading channel movement control logic algorithm；

② The Open speed is fast up to 0.3 seconds；

③ Forced Prevented is responsive,locked in small angle；

④ Built-in special circuit module for breaking violence.

⑤ Sensorless switch designed, homing automatically when power-on. Door closing position can be set precisely.

24V DC 8A Incremental Encoder Servo Driver for Speed Gate and Turnstile Applications 5

24V DC 8A Incremental Encoder Servo Driver for Speed Gate and Turnstile Applications 6

Support Functions:

① Support RS232, RS485 and CAN, provide Modbus communication protocol；

② PC Monitor software with oscilloscope.

③ Firmware Download tools via Serial port;

④ Hand-held LED / LCD Tool box;

Specification:

Input Voltage	24 VDC / 48VDC
Rated/Peak Current	8 / 24 Arms
Overload	Load=200%(16Arms),overload time Maximum 10S
Brake Unit	Built-in brake resistance, rated 12W
Feedback	HALLU,HALLV,HALLW,EA,EB,EZ incremental encoder, +5V power supply Support differential input; Support 1000, 2400, 2500 resolution position feedback;
Brake Control	1 input NPN type brake control output, maximum 1.5A, 24VDC PWM output when 48VDC input
Hardware Protection	Power-input reverse connection, phase short circuit, 5V short circuit, brake output short circuit protection Low-voltage, Over-voltage, Over-current, Overheating
Level of Protection	IP20
