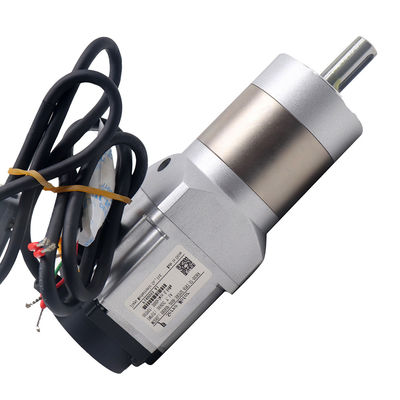

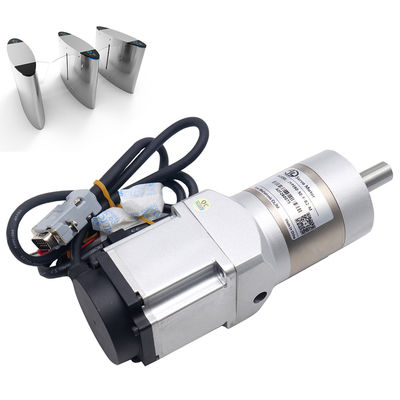

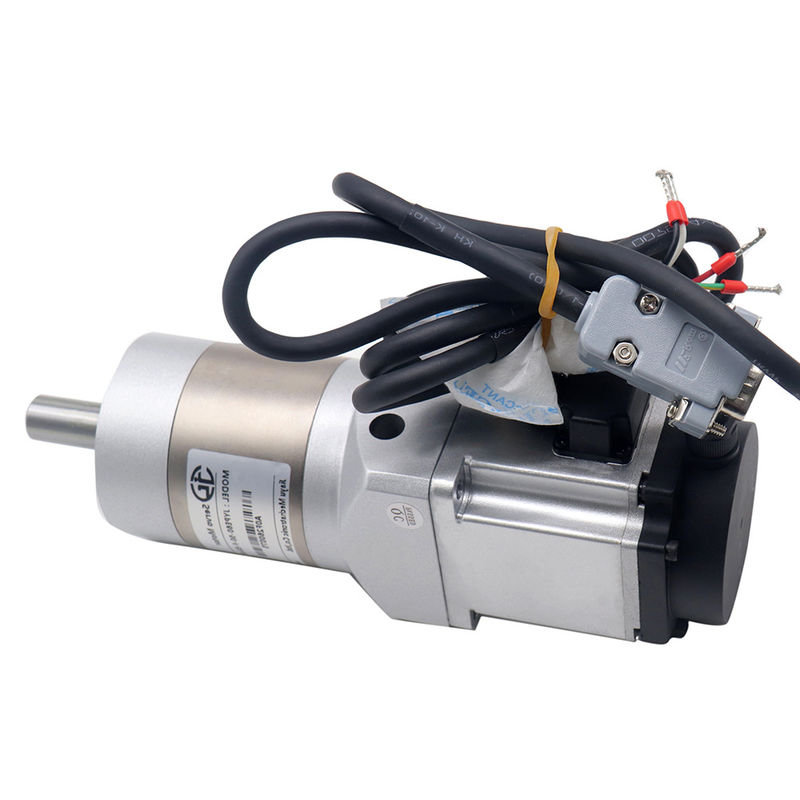

DC36v 200W Servo Motor With Planetary Gearbox Output Torque 32nm

Product Description

Designed for applications demanding high torque in a compact, low-voltage form factor, this DC36V 200W servo motor is integrated with a precision planetary gearbox to deliver an impressive 32 Nm output torque. The combination of a high-efficiency brushless DC servo motor and a low-backlash planetary gear train provides an optimal solution for robotics, automation equipment, mobile machinery, and industrial actuation systems where space is limited but torque requirements are significant.

Operating at 36V DC, this motor falls within the safe low-voltage range, making it ideal for battery-powered applications, mobile robots, AGVs, and equipment requiring compliance with low-voltage safety standards. The 200W motor provides a strong power-to-weight ratio, while the integrated planetary gearbox multiplies the output torque without the need for external reduction components, simplifying mechanical design and reducing assembly time.

Specification

Key Features

• High Output Torque: Delivers 32 Nm continuous torque from a compact 200W servo motor + planetary gearbox package, eliminating the need for bulky external reducers.

• Low-Voltage 36V DC Operation: Safe for mobile and battery-powered equipment; compatible with 36V lithium battery packs and industrial DC power supplies.

• Integrated Planetary Gearbox: Precision planetary gear train with high torque density, minimal backlash (≤15 arcmin), and high efficiency (≥90% per stage).

• Closed-Loop Servo Control: Equipped with an incremental encoder (hall sensors optional) for precise speed, position, and torque control via a compatible servo drive.

• Compact & Lightweight: Integrated design reduces axial length and overall weight compared to separate motor + gearbox assemblies, simplifying machine design.

Typical Applications

• Automatic guided vehicles (AGVs) – drive wheels or steering actuators

• Mobile robotics – robotic, lift mechanisms, AGV/AMR

• Industrial automation – rotary tables, indexing units, conveyor drives

• Solar tracking systems – high torque, low-speed positioning

• Medical equipment

• Packaging machinery

• Electric tooling – battery-powered torque tool
