DC Servo Motor

Low Voltage DC36v 200W 3000RPM Servo Motor With Planetary Gearbox Output Torque 32nm for Swing Gate Turnstile

All Category

Turnstile Gate Controller

Ms. Chilli

Chillijy@jiayume.com

15218146199

15218146199

Contact Now

Low Voltage DC36v 200W 3000RPM Servo Motor With Planetary Gearbox Output Torque 32nm for Swing Gate Turnstile

Brand Name:	CSJY
Model Number:	EBS60F-200B-30CP5Z- B7KT-ST-00+JYPNE60-50-F-B2-M
MOQ:	2
Price:	Negotiate
Packaging Details:	carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Document:

Input Voltage:

DC 24

Rated Voltage:

36 VDC

Rated Power:

200 W

Motor Rated Torque:

0.64 Nm

Backlash:

≤ 15 Arcmin

Optional Feedback:

Incremental Encoder

Ambient Temperature:

-20°C To +55°C

Gearbox Efficiency:

≥ 90% (per Stage, Total Approx. 90-92% For Typical Ratio)

Gearbox Type:

Planetary Gearbox

Application:

Swing/speed Turnstile Gates

Supply Ability:

Product Description

Low Voltage DC36v 200W 3000RPM Servo Motor With Planetary Gearbox Output Torque 32nm for Swing Gate Turnstile

Product Description

Designed for applications demanding high torque in a compact, low-voltage form factor, this DC36V 200W servo motor is integrated with a precision planetary gearbox to deliver an impressive 32 Nm output torque. The planetary gearbox offers high efficiency (typically ≥90% per stage), low backlash (<15 arcmin), and smooth, quiet operation. The output torque of 32 Nm is sustained across the motor's rated speed range, ensuring reliable performance for lifting, positioning, or driving loads. With an incremental encoder (or optional absolute encoder) for closed-loop control, this servo system delivers precise speed regulation, accurate positioning, and dynamic responsiveness.

Specification

Rated power	200w
Rated voltage	dc36v
Rated current	5.5A
Rated torque	0.64nm
Rated speed	3000rpm
Number of poles	5
Gear ratio	1:50

Key Features

High Output Torque: Delivers 32 Nm continuous torque from a compact 200W servo motor + planetary gearbox package, eliminating the need for bulky external reducers.
Low-Voltage 36V DC Operation: Safe for mobile and battery-powered equipment; compatible with 36V lithium battery packs and industrial DC power supplies.
Integrated Planetary Gearbox: Precision planetary gear train with high torque density, minimal backlash (≤15 arcmin), and high efficiency (≥90% per stage).
Closed-Loop Servo Control: Equipped with an incremental encoder (hall sensors optional) for precise speed, position, and torque control via a compatible servo drive.
Compact & Lightweight: Integrated design reduces axial length and overall weight compared to separate motor + gearbox assemblies, simplifying machine design.

Typical Applications

Swing gate
Speed gate

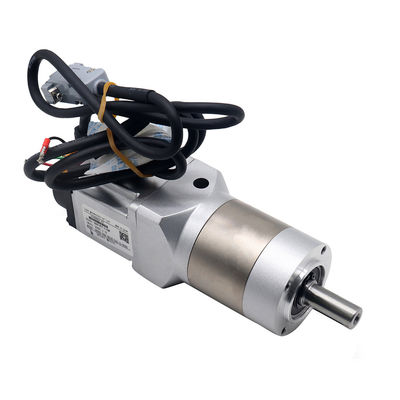

Low Voltage DC36v 200W 3000RPM Servo Motor With Planetary Gearbox Output Torque 32nm for Swing Gate Turnstile 0

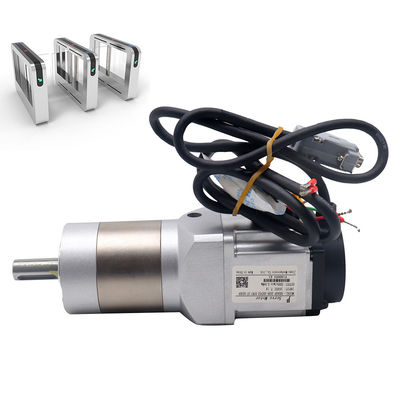

Low Voltage DC36v 200W 3000RPM Servo Motor With Planetary Gearbox Output Torque 32nm for Swing Gate Turnstile 1
