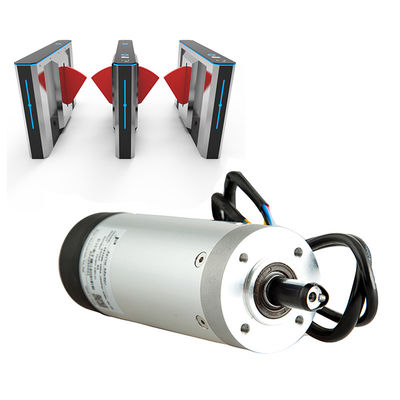

DC24V 100w Servo Motor Integrated with Gearbox for Airport Swing Gate

Product Description

The incremental encoder provides real-time feedback on motor shaft position and speed, enabling the servo drive to perform closed-loop control. This allows for:

• Precise control of opening/closing angles

• Adjustable acceleration/deceleration curves (soft start/stop)

• Obstacle detection (anti-crushing safety)

• Consistent operation across wide temperature ranges

Rated at 100W and typically operating at 24V, this motor is a low-voltage, safe, and energy-efficient solution for automated speed lanes in airports, metro stations, office lobbies, and commercial buildings. The robust construction, including sealed bearings and weather-resistant housing (IP65), ensures reliable performance in both indoor and semi-outdoor environments.

Technical Specifications

Key Features

• Integrated Gearbox: Precision planetary or worm gearbox integrated into the motor housing, offering high torque density and zero maintenance. Eliminates separate gearbox mounting and alignment issues.

• Suitable for 1.5m Glass Panels: Delivers sufficient torque (23 Nm after reduction) to smoothly drive glass door panels of up to 1.5m height and 15–25 kg weight, even under varying friction or light wind loads.

• Incremental Encoder Feedback: High-resolution encoder (9600 PPR) enables precise speed and position control. Supports bi-directional operation and real-time obstacle detection for anti-crushing safety compliance.

• Low-Voltage Operation: Available in 24V DC – safe for public areas and compatible with battery/UPS backup systems.

• Soft Start/Stop & Speed Profiling: The servo control system allows programmable acceleration and deceleration curves, minimizing mechanical stress on the glass panel and hinges, and ensuring quiet, smooth motion.

• Compact Integrated Design: Motor, encoder, and gearbox in one housing reduces overall length and simplifies cable management – ideal for narrow speed lane pedestals.

• Durable Construction: Aluminum housing, stainless steel shafts, and IP56 protection against dust and splashing water. Operating temperature range -20°C to +55°C.

• Silent Operation: Optimized gear design and BLDC commutation result in noise levels below 55 dB at 1 meter, suitable for noise-sensitive environments like libraries or hospitals.
