DC24V Servo Driver Matching Servo Motor for Swing Gate Turnstile

Brand Name:	CSJY
Model Number:	EPS2408-AD-R-N-T
MOQ:	2
Price:	Negotiate
Packaging Details:	carton

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Document:

Input Voltage:

24 VDC / 48VDC

Rated/Peak Current:

8 / 24 Arms

Overload:

Load=200%(16Arms)，overload Time Maximum 10S

Brake Unit:

Built-in Brake Resistance, Rated 12W

Feedback:

HALLU、HALLV、HALLW、EA、EB、EZ Incremental Encoder, +5V Power Supply Support Differential Input; Support 1000, 2400, 2500 Resolution Position Feedback

Communication:

RJ45, Including RS232, RS485, CAN

Hardware Protection:

Power-input Reverse Connection, Phase Short Circuit, 5V Short Circuit, Brake Output Short Circuit Protection Low-voltage, Over-voltage, Over-current, Overheating

Usage Temperature:

-20～55℃, Not Frozen

Level Of Protection:

Protection IP20

Support Functions:

Support RS232, RS485 And CAN, Provide Modbus Communication Protocol

Supply Ability:

Product Description

DC24V Servo Driver Matching Servo Motor for Swing Gate Turnstile

Product Description

The EPS2408 integrates advanced closed-loop vector control (FOC – Field Oriented Control) technology, enabling silent operation, minimal vibration, and precise torque/speed/position regulation. It supports multiple command modes (I/O, RS232, RS485 Modbus RTU) and features programmable acceleration/deceleration profiles, adjustable soft start/stop, and real-time obstacle detection for anti-crushing safety compliance.

Built with robust industrial-grade components, the driver includes comprehensive protection against overcurrent, overvoltage, undervoltage, short circuit, and overtemperature, ensuring reliable 24/7 operation in demanding public environments.

Technical Specifications

Feedback Devices	Incremental encoder
Control Modes	Speed control, Position control, Torque control
Communication	RS232 (dedicated port), RS485 (Modbus RTU, baud rate up to 115200)
Protection Features	Overcurrent, overvoltage, undervoltage, short circuit (phase-to-phase/phase-to-ground), overtemperature, motor stall
Supported Motors	100w 200w servo motor
Continuous Current	8A
Certifications	CE, RoHS (compliant)

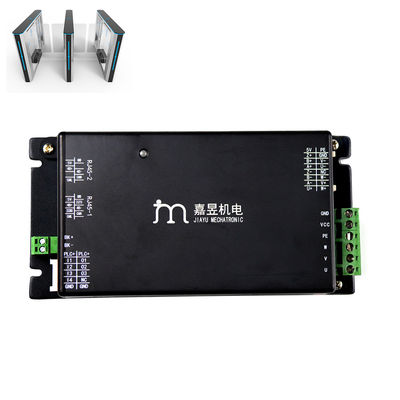

DC24V Servo Driver Matching Servo Motor for Swing Gate Turnstile 0

Key Features

Low-Voltage Safe Operation: 24V DC power input meets low-voltage safety standards, compatible with battery/UPS backup systems and suitable for public access areas.
High Peak Current Capability: 8A continuous / 15A peak current enables fast motor acceleration and deceleration, achieving gate opening/closing times as low as 0.3–0.8 seconds.
Advanced Servo Control: Implements Field Oriented Control (FOC) and sinusoidal commutation for smooth, silent, and vibration-free motor operation – critical for glass wing speed gates.
Multiple Feedback Support: Compatible with incremental encoders (A/B/Z, up to 2500 PPR), Hall sensors, and optional absolute encoders.
Programmable Motion Profiles: Adjustable speed, acceleration/deceleration curves, positioning accuracy, and soft start/stop parameters via DIP switches or serial communication.
Integrated Obstacle Detection: Real-time torque/current monitoring and encoder stall detection automatically reverses or stops the gate upon obstruction, ensuring pedestrian safety (anti-crushing).

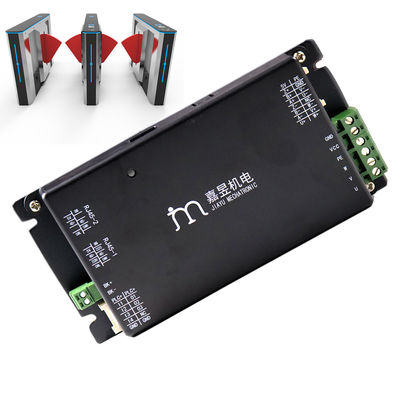

DC24V Servo Driver Matching Servo Motor for Swing Gate Turnstile 1

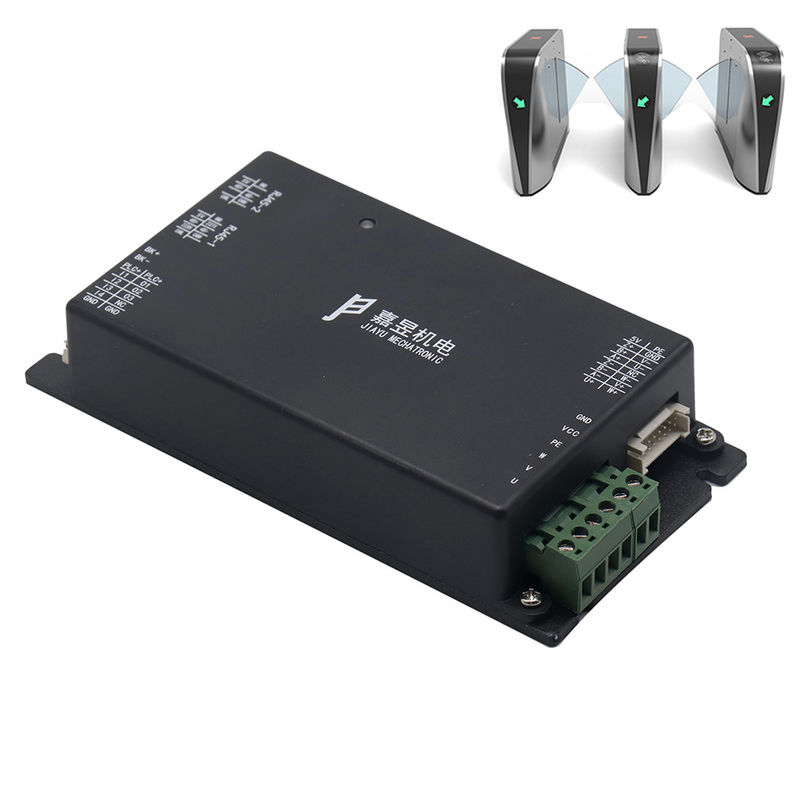

DC24V Servo Driver Matching Servo Motor for Swing Gate Turnstile 2
